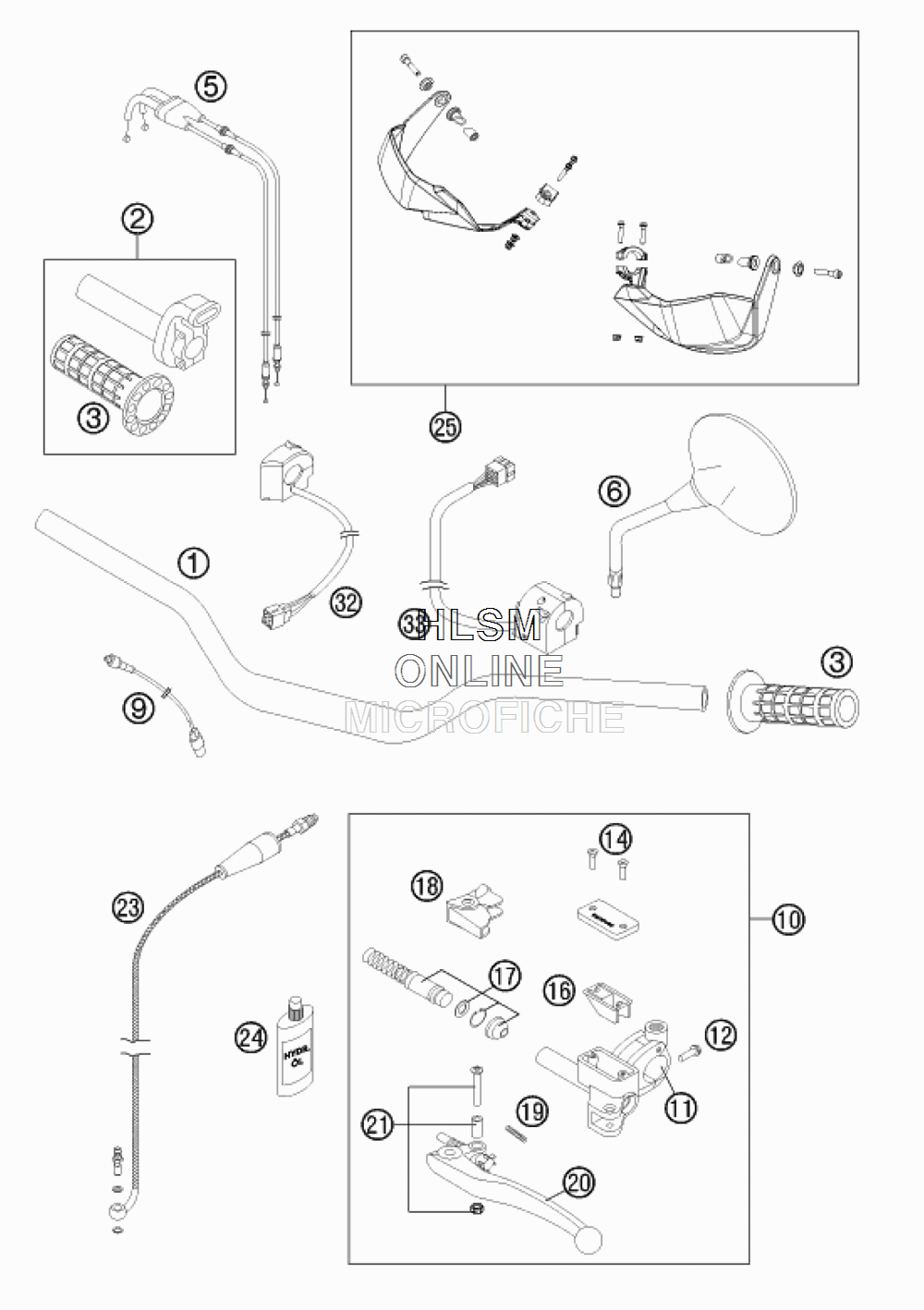

HANDLEBAR CONTROLS для Ktm 990 ADVENTURE BAJA - 2013 года выпуска

  • №
    Артикул
    Название
  • 1
    60002001000 HANDLEBAR D=28MM 03
    HANDLEBAR D=28MM 03
  • 2
    58702010000 THROTTLE GRIP CPL.
    THROTTLE GRIP CPL.
  • 3
    58302021100 GRIPP SET FULL WAFFLE
    GRIPP SET FULL WAFFLE
  • 5
    60002091100 THROTTLE CABLE CPL.
    THROTTLE CABLE CPL.
  • 6
    58412040100 REAR MIRROR L/S+R/S
    REAR MIRROR L/S+R/S
  • 9
    58411049100 CLUTCH SWITCH
    CLUTCH SWITCH
  • 10
    60002130000 MASTER CYLINDER MAGURA D=10.5
    MASTER CYLINDER MAGURA D=10.5
  • 11
    60002044000 CLAMP MIRROR WITH CLAMP
    CLAMP MIRROR WITH CLAMP
  • 12
    0025060206 HH COLLAR SCREW M6X20 TX30
    HH COLLAR SCREW M6X20 TX30
  • 14
    0965040123 FLAT HEAD SCREW DIN0965-M 4X12
    FLAT HEAD SCREW DIN0965-M 4X12
  • 16
    50302034000 RUBBER FOR RESERVOIR
    RUBBER FOR RESERVOIR
  • 17
    50302032000 REP.SET PISTON MAGURA D=10.5
    REP.SET PISTON MAGURA D=10.5
  • 18
    50302037000 PROTECT.CAP FOR LEVER PERCH'98
    PROTECT.CAP FOR LEVER PERCH'98
  • 19
    59002035000 SPRING FOR CLUTCH LEVER
    SPRING FOR CLUTCH LEVER
  • 20
    60002031000 CLUTCH LEVER LONG CPL.
    CLUTCH LEVER LONG CPL.
  • 21
    50302038000 LEVER SCREW CPL.
    LEVER SCREW CPL.
  • 23
    60032063100 CLUTCH PIPE LC8 ADV
    CLUTCH PIPE LC8 ADV
  • 24
    50302036200 OIL FOR HYD. CLUTCH 100 ML
    OIL FOR HYD. CLUTCH 100 ML
  • 25
    6030217900028 HANDGUARDS CLOSED WHITE
    HANDGUARDS CLOSED WHITE
  • 32
    60011074100 START-STOP SWITCH
    START-STOP SWITCH
  • 33
    60011070000 LIGHT SWITCH A.D.
    LIGHT SWITCH A.D.
