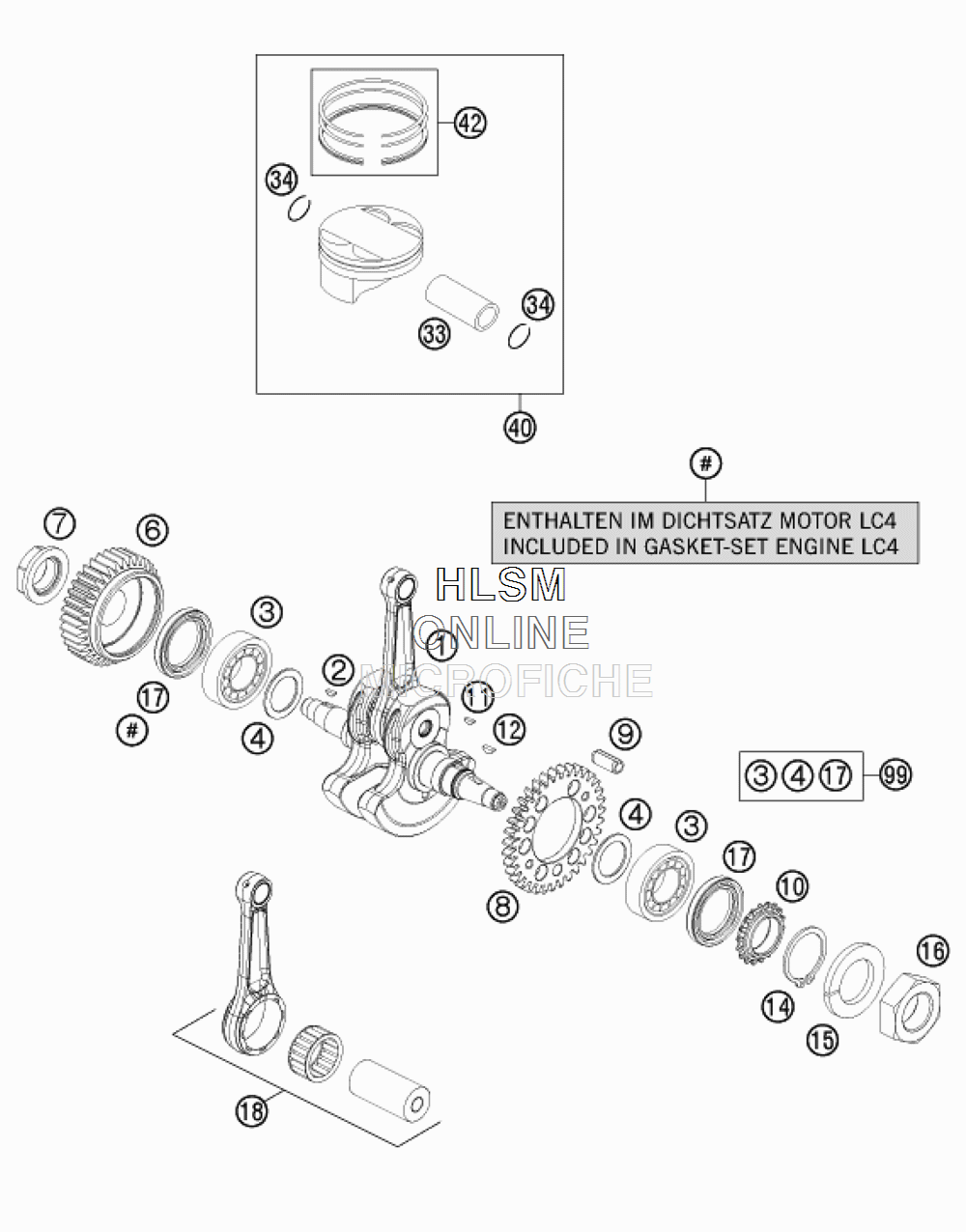

CRANKSHAFT PISTON для Ktm 690 ENDURO - 2013 года выпуска

  • №
    Артикул
    Название
  • 1
    76030018000 CRANKSHAFT CPL.
    CRANKSHAFT CPL.
  • 2
    0888040050 WOODRUFF KEY DIN6888 4X5X13
    WOODRUFF KEY DIN6888 4X5X13
  • 3
    75030018150 CYL.ROLLER BEARING NJ207 ECPC4
    CYL.ROLLER BEARING NJ207 ECPC4
  • 4
    56530081000 SHIM WASHER 36X48X0,10
    SHIM WASHER 36X48X0,10
  • 4
    56530081100 SHIM WASHER 36X48X0,15
    SHIM WASHER 36X48X0,15
  • 4
    56530081200 SHIM WASHER 36X48X0,20 STEEL
    SHIM WASHER 36X48X0,20 STEEL
  • 4
    56530081300 SHIM WASHER 36X48X0,30
    SHIM WASHER 36X48X0,30
  • 6
    75032000102 PRIMARY GEAR 36T.
    PRIMARY GEAR 36T.
  • 7
    75030029100 NUT FOR PRIMARY GEAR
    NUT FOR PRIMARY GEAR
  • 8
    75030055000 DRIVE WHEEL BALANCER SHAFT
    DRIVE WHEEL BALANCER SHAFT
  • 9
    0749080300 TENSION PIN ISO13337 8X30
    TENSION PIN ISO13337 8X30
  • 10
    75036014000 TIMING PULLEY 07
    TIMING PULLEY 07
  • 11
    0888030050 WOODRUFF KEY DIN6888-3X5X13
    WOODRUFF KEY DIN6888-3X5X13
  • 12
    6946005 WOODRUFF KEY 5X6,5 HARDED
    WOODRUFF KEY 5X6,5 HARDED
  • 14
    0471300151 CIRCLIP DIN0471-30X1,5 NIRO
    CIRCLIP DIN0471-30X1,5 NIRO
  • 15
    58132072000 LOCK WASHER VSK 18
    LOCK WASHER VSK 18
  • 16
    0936181505 HEXAGON NUT DIN0936-M18X1,5 R.
    HEXAGON NUT DIN0936-M18X1,5 R.
  • 17
    0760355070 SHAFT SEAL R.35X50X7B VITON
    SHAFT SEAL R.35X50X7B VITON
  • 18
    75330015044 CONNECTING ROD REPAIR KIT
    CONNECTING ROD REPAIR KIT
  • 33
    61230033000 PISTON PIN D=20
    PISTON PIN D=20
  • 34
    77630074000 CIRCLIP
    CIRCLIP
  • 40
    75330007100I PISTON I CPL. D=102
    PISTON I CPL. D=102
  • 40
    75330007100II PISTON II CPL. D=102
    PISTON II CPL. D=102
  • 42
    75330031144 PISTON RING KIT
    PISTON RING KIT
  • 99
    00050002305 CRANKSHAFT REP. KIT 690
    CRANKSHAFT REP. KIT 690
