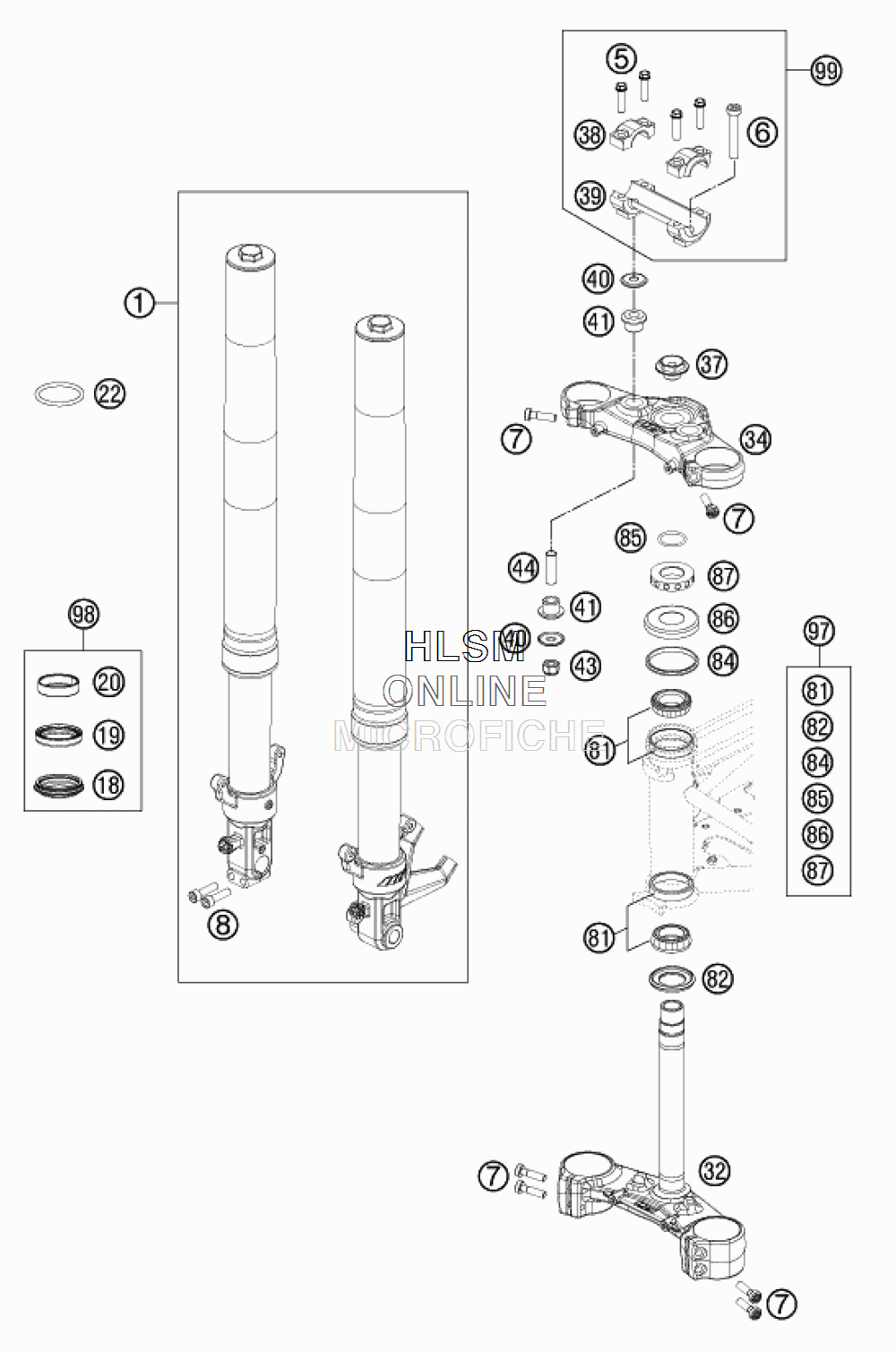

FRONT FORK - TRIPLE CLAMP для Ktm 690 DUKE WHITE - 2013 года выпуска`

№

Артикул

Название
1

05187L1901 FORK WP

FORK WP

0 ₽
5

0025080306 HH COLLAR SCREW M8X30 TX40

HH COLLAR SCREW M8X30 TX40

700 ₽
6

0012100603 AH SCREW DIN6912-M10X60

AH SCREW DIN6912-M10X60

410 ₽
7

0035080306 AH-COLLAR SCREW M8X30 ISA45

AH-COLLAR SCREW M8X30 ISA45

640 ₽
8

J020080273 AH-SCREW M8X27

AH-SCREW M8X27

270 ₽
18

43570624 DUST CAP 43X53,4X5,8

DUST CAP 43X53,4X5,8

3 410 ₽
19

43570623 OIL SEAL RING 43X52,9X11,4

OIL SEAL RING 43X52,9X11,4

3 830 ₽
20

43570204 DU-BUSH 43X47X12 DAIDO

DU-BUSH 43X47X12 DAIDO

2 780 ₽
22

40140024 O-RING NBR 43X2

O-RING NBR 43X2

900 ₽
32

7600103203201S BOT. FORK PLATE CPL.

BOT. FORK PLATE CPL.

70 940 ₽
34

7600103403201S TOP TRIPLE CLAMP

TOP TRIPLE CLAMP

42 520 ₽
37

54801036000 STEER.HEAD SCREW M20X1,5 WS=27

STEER.HEAD SCREW M20X1,5 WS=27

2 840 ₽
38

5900103830001S HANDLEBAR CLAMP 28MM

HANDLEBAR CLAMP 28MM

6 400 ₽
39

5900103920001S HANDLEBAR SUPPORT 28MM

HANDLEBAR SUPPORT 28MM

17 790 ₽
40

56401042000 WASHER 10,5X32X2

WASHER 10,5X32X2

930 ₽
41

56401040000 RUBBER BUSHING

RUBBER BUSHING

1 140 ₽
43

0982100003 SELF LOCK.NUT DIN0982-M10 HIGH

SELF LOCK.NUT DIN0982-M10 HIGH

350 ₽
44

61001041000 SPACER TUBE 10,2X12X38

SPACER TUBE 10,2X12X38

930 ₽
81

54201081100 TAPERED ROLLER BEARING CPL.

TAPERED ROLLER BEARING CPL.

13 380 ₽
82

54601084100 O-RING SUPPORT W. SEALING LIP

O-RING SUPPORT W. SEALING LIP

4 940 ₽
84

54601184000 STEARING HEAD GASKET TOP

STEARING HEAD GASKET TOP

1 900 ₽
85

0770275025 O-RING 27,5X2,5 NBR

O-RING 27,5X2,5 NBR

180 ₽
86

78101086000 STEERING HEAD COVER

STEERING HEAD COVER

1 400 ₽
87

57301036000 STEER.HEAD NUT 660SM

STEER.HEAD NUT 660SM

27 590 ₽
97

76001080044 STEARING HEAD REP. KIT

STEARING HEAD REP. KIT

40 010 ₽
98

90101000010 REP. KIT FORK CPL.

REP. KIT FORK CPL.

28 040 ₽
99

00050000922 HANDLEBAR SUPPORT KIT

HANDLEBAR SUPPORT KIT

29 200 ₽
