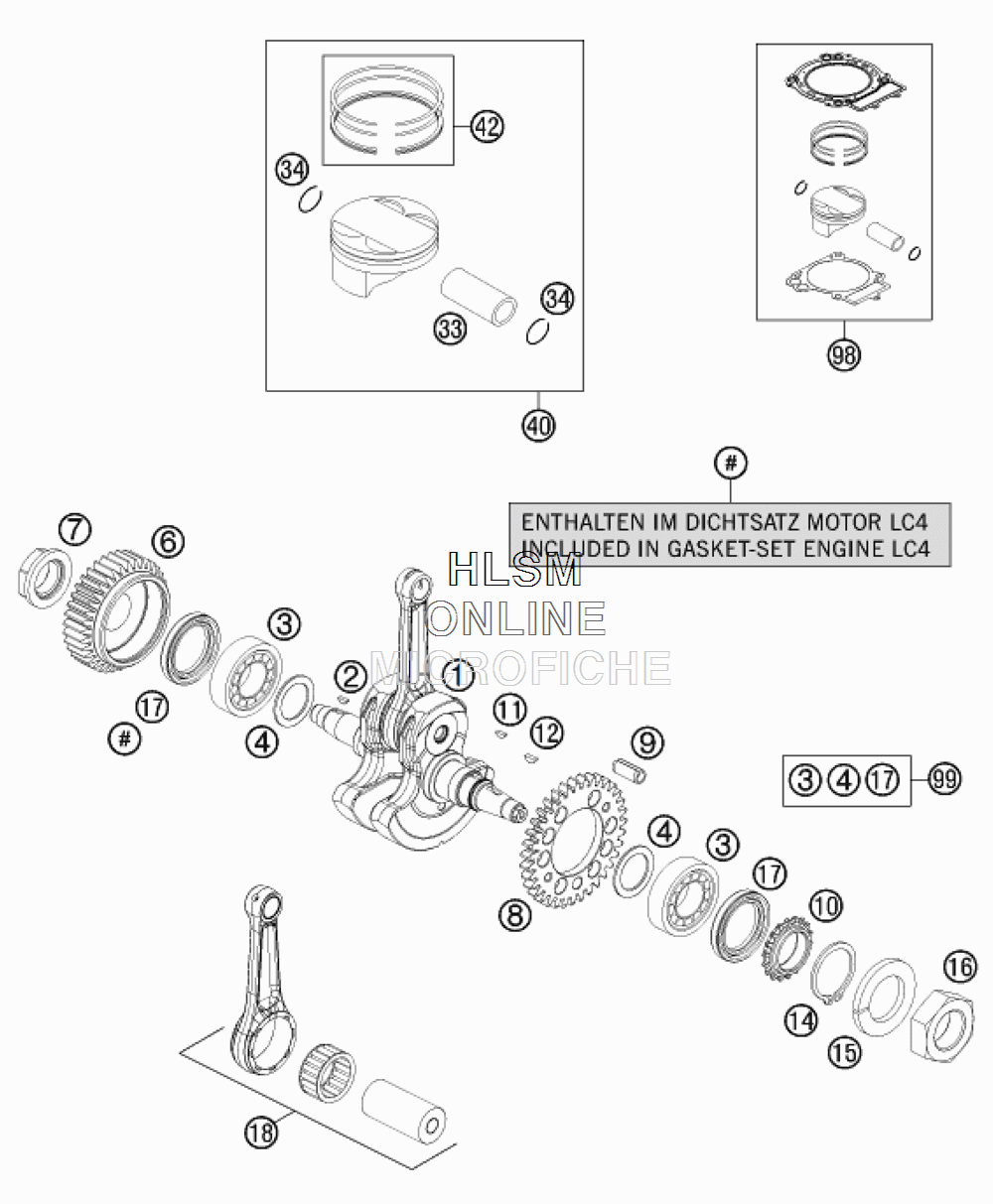

CRANKSHAFT PISTON для Ktm 690 DUKE WHITE - 2013 года выпуска`
-
№АртикулНазвание
-
176030018000 CRANKSHAFT CPL.CRANKSHAFT CPL.
-
20888040050 WOODRUFF KEY DIN6888 4X5X13WOODRUFF KEY DIN6888 4X5X13
-
375030018150 CYL.ROLLER BEARING NJ207ECPC4CYL.ROLLER BEARING NJ207ECPC4
-
456530081000 SHIM WASHER 36X48X0,10SHIM WASHER 36X48X0,10
-
456530081100 SHIM WASHER 36X48X0,15SHIM WASHER 36X48X0,15
-
456530081200 SHIM WASHER 36X48X0,20 STEELSHIM WASHER 36X48X0,20 STEEL
-
456530081300 SHIM WASHER 36X48X0,30SHIM WASHER 36X48X0,30
-
675032000102 PRIMARY GEAR 36T.PRIMARY GEAR 36T.
-
775030029100 NUT FOR PRIMARY GEARNUT FOR PRIMARY GEAR
-
875030055000 DRIVE WHEEL BALANCER SHAFTDRIVE WHEEL BALANCER SHAFT
-
90749080300 TENSION PIN ISO13337 8X30TENSION PIN ISO13337 8X30
-
1075036014000 TIMING PULLEYTIMING PULLEY
-
110888030050 WOODRUFF KEY DIN6888-3X5X13WOODRUFF KEY DIN6888-3X5X13
-
126946005 WOODRUFF KEY 5X6,5 HARDEDWOODRUFF KEY 5X6,5 HARDED
-
140471300151 CIRCLIP DIN0471-30X1,5 NIROCIRCLIP DIN0471-30X1,5 NIRO
-
1558132072000 LOCK WASHER VSK 18LOCK WASHER VSK 18
-
160936181505 HEXAGON NUT DIN0936-M18X1,5 R.HEXAGON NUT DIN0936-M18X1,5 R.
-
170760355070 SHAFT SEAL R.35X50X7B VITONSHAFT SEAL R.35X50X7B VITON
-
1875330015044 CONNECTING ROD REPAIR KITCONNECTING ROD REPAIR KIT
-
3375030833000 PISTON PIN 20MMPISTON PIN 20MM
-
3477630074000 CIRCLIPCIRCLIP
-
4075330007100I PISTON I CPL. D=102PISTON I CPL. D=102
-
4075330007100II PISTON II CPL. D=102PISTON II CPL. D=102
-
4275330031144 PISTON RING KITPISTON RING KIT
-
9800050000224 PISTON KIT GR. IPISTON KIT GR. I
-
9800050000225 PISTON KIT GR. IIPISTON KIT GR. II
-
9900050002305 CRANK SHAFT REP. KITCRANK SHAFT REP. KIT
