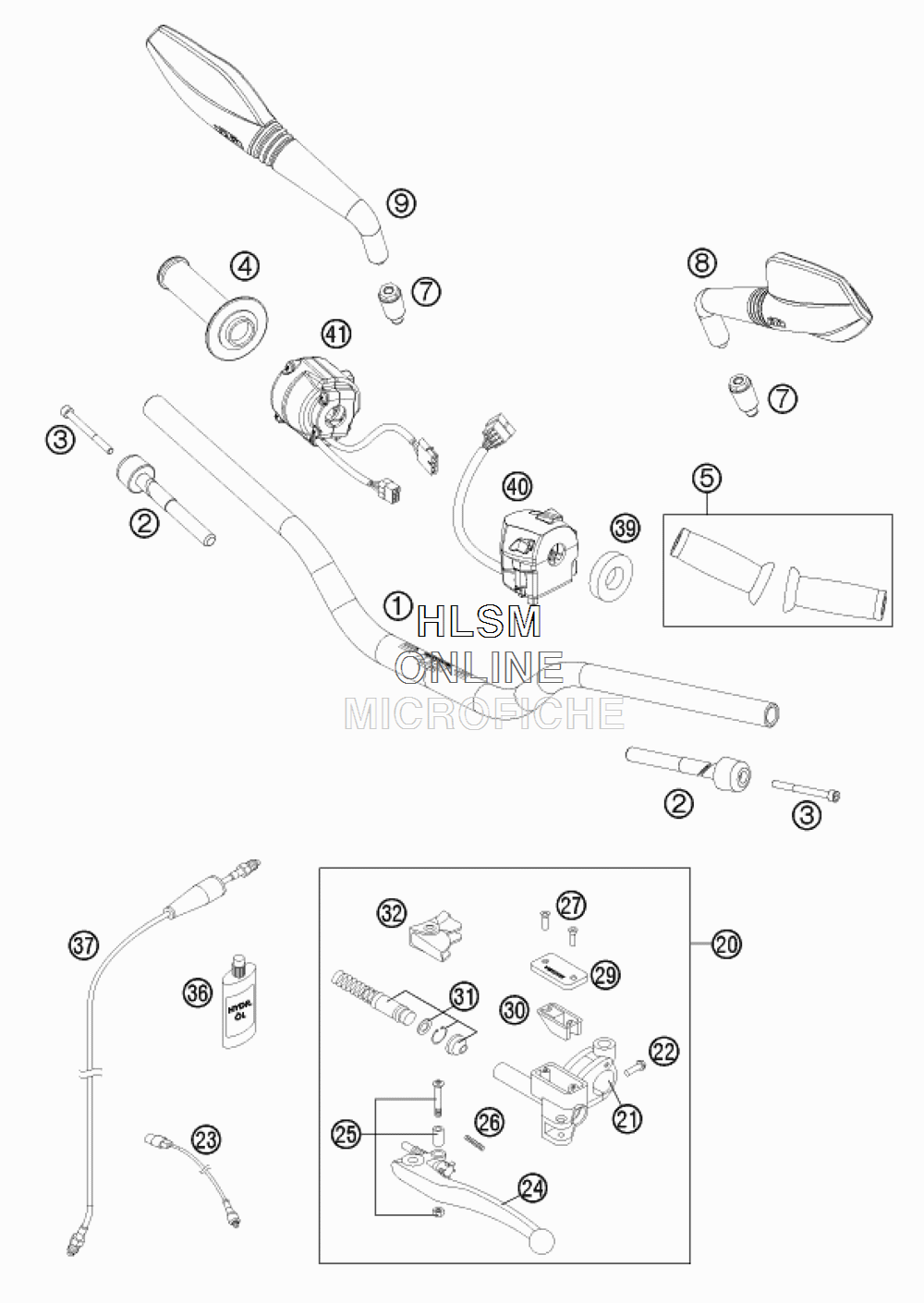

HANDLEBAR CONTROLS для Ktm 690 DUKE BLACK - 2013 года выпуска

  • №
    Артикул
    Название
  • 1
    76002001000 HANDLEBAR D= 28MM
    HANDLEBAR D= 28MM
  • 2
    61002004000 VIBRATIONS ABSORBER
    VIBRATIONS ABSORBER
  • 3
    0912060653 AH SCREW DIN0912-M 6X65
    AH SCREW DIN0912-M 6X65
  • 4
    76002010000 THROTTLE GRIP
    THROTTLE GRIP
  • 5
    76002021000 GRIP SET OPEN END
    GRIP SET OPEN END
  • 7
    58412040050 SUPPORT FOR MIRROR LC4
    SUPPORT FOR MIRROR LC4
  • 8
    61112040000 REVIEW MIRROR L/S
    REVIEW MIRROR L/S
  • 9
    61112041000 REVIEW MIRROR R/S
    REVIEW MIRROR R/S
  • 20
    75002030000 MASTER CYLINDER CPL. 11MM
    MASTER CYLINDER CPL. 11MM
  • 21
    60002044000 CLAMP MIRROR WITH CLAMP
    CLAMP MIRROR WITH CLAMP
  • 22
    0025060206 HH COLLAR SCREW M6X20 TX30
    HH COLLAR SCREW M6X20 TX30
  • 23
    58411049100 CLUTCH SWITCH
    CLUTCH SWITCH
  • 24
    60002031000 CLUTCH LEVER LONG CPL.
    CLUTCH LEVER LONG CPL.
  • 25
    50302038000 LEVER SCREW CPL.
    LEVER SCREW CPL.
  • 26
    59002035000 SPRING FOR CLUTCH LEVER
    SPRING FOR CLUTCH LEVER
  • 27
    0965040123 FLAT HEAD SCREW DIN0965-M 4X12
    FLAT HEAD SCREW DIN0965-M 4X12
  • 29
    50302033000 COVER FOR HYDR. CLUTCH
    COVER FOR HYDR. CLUTCH
  • 30
    50302034000 RUBBER FOR RESERVOIR
    RUBBER FOR RESERVOIR
  • 31
    75002032000 REP.SET PISTON 11MM
    REP.SET PISTON 11MM
  • 32
    50302037000 PROTECT.CAP FOR LEVER PERCH
    PROTECT.CAP FOR LEVER PERCH
  • 36
    50302036200 OIL FOR HYD. CLUTCH 100 ML
    OIL FOR HYD. CLUTCH 100 ML
  • 37
    75632063000 CLUTCH PIPE SM PRESTIGE
    CLUTCH PIPE SM PRESTIGE
  • 39
    76002056000 DISTANCE RING LIGHT SWITCH
    DISTANCE RING LIGHT SWITCH
  • 40
    76011070000 HEAD LIGHT SWITCH
    HEAD LIGHT SWITCH
  • 41
    76011073000 START-STOP/E-GAS
    START-STOP/E-GAS
