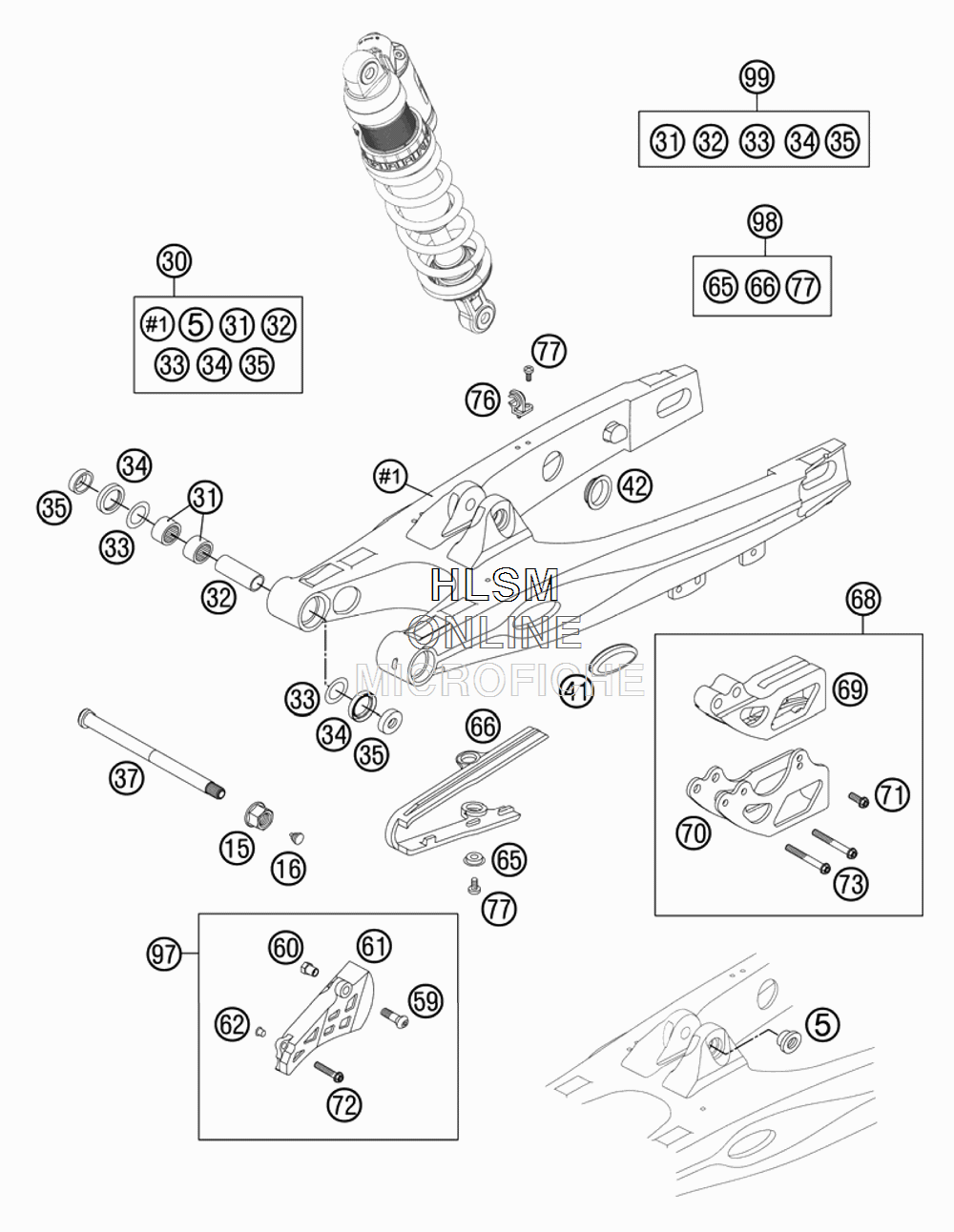

SWINGARM для Ktm 65 SX - 2013 года выпуска

  • №
    Артикул
    Название
  • 1
    46104030144 SWING ARM CPL.
    SWING ARM CPL.
  • 2
    54310086100 SELF LOCKING NUT M10 CU WS=14
    SELF LOCKING NUT M10 CU WS=14
  • 3
    54603097000 NEEDLE BUSH HK 2016
    NEEDLE BUSH HK 2016
  • 4
    46004030070 SPACER BUSHING 20X26X30X9,7
    SPACER BUSHING 20X26X30X9,7
  • 6
    46004030071 BUSHING BOX 12X20X36,5
    BUSHING BOX 12X20X36,5
  • 7
    0770160021 O-RING 16,00X2,00 VITON
    O-RING 16,00X2,00 VITON
  • 10
    46104066000 CHAIN SLID. GUARD FRO.
    CHAIN SLID. GUARD FRO.
  • 11
    46104066050 BUSH FOR CHAINSLIDER GUARD
    BUSH FOR CHAINSLIDER GUARD
  • 12
    0010050103 SPECIAL SCREW M 5,0X10
    SPECIAL SCREW M 5,0X10
  • 13
    0009050106 EJOT SPIRAL SCREW SF M5X10-K
    EJOT SPIRAL SCREW SF M5X10-K
  • 14
    46007066000 CHAIN GUIDE REAR
    CHAIN GUIDE REAR
  • 15
    0025060406 HH COLLAR SCREW M6X40
    HH COLLAR SCREW M6X40
  • 16
    56509064100 SELF LOCKING NUT M6
    SELF LOCKING NUT M6
  • 17
    46104061000 CHAIN GUARD
    CHAIN GUARD
  • 18
    44011076305 CABLE TIE 300/4,8MM BLACK
    CABLE TIE 300/4,8MM BLACK
  • 25
    46204037033 SWINGARM BOLT CPL. 201MM
    SWINGARM BOLT CPL. 201MM
  • 26
    0125120003 FLAT WASHER DIN0125-A13
    FLAT WASHER DIN0125-A13
  • 29
    0934120103 HEXAGON NUT DIN0934-M12X1
    HEXAGON NUT DIN0934-M12X1
  • 30
    46010083000 CHAIN ADJUSTER 60/65 '98
    CHAIN ADJUSTER 60/65 '98
  • 31
    50203030090 HH SCREW M8X40
    HH SCREW M8X40
  • 32
    0934080003 HEXAGON NUT DIN0934-M 8
    HEXAGON NUT DIN0934-M 8
  • 35
    54611076100 RETAIN.CLAMP FOR BRAKE HOSE'96
    RETAIN.CLAMP FOR BRAKE HOSE'96
  • 97
    45204230010 SWINGARM REP. KIT
    SWINGARM REP. KIT
  • 98
    46104066010 CHAIN GUARD KIT
    CHAIN GUARD KIT
  • 99
    46007066010 CHAIN GUIDE KIT REAR
    CHAIN GUIDE KIT REAR
