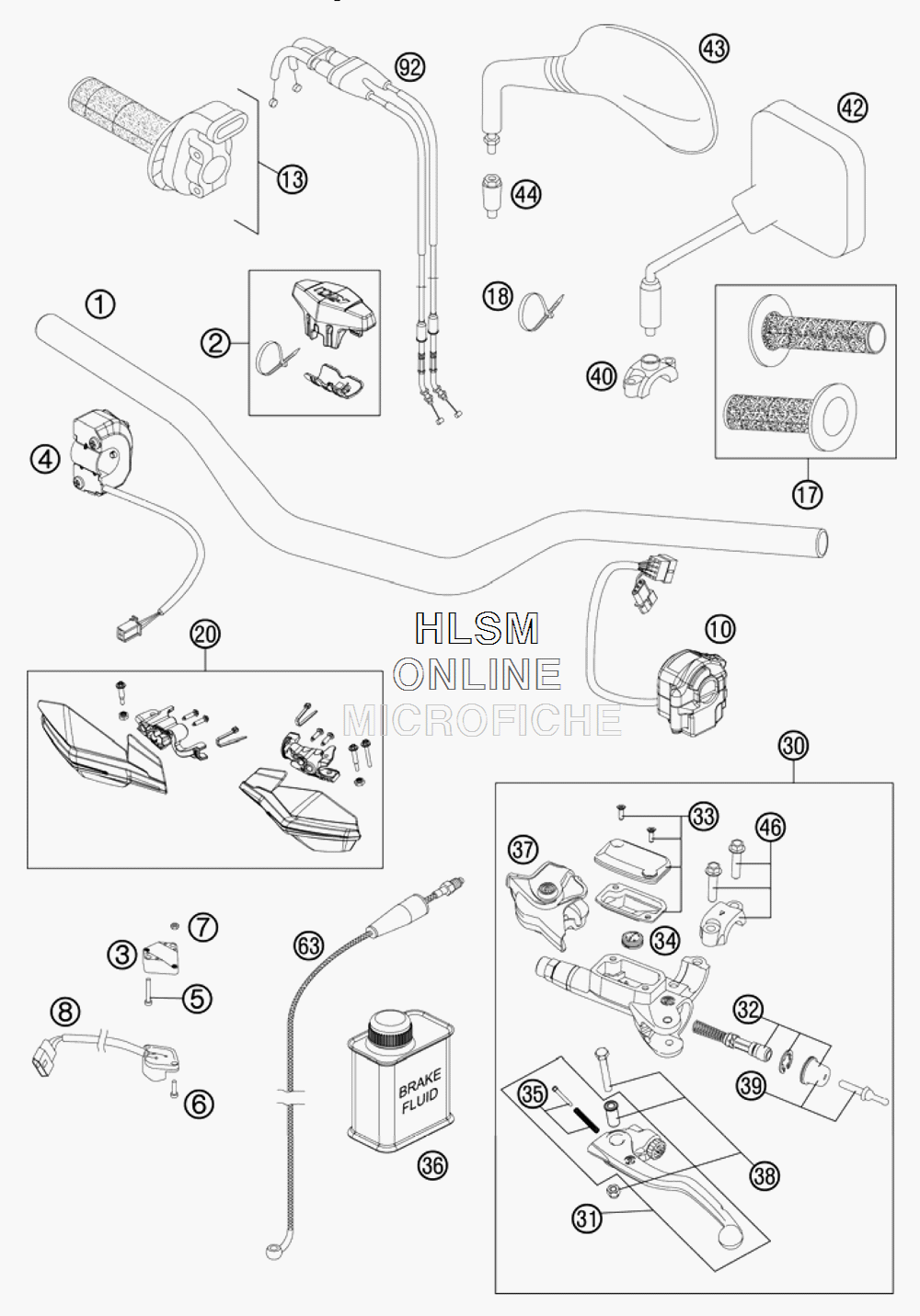

HANDLEBAR CONTROLS для Ktm 500 EXC - 2013 года выпуска`
-
№АртикулНазвание
-
17800200100017 HANDLEBAR D=28MMHANDLEBAR D=28MM
-
277202002144 BAR PAD CPL.BAR PAD CPL.
-
313011070060 ADAPTER FOR FLASHER SWITCHADAPTER FOR FLASHER SWITCH
-
476511074000 START-EMERGENCY STOP SWITCHSTART-EMERGENCY STOP SWITCH
-
50084040223 CYL.HEAD SCREW DIN0084-M 4X22ACYL.HEAD SCREW DIN0084-M 4X22A
-
60985040203 FLAT HEAD SCREW DIN7985-M 4X20FLAT HEAD SCREW DIN7985-M 4X20
-
70934040003 HEXAGON NUT DIN0934-M 4HEXAGON NUT DIN0934-M 4
-
850311029000 FLASHER SWITCH CEVFLASHER SWITCH CEV
-
1076511070000 LIGHT SWITCH L/SLIGHT SWITCH L/S
-
1378102010000 THROTTLE GRIP CPL.THROTTLE GRIP CPL.
-
1778102021000 GRIP SETGRIP SET
-
1844011076140 CABLE TIE 140/2,5MM BLACKCABLE TIE 140/2,5MM BLACK
-
1844011076200 CABLE TIE 200/3,6MM BLACKCABLE TIE 200/3,6MM BLACK
-
207810297900004 HANDGUARDS CPL.LE+RI ORANGEHANDGUARDS CPL.LE+RI ORANGE
-
3054802030044 MASTER CYLINDER CPLMASTER CYLINDER CPL
-
3154802031000 CLUTCH LEVER CPL. BREMBOCLUTCH LEVER CPL. BREMBO
-
3254802032000 REP. KIT PISTONREP. KIT PISTON
-
3354802003000 COVER HYD. CLUTCH CPL.COVER HYD. CLUTCH CPL.
-
3454802051000 VALVEVALVE
-
3554802052000 BOLT CPL.BOLT CPL.
-
3600062030000 BRAKE FLUID DOT5.1 0,25LBRAKE FLUID DOT5.1 0,25L
-
3754802037000 PROTECTION CAPPROTECTION CAP
-
3854802038100 LEVER SCREW CPL.LEVER SCREW CPL.
-
3954802046000 PUSH ROD CPL.PUSH ROD CPL.
-
4058012040150 CLAMP FOR MIRRORCLAMP FOR MIRROR
-
4258012040000 REAR MIRROR L/SREAR MIRROR L/S
-
4258012140000 REAR MIRROR R/SREAR MIRROR R/S
-
4358412040000 MIRROR L/SMIRROR L/S
-
4358412041000 MIRROR R/SMIRROR R/S
-
4458412040050 SUPPORT FOR MIRRORSUPPORT FOR MIRROR
-
4654802005100 CLAMP CPL.CLAMP CPL.
-
6378132063000 CLUTCH PIPECLUTCH PIPE
-
9278102091000 THROTTLE CABLE 4T.THROTTLE CABLE 4T.
