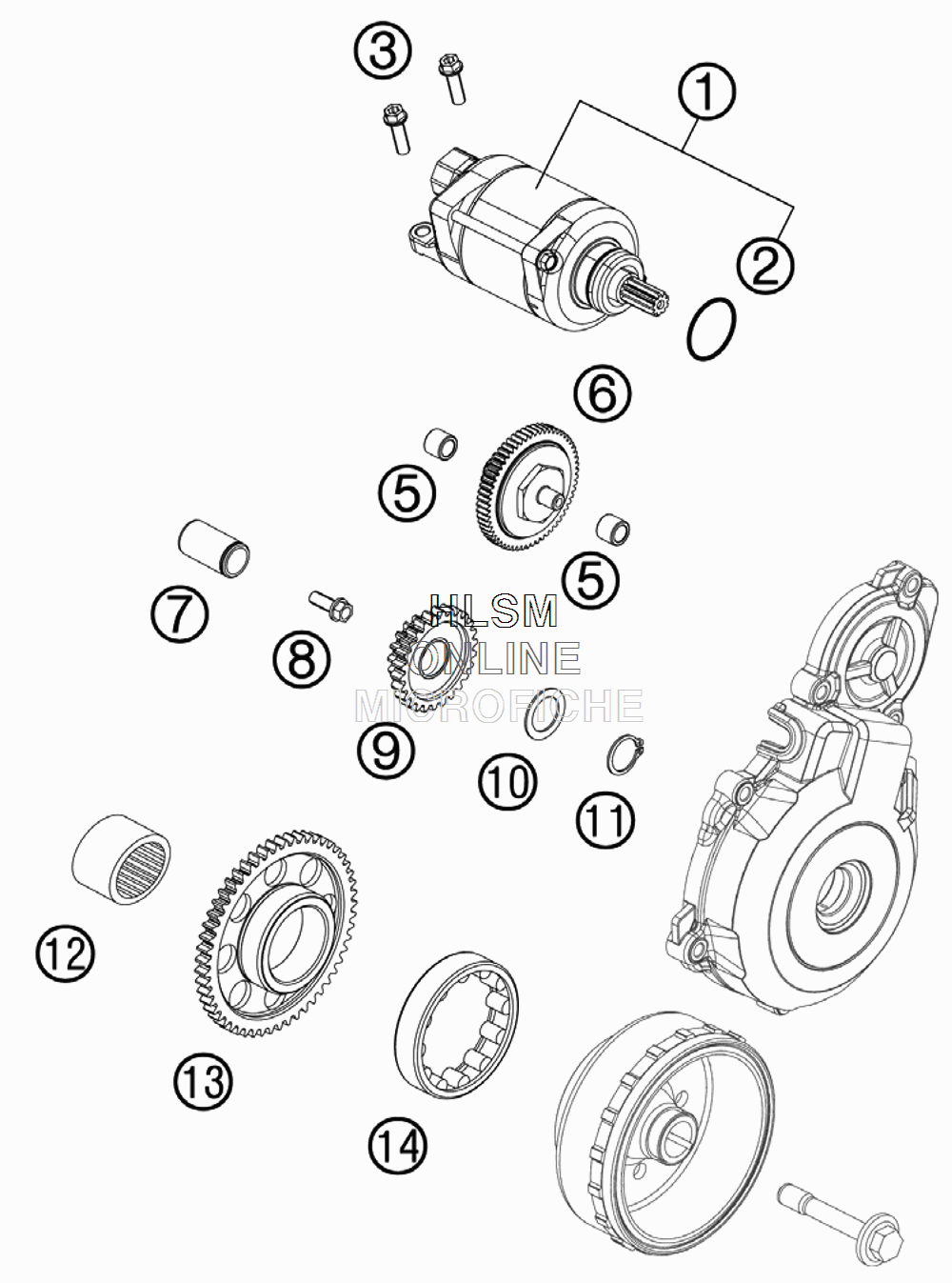

ELECTRIC STARTER для Ktm 350 XC-F W - 2013 года выпуска

  • №
    Артикул
    Название
  • 1
    77240001100 E-STARTER ENGINE CPL.
    E-STARTER ENGINE CPL.
  • 2
    0770250030 O-RING 25,00X3,00 NBR 70
    O-RING 25,00X3,00 NBR 70
  • 3
    0025060256 HH COLLAR SCREW M6X25 TX30
    HH COLLAR SCREW M6X25 TX30
  • 5
    0618081210 NEEDLE BUSH HK 0810 DIN 618
    NEEDLE BUSH HK 0810 DIN 618
  • 6
    77240016000 TORQUE LIMITER
    TORQUE LIMITER
  • 7
    59040028000 BUSHING PIN
    BUSHING PIN
  • 8
    0015060163 HH COLLAR SCREW M 6X16 WS=8
    HH COLLAR SCREW M 6X16 WS=8
  • 9
    77240022000 INTERMEDIATE STARTING GEAR
    INTERMEDIATE STARTING GEAR
  • 10
    54633090000 STOP DISK 17,2X25X1
    STOP DISK 17,2X25X1
  • 11
    0471170010 CIRCLIP DIN0471-17X1
    CIRCLIP DIN0471-17X1
  • 12
    0618301617 NEEDLE BEARING HK 3016 B
    NEEDLE BEARING HK 3016 B
  • 13
    77240020000 FREEWHEEL GEAR
    FREEWHEEL GEAR
  • 14
    77240026000 ROLLER FREE WHEEL
    ROLLER FREE WHEEL
