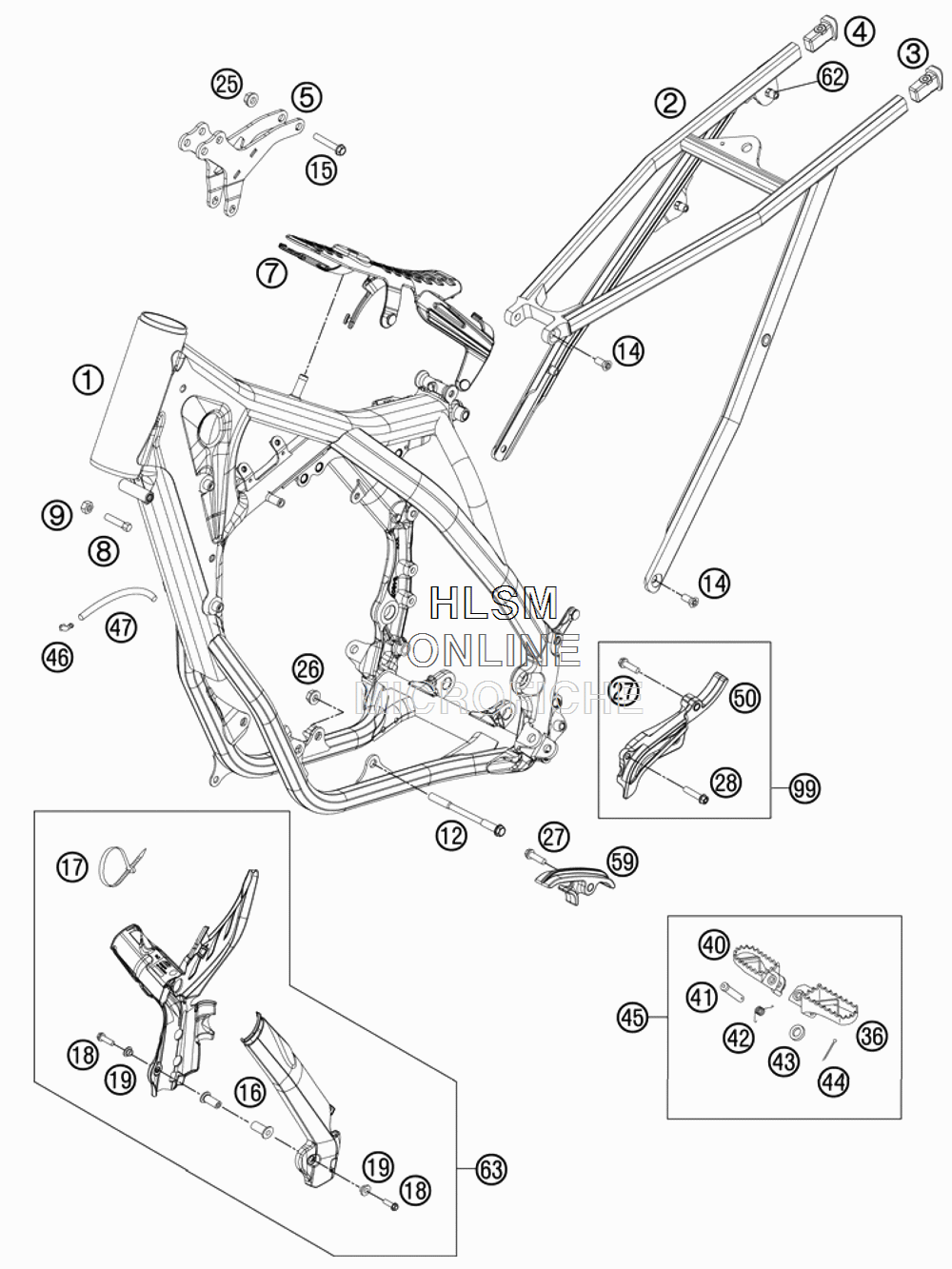

FRAME для Ktm 300 XC - 2013 года выпуска

‹-+›
  • №
    Артикул
    Название
  • 1*
    54803601100BE FRAME ANTRAZIT "548L4"
    FRAME ANTRAZIT "548L4"
  • 2
    77203002000 SUB FRAME SX
    SUB FRAME SX
  • 3
    78003002010 SUB FRAME APPLICATION LEFT
    SUB FRAME APPLICATION LEFT
  • 4
    78003002020 SUB FRAME APPLICATION RIGHT
    SUB FRAME APPLICATION RIGHT
  • 5
    54803613000 REINFORCING 250 SX CPL.
    REINFORCING 250 SX CPL.
  • 7
    77207012000 TANK REST RUBBER
    TANK REST RUBBER
  • 8
    59001037000 SPECIAL SCREW M8X26 WS=10
    SPECIAL SCREW M8X26 WS=10
  • 9
    0934080003 HEXAGON NUT DIN0934-M8
    HEXAGON NUT DIN0934-M8
  • 12
    54603013000 ENGINE BRAC.SCR. M10X105 WS=13
    ENGINE BRAC.SCR. M10X105 WS=13
  • 14
    0019080206S FLAT HEAD SCREW M. ISA45 M8X20
    FLAT HEAD SCREW M. ISA45 M8X20
  • 15
    56530079000 HH COLLAR SCREW M 8X44 WS13
    HH COLLAR SCREW M 8X44 WS13
  • 16
    54803092050 BLIND PLUG-IN NUT M5 WN 22A
    BLIND PLUG-IN NUT M5 WN 22A
  • 17
    44011076140 CABLE TIE 140/2,5MM BLACK
    CABLE TIE 140/2,5MM BLACK
  • 17
    44011076305 CABLE TIE 300/4,8MM BLACK
    CABLE TIE 300/4,8MM BLACK
  • 18
    0738050250 COU.SUNK SCR. AH ISO7380 M5X25
    COU.SUNK SCR. AH ISO7380 M5X25
  • 19
    54803092060 BUSH F. FRAME PROTECTION
    BUSH F. FRAME PROTECTION
  • 25
    54310086200 SELF LOCKING NUT M8 10.9
    SELF LOCKING NUT M8 10.9
  • 26
    54310086100 SELF LOCKING NUT M10 CU WS=14
    SELF LOCKING NUT M10 CU WS=14
  • 27
    0025080306 HH COLLAR SCREW M8X30 TX40
    HH COLLAR SCREW M8X30 TX40
  • 28
    0025060306 HH COLLAR SCREW M6X30 TX30
    HH COLLAR SCREW M6X30 TX30
  • 36
    78003040050 FOOTREST L/S
    FOOTREST L/S
  • 40
    78003041050 FOOTREST R/S
    FOOTREST R/S
  • 41
    54803044000 BOLT FOR FOOT PED
    BOLT FOR FOOT PED
  • 42
    54603041000 FOOTREST SPRING L/S & R/S
    FOOTREST SPRING L/S & R/S
  • 43
    0125100003 WASHER DIN0125-A10,5
    WASHER DIN0125-A10,5
  • 44
    0094032253 PIN DIN0094-3,2X25 STEEL
    PIN DIN0094-3,2X25 STEEL
  • 45
    78003040033 FOOTREST L/S + R/S CPL.
    FOOTREST L/S + R/S CPL.
  • 46
    50303089000 ANGLE PIECE
    ANGLE PIECE
  • 47
    55007016001 PVC-HOSE 7X10 PER METER
    PVC-HOSE 7X10 PER METER
  • 50
    54803096000 SPROCKET COVER
    SPROCKET COVER
  • 59
    77203053000 CHAIN SLIDING PIECE BELOW
    CHAIN SLIDING PIECE BELOW
  • 62
    77303139000 BLIND RIVET NUT EM6-60LF/HX
    BLIND RIVET NUT EM6-60LF/HX
  • 63
    77203094000 PLASTIC FRAME PROTECTION SET
    PLASTIC FRAME PROTECTION SET
  • 99
    54803096010 SPROCKET COVER KIT
    SPROCKET COVER KIT
