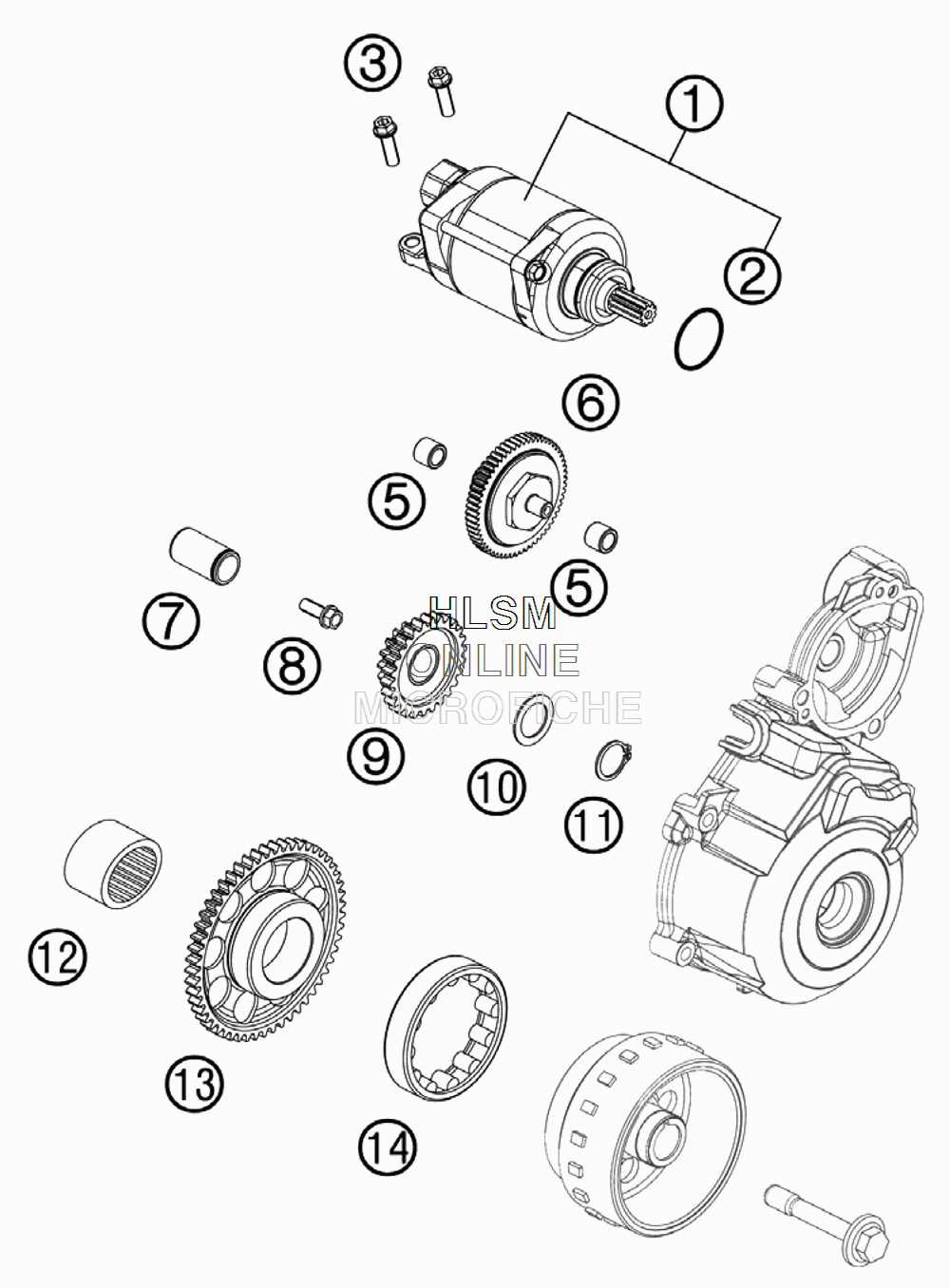

ELECTRIC STARTER для Ktm 250 XC-F - 2013 года выпуска`
-
№АртикулНазвание
-
177240001100 E-STARTER ENGINE CPL.E-STARTER ENGINE CPL.
-
20770250030 O-RING 25,00X3,00 NBR 70O-RING 25,00X3,00 NBR 70
-
30025060256 HH COLLAR SCREW M6X25 TX30HH COLLAR SCREW M6X25 TX30
-
50618081210 NEEDLE BUSH HK 0810 DIN 618NEEDLE BUSH HK 0810 DIN 618
-
677240016000 TORQUE LIMITERTORQUE LIMITER
-
759040028000 BUSHING PINBUSHING PIN
-
80015060163 HH COLLAR SCREW M 6X16 WS=8HH COLLAR SCREW M 6X16 WS=8
-
977240022000 INTERMEDIATE STARTING GEARINTERMEDIATE STARTING GEAR
-
1054633090000 STOP DISK 17,2X25X1STOP DISK 17,2X25X1
-
110471170010 CIRCLIP DIN0471-17X1CIRCLIP DIN0471-17X1
-
120618253216 NEEDLE BUSH HK2516 25/32/16NEEDLE BUSH HK2516 25/32/16
-
1377840020100 FREEWHEEL GEARFREEWHEEL GEAR
-
1477240026000 ROLLER FREE WHEELROLLER FREE WHEEL
