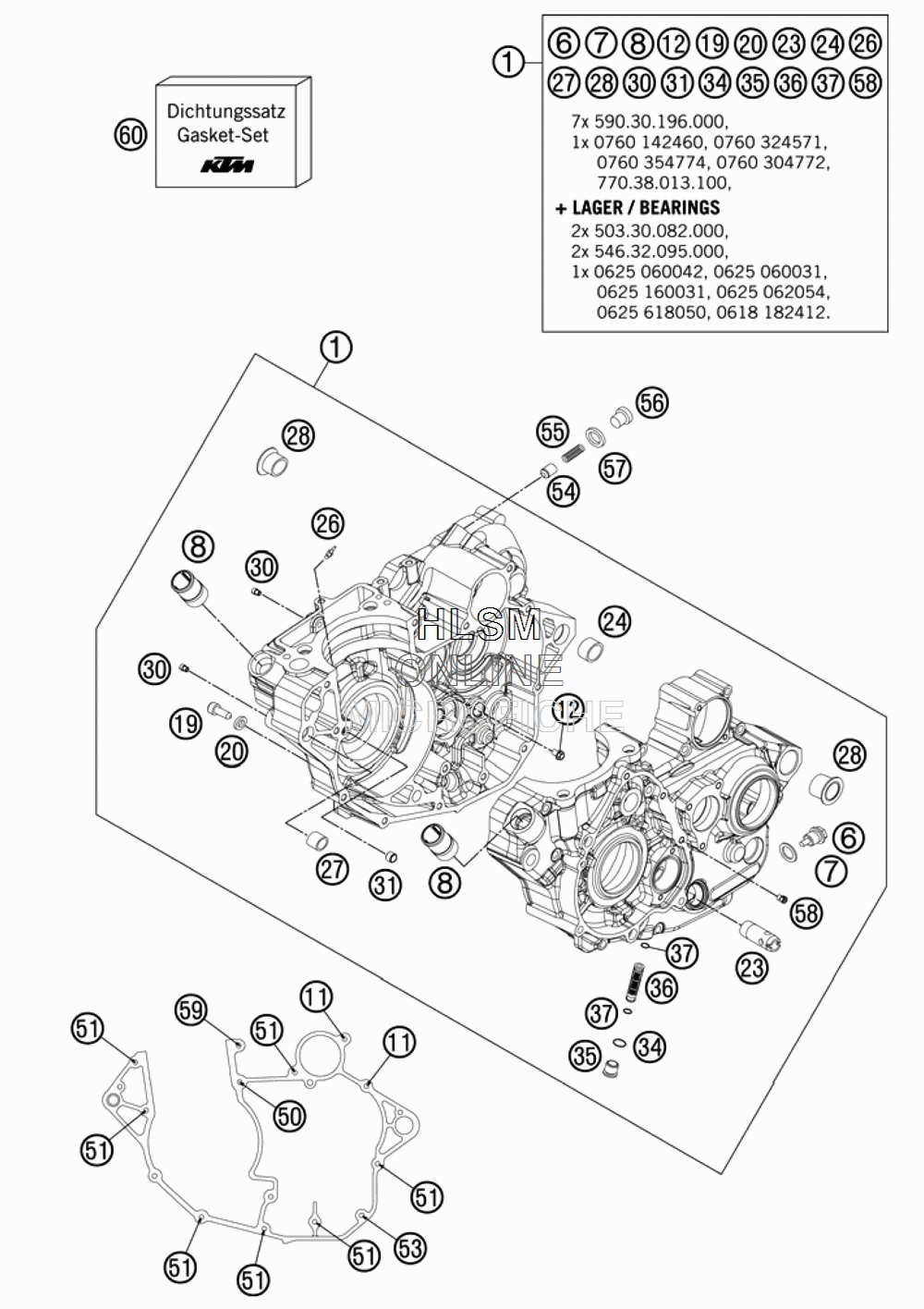

ENGINE CASE для Ktm 250 XC-F W - 2013 года выпуска
-
№АртикулНазвание
-
177130000244 ENGINE CASEENGINE CASE
-
658030021000 OILDRAIN PLUG W.MAG. M 12X1,5OILDRAIN PLUG W.MAG. M 12X1,5
-
758038022000 CU-SEAL RING DIN7603-12X18X1,5CU-SEAL RING DIN7603-12X18X1,5
-
858030010200 SCREW IN NOZZLE M20X1,5SCREW IN NOZZLE M20X1,5
-
110025060406 HH COLLAR SCREW M6X40 TX30HH COLLAR SCREW M6X40 TX30
-
120025060086 HH COLLAR SCREW M6X8 TX30HH COLLAR SCREW M6X8 TX30
-
1958030080000 LOCATING SCREW M8 L=23LOCATING SCREW M8 L=23
-
2058030081000 CU-SEAL RING 8 X 14 X 3CU-SEAL RING 8 X 14 X 3
-
2377038022000 OIL INTAKEPIPEOIL INTAKEPIPE
-
2459030024000 DOWEL 17 X 19 X 12DOWEL 17 X 19 X 12
-
2660030064070 OIL JET 70 M6X0,75 WS8OIL JET 70 M6X0,75 WS8
-
2754630027000 DOWEL BUSHING 13,8X11X12DOWEL BUSHING 13,8X11X12
-
2875030010100 CASE BUSHCASE BUSH
-
3059030058000 JET 100 BING (44-031/180) M4JET 100 BING (44-031/180) M4
-
3177130023000 DOWEL 6X8X5,5DOWEL 6X8X5,5
-
340770120020 O-RING 12,00X2,00 NBR 70O-RING 12,00X2,00 NBR 70
-
3577038017000 SCREW PLUGSCREW PLUG
-
3659038015100 OIL SCREEN 11,8X44,5MMOIL SCREEN 11,8X44,5MM
-
3707700900151 O-RING 9X1,5 V75 SH DIN 3771O-RING 9X1,5 V75 SH DIN 3771
-
500025060656 HH COLLAR SCREW M6X65 TX30HH COLLAR SCREW M6X65 TX30
-
510025060506 HH COLLAR SCREW M6X50 TX30HH COLLAR SCREW M6X50 TX30
-
530025060306 HH COLLAR SCREW M6X30 TX30HH COLLAR SCREW M6X30 TX30
-
5458038028000 VALVE PISTON D=10MMVALVE PISTON D=10MM
-
5558038023300 PRESSURE SPRING L=25MM D=1MMPRESSURE SPRING L=25MM D=1MM
-
560908120153 PLUG DIN0908-M12X1,5PLUG DIN0908-M12X1,5
-
5758038022000 CU-SEAL RING DIN7603-12X18X1,5CU-SEAL RING DIN7603-12X18X1,5
-
5880030058060 OIL JET "60" M4OIL JET "60" M4
-
590025060606 HH COLLAR SCREW M6X60 TX30HH COLLAR SCREW M6X60 TX30
-
6077030099100 GASKET SETGASKET SET
