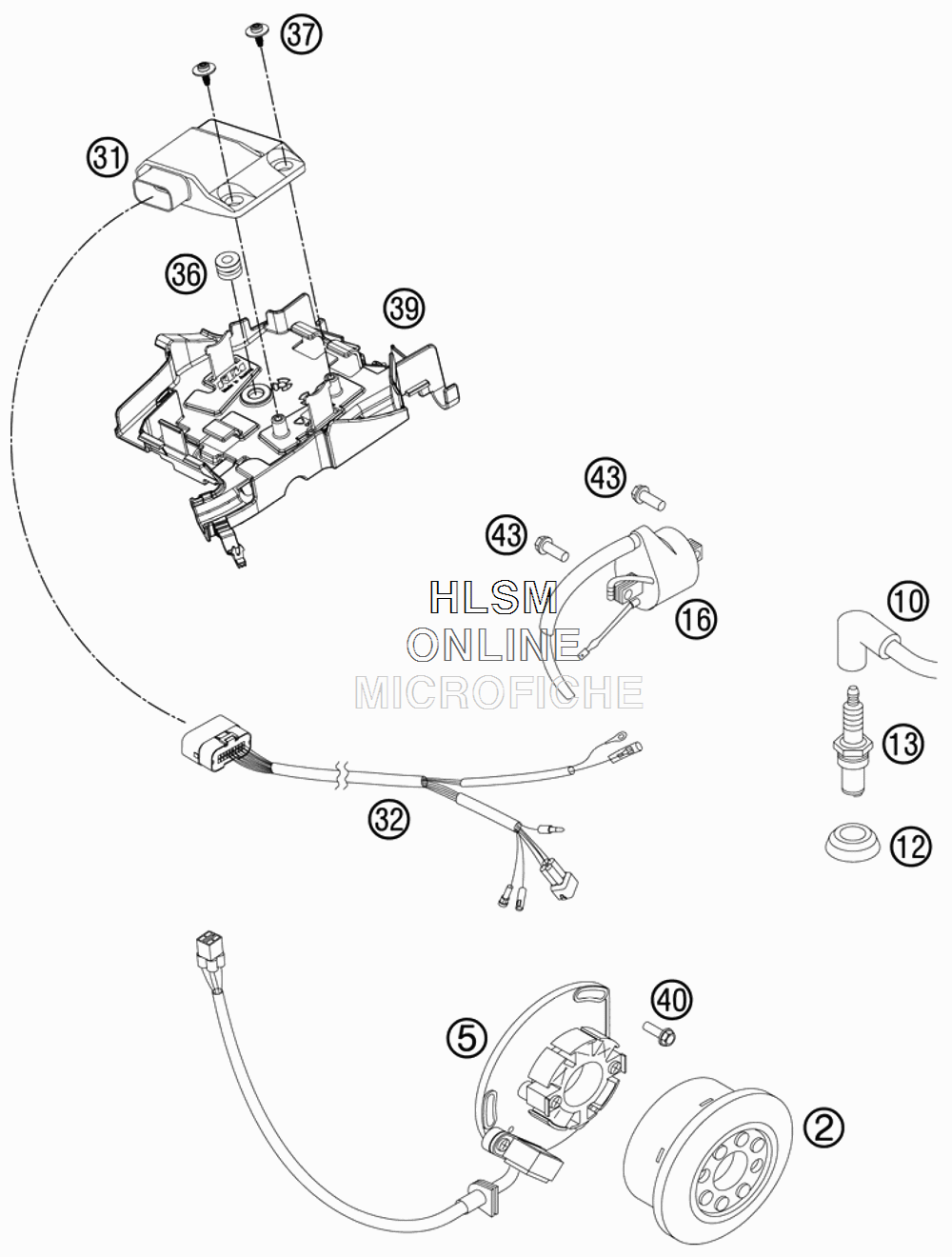

IGNITION SYSTEM для Ktm 250 SX - 2013 года выпуска`
-
№АртикулНазвание
-
254739005144 FLYWHEEL 2K-2FLYWHEEL 2K-2
-
554839004000 STATOR 2K-1STATOR 2K-1
-
1047039090000 SPARK PLUG CAP NGK REINFORC.SPARK PLUG CAP NGK REINFORC.
-
1250231012000 SEALING CUP FOR SPARK PLUGSEALING CUP FOR SPARK PLUG
-
1354331093410 SPARK PLUG NGK BR8ECMSPARK PLUG NGK BR8ECM
-
1659039006000 IGNITIONCOIL "IG5128"IGNITIONCOIL "IG5128"
-
3154839131500 ELECTRONIC BOXELECTRONIC BOX
-
3254839032200 WIRING HARNESS FOR CDI 2-ST.WIRING HARNESS FOR CDI 2-ST.
-
3658214069051 RUBBER GROMMET 16X10,8X3RUBBER GROMMET 16X10,8X3
-
370081645121 EJOT DELTA PT SCREW 45X12-ZEJOT DELTA PT SCREW 45X12-Z
-
3951511094100 ELECTRIC CASEELECTRIC CASE
-
400025050166 HH COLLAR SCREW M5X16 TX30HH COLLAR SCREW M5X16 TX30
-
430025060166 HH COLLAR SCREW M6X 16 TX30HH COLLAR SCREW M6X 16 TX30
