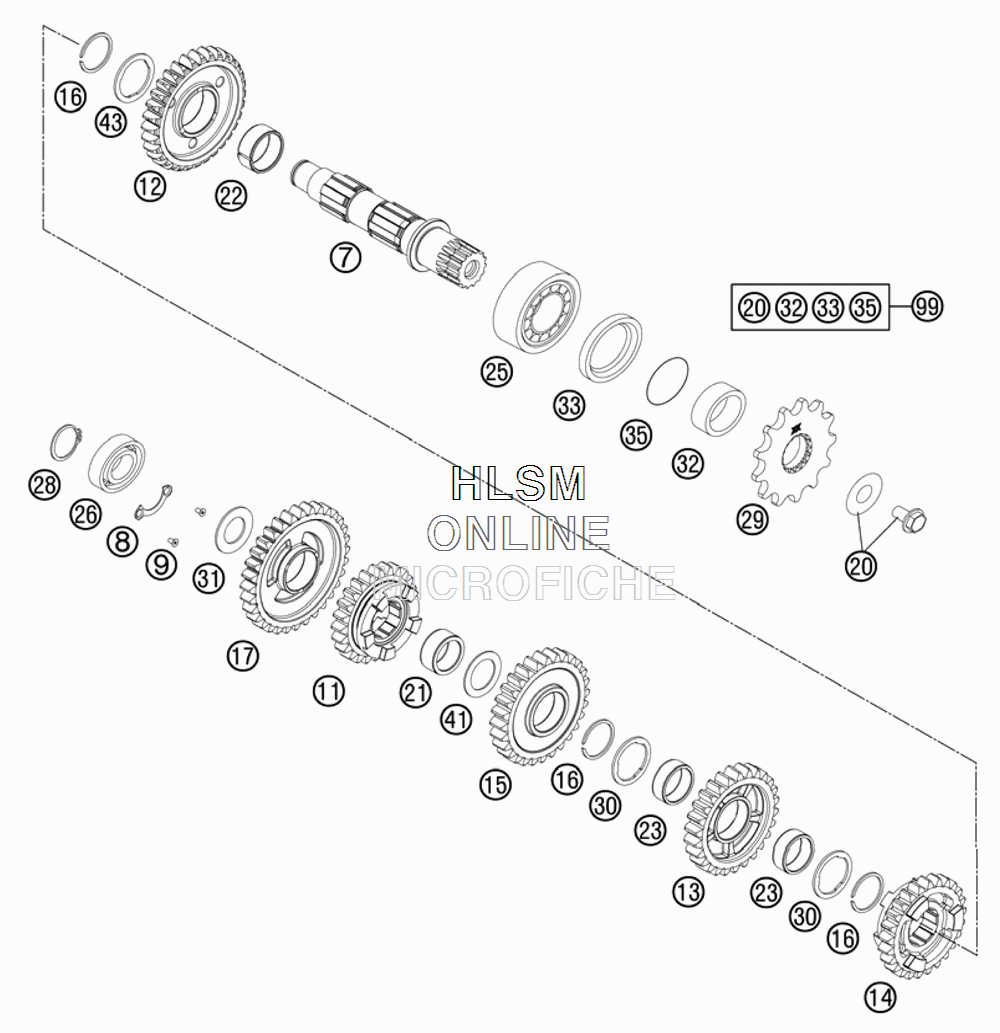

TRANSMISSION - COUNTERSHAFT для Ktm 250 SX-F - 2013 года выпуска

№

Артикул

Название
7

77733110000 COUNTERSHAFT

COUNTERSHAFT

32 480 ₽
8

78033132000 TAB WASHER BEARING COUNT.SHAFT

TAB WASHER BEARING COUNT.SHAFT

1 140 ₽
9

0019050106 INT. TORX FLAT HEAD M5X10 10.9

INT. TORX FLAT HEAD M5X10 10.9

290 ₽
11

77733216000 SLIDING GEAR 6.G.,Z=24

SLIDING GEAR 6.G.,Z=24

27 950 ₽
12

77733012000 IDLER GEAR 2ND G. T=32

IDLER GEAR 2ND G. T=32

22 020 ₽
13

77733214000 IDLER GEAR 4.G. Z=26

IDLER GEAR 4.G. Z=26

19 890 ₽
14

77733215000 SLIDING GEAR 5.G.,Z=25

SLIDING GEAR 5.G.,Z=25

27 450 ₽
15

77733213000 IDLER GEAR 3.G. Z=28

IDLER GEAR 3.G. Z=28

22 110 ₽
16

0417024000 CIRCLIP WS24

CIRCLIP WS24

320 ₽
17

77733011000 IDLER GEAR 1ST G. T=32

IDLER GEAR 1ST G. T=32

19 920 ₽
20

59033034044 SCREW 10.9+SPRING WASHER

SCREW 10.9+SPRING WASHER

2 050 ₽
21

0405202612 NEEDLE BEARING K 20X26X12

NEEDLE BEARING K 20X26X12

2 950 ₽
22

0405242812 NEDDLE BEAR. K24X28X11,9 DIV.

NEDDLE BEAR. K24X28X11,9 DIV.

1 670 ₽
23

0405222611 NEEDLE BEAR.K 22X26X10 DIVIDED

NEEDLE BEAR.K 22X26X10 DIVIDED

3 130 ₽
25

49030023000 CYL.ROLL BEARING NJ205

CYL.ROLL BEARING NJ205

20 130 ₽
26

0625062035 BALL BEARING 6203 JR2 C3

BALL BEARING 6203 JR2 C3

3 890 ₽
28

0471170015 CIRCLIP DIN 0471-17X1, 5

CIRCLIP DIN 0471-17X1, 5

210 ₽
29

50033029013 FRONT SPROCKET 13-T

FRONT SPROCKET 13-T

8 110 ₽
29

50033029014 FRONT SPROCKET 14-T

FRONT SPROCKET 14-T

8 110 ₽
30

77733043000 STOP DISC 23,4X31X1,5

STOP DISC 23,4X31X1,5

640 ₽
31

77233020000 STOP DISK 17,2X30X1,3

STOP DISK 17,2X30X1,3

930 ₽
32

54633014100 SPACER BUSHING 12MM

SPACER BUSHING 12MM

5 140 ₽
33

0760324571 SHAFT SEAL RING 32X45X7 BSLNBR

SHAFT SEAL RING 32X45X7 BSLNBR

1 140 ₽
35

0770020220 O-RING 25,12X1,78 NBR70

O-RING 25,12X1,78 NBR70

590 ₽
41

54833080000 STOP DISC 20,2X30X1

STOP DISC 20,2X30X1

640 ₽
43

77733044000 STOP DISC 24X32X1,5

STOP DISC 24X32X1,5

930 ₽
99

00050000941 COUNTER SHAFT REP.KIT

COUNTER SHAFT REP.KIT

8 040 ₽
