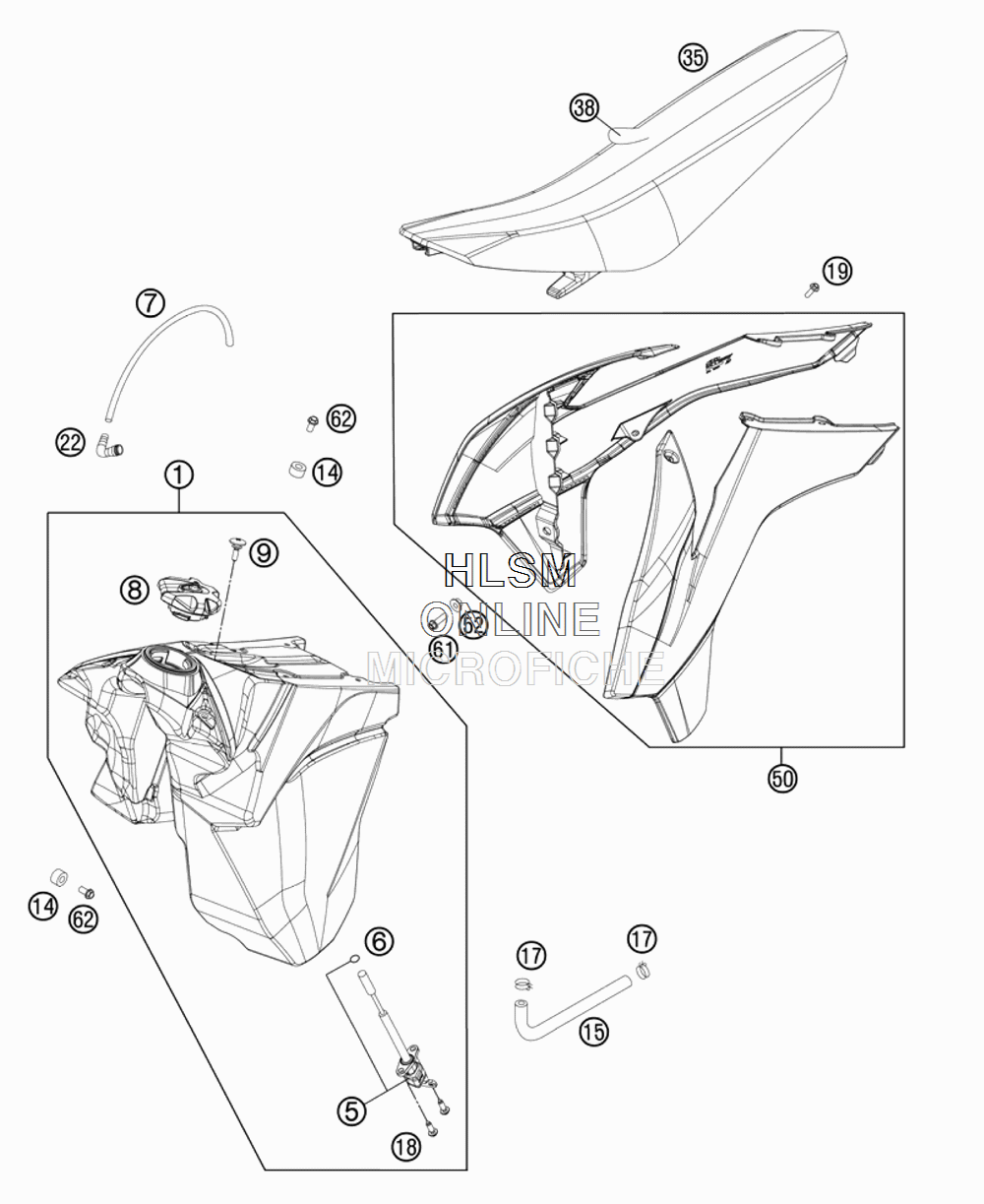

TANK - SEAT - COVER для Ktm 200 XC-W - 2013 года выпуска

  • №
    Артикул
    Название
  • 1
    5480751303399 FUEL TANK CPL. TRANSP. 10L
    FUEL TANK CPL. TRANSP. 10L
  • 5
    54807004000 GAS COCK ON/OFF/RES
    GAS COCK ON/OFF/RES
  • 6
    0770110021 O-RING 11X2 VITON
    O-RING 11X2 VITON
  • 7
    78007000270 PVC-HOSE 5,6X10X270MM
    PVC-HOSE 5,6X10X270MM
  • 8
    78007008044X4 TANK PLUG ORANGE/BLACK
    TANK PLUG ORANGE/BLACK
  • 9
    50307011000 SCREW SEAT FASTENING D=6X23/18
    SCREW SEAT FASTENING D=6X23/18
  • 14
    50307014000 TANK ROLLER 12X26X12
    TANK ROLLER 12X26X12
  • 15
    50307016000 FUEL PREFORMED HOSE
    FUEL PREFORMED HOSE
  • 17
    58031005000 CLAMP YDNAC 10128 12MM
    CLAMP YDNAC 10128 12MM
  • 18
    0017060203 EJOT PT SCREW K60X20 WS=6
    EJOT PT SCREW K60X20 WS=6
  • 19
    0017060204 EJOT PT SCREW K60X20 ALU WS=6
    EJOT PT SCREW K60X20 ALU WS=6
  • 22
    51030022000 ANGLE PIECE 90 DEGREE M10X1
    ANGLE PIECE 90 DEGREE M10X1
  • 35
    77207040000 SEAT CPL.
    SEAT CPL.
  • 38
    77207040050 SEAT COVER
    SEAT COVER
  • 50
    7720805400004G SPOILER KIT WITH DECAL
    SPOILER KIT WITH DECAL
  • 52
    50308052000 BUSH FOR SPOILER 6X11X16X5 MM
    BUSH FOR SPOILER 6X11X16X5 MM
  • 61
    0025060206 HH COLLAR SCREW M6X20 TX30
    HH COLLAR SCREW M6X20 TX30
  • 62
    0026060136 COLLAR SCREW M6X13 ISA30
    COLLAR SCREW M6X13 ISA30
