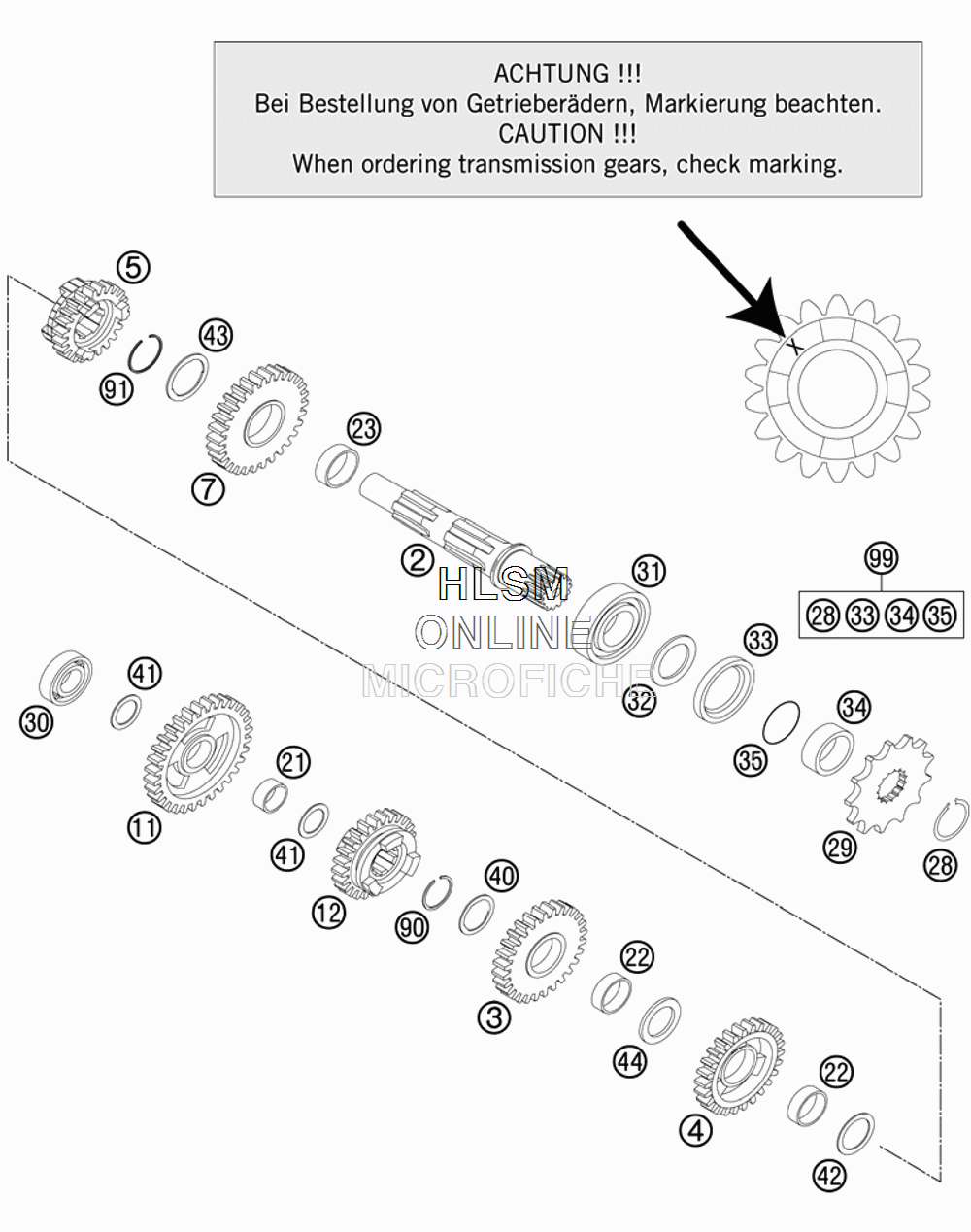

TRANSMISSION - COUNTER SHAFT для Ktm 150 XC - 2013 года выпуска`
-
№АртикулНазвание
-
250333002000 COUNTER SHAFT 125/200COUNTER SHAFT 125/200
-
350333003100 IDLE G.3RD G.28-T "3S28H"IDLE G.3RD G.28-T "3S28H"
-
450333004000 IDLE G.4TH G.26-T "4S26"IDLE G.4TH G.26-T "4S26"
-
550333005200 SLIDING G.6TH G.23-T "6S23"SLIDING G.6TH G.23-T "6S23"
-
750333006000 IDLER G. 2ND G. 30-T "2S30"IDLER G. 2ND G. 30-T "2S30"
-
1150333011600 IDLER GEAR 1.G 32-TIDLER GEAR 1.G 32-T
-
1250333012000 SLIDING G.5TH G.25-T "5S25"SLIDING G.5TH G.25-T "5S25"
-
2150333021000 IDLER GEAR BUSHING 17X20X9,7 BIDLER GEAR BUSHING 17X20X9,7 B
-
2250333022000 IDLER GEAR BUSHING 22X25X8,1 CIDLER GEAR BUSHING 22X25X8,1 C
-
2350333023000 IDLER GEAR BUSHING 25X28X9,7 DIDLER GEAR BUSHING 25X28X9,7 D
-
2852033096000 LOCK RING DIN0471-25X1,64SDLOCK RING DIN0471-25X1,64SD
-
2950033029013 FRONT SPROCKET 13-TFRONT SPROCKET 13-T
-
2950033029014 FRONT SPROCKET 14-TFRONT SPROCKET 14-T
-
300625060031 BALL BEARING 6003 TN9 C4BALL BEARING 6003 TN9 C4
-
310625062054 BALL BEARING 6205 C3 NTNBALL BEARING 6205 C3 NTN
-
3256033020000 STOP RINGSTOP RING
-
330760324571 SHAFT SEAL RING 32X45X7 BSLNBRSHAFT SEAL RING 32X45X7 BSLNBR
-
3454633014100 SPACER BUSHING 12MMSPACER BUSHING 12MM
-
350770230020 O-RING 23,00X2,00 NBR70O-RING 23,00X2,00 NBR70
-
4050333040000 STOP DISC 22,2X27,8X1 ASTOP DISC 22,2X27,8X1 A
-
4150333041000 STOP DISC 17,2X26X1 BSTOP DISC 17,2X26X1 B
-
4250333042000 STOP DISK 22,2X28X1 CSTOP DISK 22,2X28X1 C
-
4350333043000 STOP DISC 25,2X32X1STOP DISC 25,2X32X1
-
4450333044000 STOP DISC 22,2X30X2,5STOP DISC 22,2X30X2,5
-
9050133090000 LOCK RING 22X1,2LOCK RING 22X1,2
-
9152033090100 LOCK RING 25X1,2LOCK RING 25X1,2
-
9900050000943 COUNTER SHAFT REP. KITCOUNTER SHAFT REP. KIT
