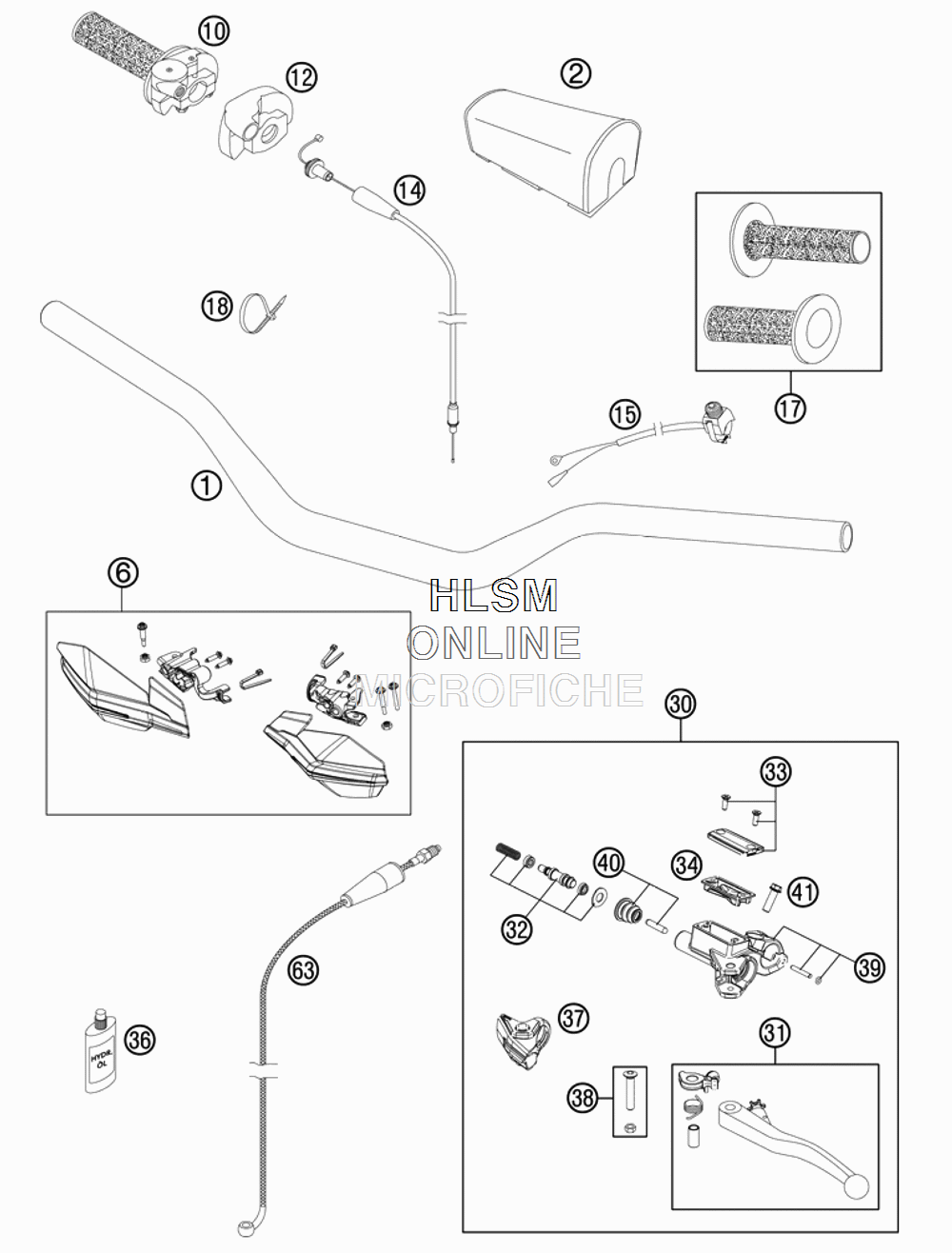

HANDLEBAR CONTROLS для Ktm 150 XC - 2013 года выпуска`
-
№АртикулНазвание
-
17770200100030 HANDLEBAR RENTHAL BLACKHANDLEBAR RENTHAL BLACK
-
277302002000 BAR PADBAR PAD
-
67810297900004 HANDGUARDS CPL. LE+RI ORANGEHANDGUARDS CPL. LE+RI ORANGE
-
1051502010100 THROTTLE GRIP CPL.THROTTLE GRIP CPL.
-
1250302020000 PROTECTION COVERPROTECTION COVER
-
130770021300 O-RING 40,94X2,62 NBR70O-RING 40,94X2,62 NBR70
-
1451502091100 THROTTLE CABLE 2T.DOM/KEIH.THROTTLE CABLE 2T.DOM/KEIH.
-
1550311089200 SHORT CIRCUIT BUTTONSHORT CIRCUIT BUTTON
-
1778102021000 GRIP SETGRIP SET
-
1844011076200 CABLE TIE 200/3,6MM BLACKCABLE TIE 200/3,6MM BLACK
-
3050302030300 MASTER CYLINDER CPL. 9,5MMMASTER CYLINDER CPL. 9,5MM
-
3150302031300 CLUTCH LEVER CPL.CLUTCH LEVER CPL.
-
3250302032100 REP.KIT PISTON 9,5MMREP.KIT PISTON 9,5MM
-
3350302033200 COVER HYDR. CLUTCH CPL.COVER HYDR. CLUTCH CPL.
-
3450302034100 RUBBER FOR RESERVOIRRUBBER FOR RESERVOIR
-
3650302036200 OIL FOR HYD. CLUTCH 75MLOIL FOR HYD. CLUTCH 75ML
-
3750302037100 MUD CAPMUD CAP
-
3850302038200 LEVER SCREW SHORT CPL.LEVER SCREW SHORT CPL.
-
3983013005000 CLAMP, CYL. PIN, O-RINGCLAMP, CYL. PIN, O-RING
-
4050302046000 PUSH ROD CPL.PUSH ROD CPL.
-
410025060166 HH COLLAR SCREW M6X16 TX30HH COLLAR SCREW M6X16 TX30
-
6350332063200 CLUTCH PIPE L=970MMCLUTCH PIPE L=970MM
