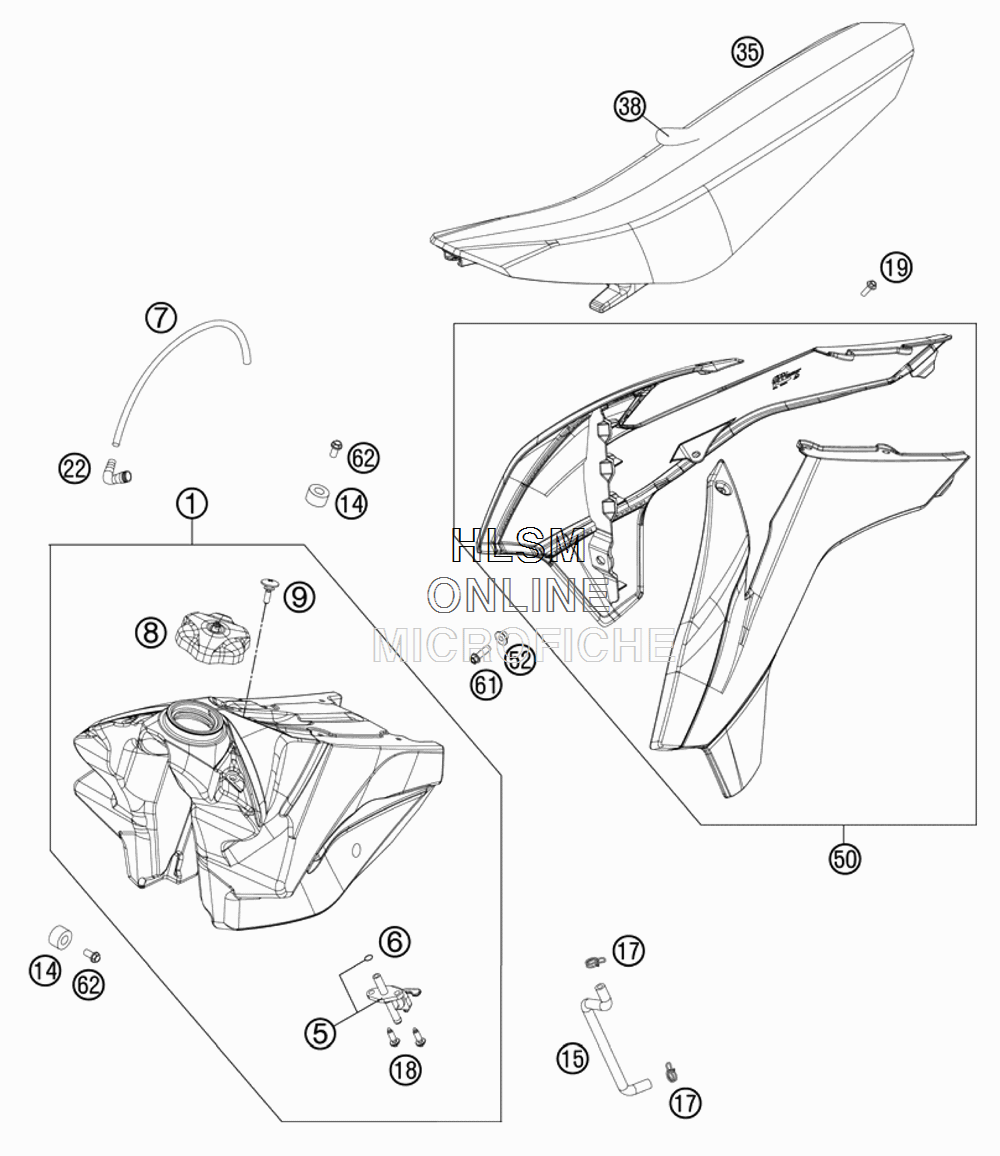

TANK - SEAT - COVER для Ktm 150 SX - 2013 года выпуска`
-
№АртикулНазвание
-
15150701303330 FUEL TANK CPL. 7,5L SX CABFUEL TANK CPL. 7,5L SX CAB
-
550307005000 GAS COCK MIKUNI ON/OFFGAS COCK MIKUNI ON/OFF
-
60770130023 O-RING 13,00X2,30O-RING 13,00X2,30
-
778007000270 PVC-HOSE 5,6X10X270MMPVC-HOSE 5,6X10X270MM
-
877707008044X4 TANK PLUG CPL. BLACKTANK PLUG CPL. BLACK
-
950307011000 SCREW SEAT FASTENING D=6X23/18SCREW SEAT FASTENING D=6X23/18
-
1450307014000 TANK ROLLER 12X26X12TANK ROLLER 12X26X12
-
1554807516000 FUEL HOSE 6X2,5FUEL HOSE 6X2,5
-
1758031005000 CLAMP YDNAC 10128 12MMCLAMP YDNAC 10128 12MM
-
180017060203 EJOT PT SCREW K60X20 WS=6EJOT PT SCREW K60X20 WS=6
-
190017060204 EJOT PT SCREW K60X20 ALU WS=6EJOT PT SCREW K60X20 ALU WS=6
-
2251030022000 ANGLE PIECE 90 DEGREE M10X1ANGLE PIECE 90 DEGREE M10X1
-
3577207040000 SEAT CPL.SEAT CPL.
-
3877207040050 SEAT COVERSEAT COVER
-
507770805400004A SPOILER KIT WITH DECALSPOILER KIT WITH DECAL
-
5250308052000 BUSH FOR SPOILER 6X11X16X5 MMBUSH FOR SPOILER 6X11X16X5 MM
-
610025060206 HH COLLAR SCREW M6X20 TX30HH COLLAR SCREW M6X20 TX30
-
620025060126 HH COLLAR SCREW W M6X TX30HH COLLAR SCREW W M6X TX30
