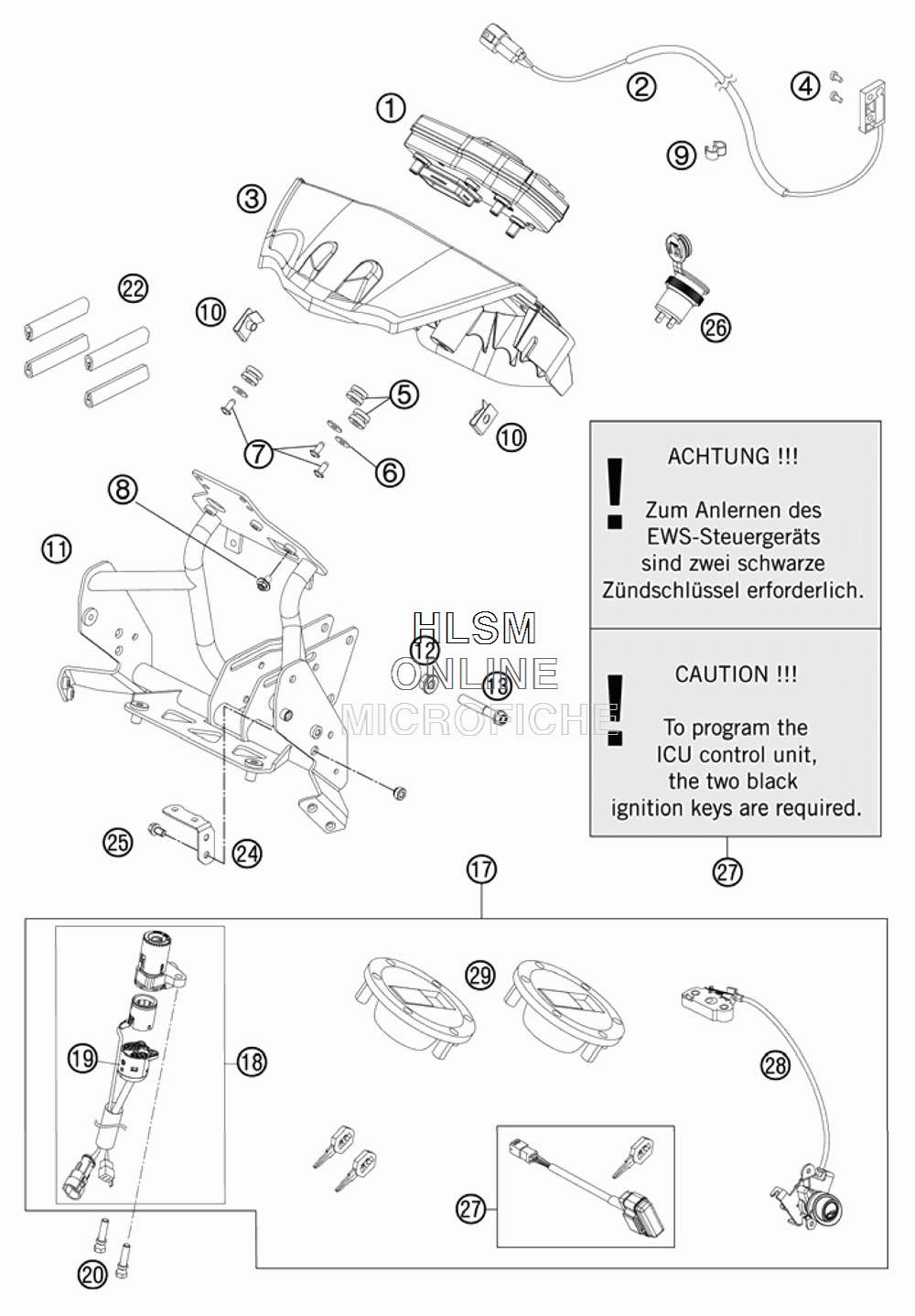

INSTRUMENTS / LOCK SYSTEM для Ktm 990 ADVRENTURE - 2012 года выпуска

  • №
    Артикул
    Название
  • 1
    60114069200 SPEEDOMETER
    SPEEDOMETER
  • 2
    62514068200 SPEEDOMETER SENSOR
    SPEEDOMETER SENSOR
  • 3
    60114070200 INSTRUMENTS COVER ABS
    INSTRUMENTS COVER ABS
  • 4
    0084040083 CYL.HEAD SCREW DIN0084-M 4X8 A
    CYL.HEAD SCREW DIN0084-M 4X8 A
  • 5
    58214069051 RUBBER GROMMET 16X10,8X3
    RUBBER GROMMET 16X10,8X3
  • 6
    0021050003 WASHER DIN9021-A 5,3
    WASHER DIN9021-A 5,3
  • 7
    0081045121 SCREW FOR PLASTIC K45X12 T20
    SCREW FOR PLASTIC K45X12 T20
  • 8
    0024060106 HH COLLAR SCREW M6X10 TX30
    HH COLLAR SCREW M6X10 TX30
  • 9
    60111094000 CLAMP 5/7 MM
    CLAMP 5/7 MM
  • 10
    54603048100 RANGE CHANGE METAL NUT M6
    RANGE CHANGE METAL NUT M6
  • 11
    60114010000 COCKPIT SUPPORT
    COCKPIT SUPPORT
  • 12
    54310086200 SELF LOCKING NUT M8 10.9
    SELF LOCKING NUT M8 10.9
  • 13
    0025080456 HH COLLAR SCREW M8X45 TX40
    HH COLLAR SCREW M8X45 TX40
  • 17
    60111066044 LOCK SYSTEM 990 ADV.
    LOCK SYSTEM 990 ADV.
  • 18
    60111066000 IGNITION LOCK
    IGNITION LOCK
  • 19
    60111066050 INSERT IGNITION LOCK
    INSERT IGNITION LOCK
  • 20
    60011064000 TAMPERPROOF SCREW F. IGN. LOCK
    TAMPERPROOF SCREW F. IGN. LOCK
  • 22
    60114010070 EDGE PROTECTOR 14X9,5X66 MM
    EDGE PROTECTOR 14X9,5X66 MM
  • 24
    60103001166 SUPPORT ROLLOVER SENSOR
    SUPPORT ROLLOVER SENSOR
  • 25
    0025060106 HH COLLAR SCREW M6X10 TX30
    HH COLLAR SCREW M6X10 TX30
  • 26
    60111042100 SOCKET
    SOCKET
  • 27
    62611021000 IMMOBILIZER 990SM W. MASTERKEY
    IMMOBILIZER 990SM W. MASTERKEY
  • 28
    60107050000 SEAT LOCK
    SEAT LOCK
  • 29
    60007108000 TANK PLUG
    TANK PLUG
