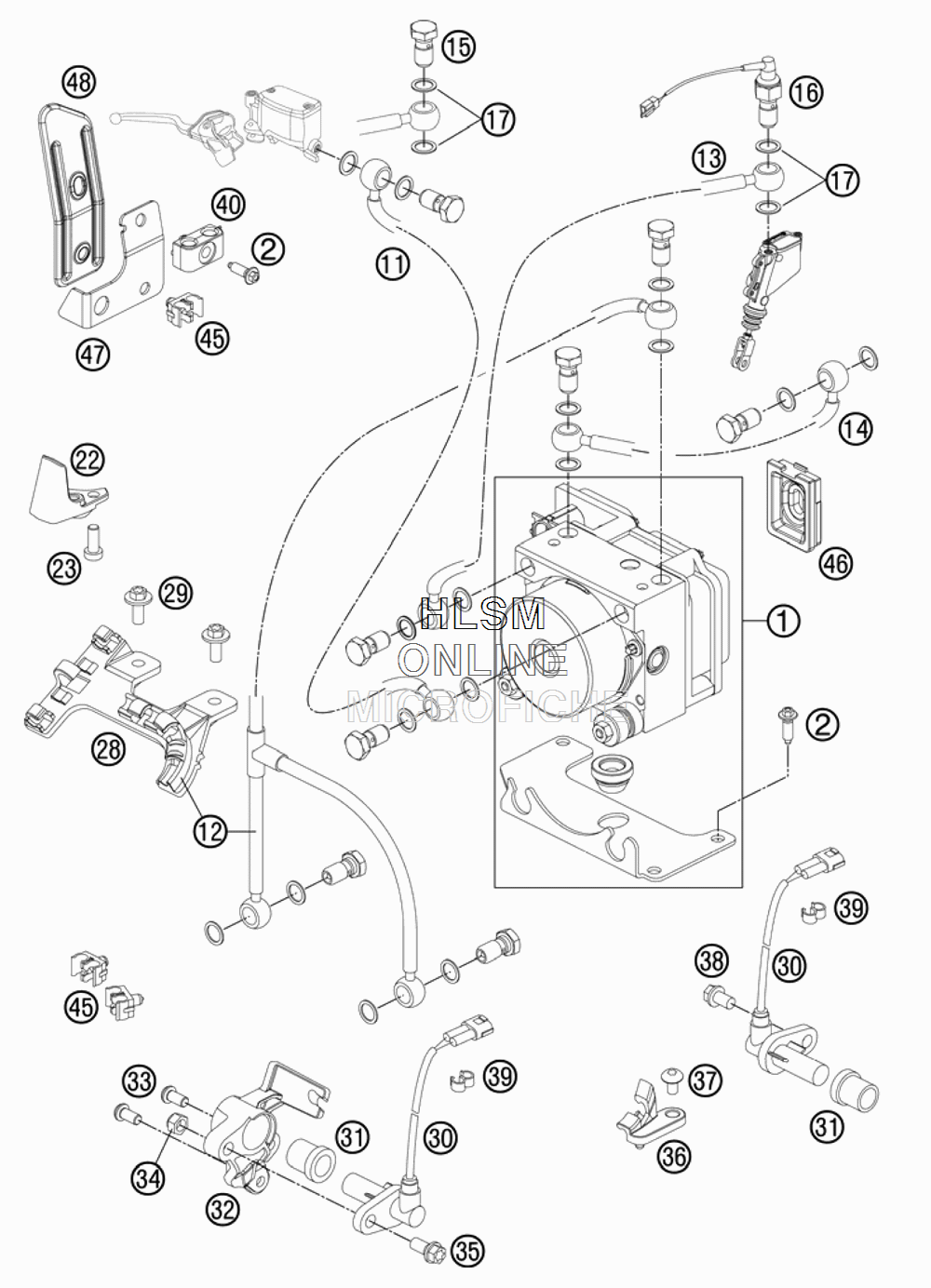

ANTI-SKID SYSTEM ABS для Ktm 990 ADVRENTURE WHITE - 2012 года выпуска
-
№АртикулНазвание
-
160142031244 ABS-MODULE INCL. SUPPORTABS-MODULE INCL. SUPPORT
-
20017060203 EJOT PT SCREW K60X20 WS=6EJOT PT SCREW K60X20 WS=6
-
1160142010000 BRAKE HOSE L=1320MMBRAKE HOSE L=1320MM
-
1260142011000 BRAKE HOSE 1190/715/810MMBRAKE HOSE 1190/715/810MM
-
1360142012200 BRAKE HOSE L=360BRAKE HOSE L=360
-
1460142013200 BRAKE HOSE L=845BRAKE HOSE L=845
-
1550213025000 HOLLOW SCREW M10X1X19HOLLOW SCREW M10X1X19
-
1650311051100 BRAKE LIGHT SWITCH REARBRAKE LIGHT SWITCH REAR
-
170603100141 COPPER GASKET DIN7603-10X14X1COPPER GASKET DIN7603-10X14X1
-
2260101077000 BRAKE HOSE GUIDE TOPBRAKE HOSE GUIDE TOP
-
230012060164 AH SCREW DIN6912 M6X16 SLAH SCREW DIN6912 M6X16 SL
-
2860101078000 BRAKE HOSE GUIDE LOWERBRAKE HOSE GUIDE LOWER
-
290024060156 HH COLLAR SCREW M6X15 TX30HH COLLAR SCREW M6X15 TX30
-
3060142025000 ABS-SENSORABS-SENSOR
-
3160142024050 SLEEVE SENSOR HOLDER ABSSLEEVE SENSOR HOLDER ABS
-
3260142024000 SENSOR HOLDER FRONTSENSOR HOLDER FRONT
-
330018050103 INT. TORX OVAL HEAD M 5X10 8.8INT. TORX OVAL HEAD M 5X10 8.8
-
340985060003 SELF LOCK. NUT DIN0985-M 6SELF LOCK. NUT DIN0985-M 6
-
350025060166 HH COLLAR SCREW M6X16 TX30HH COLLAR SCREW M6X16 TX30
-
3660142026000 CABLE SUPPORT SWING ARMCABLE SUPPORT SWING ARM
-
3758605083010 SCREW TORX M5X10SCREW TORX M5X10
-
3859009062013 SPECIAL SCREW M6X13 WS=8 10.9SPECIAL SCREW M6X13 WS=8 10.9
-
3960111094000 CLAMP 5/7 MMCLAMP 5/7 MM
-
4060113046000 SUPPORT FOR BRAKE HOSESUPPORT FOR BRAKE HOSE
-
4560113026000 HOSE SUPPORT 7/7 MMHOSE SUPPORT 7/7 MM
-
4660108017010 RUBBER SLEEVE 30X40 MMRUBBER SLEEVE 30X40 MM
-
4760113044000 RETAINING PLATE BRAKE HOSE REARRETAINING PLATE BRAKE HOSE REAR
-
4860113043000 HEAT PROTECT. BRAKE REAR HI.HEAT PROTECT. BRAKE REAR HI.
