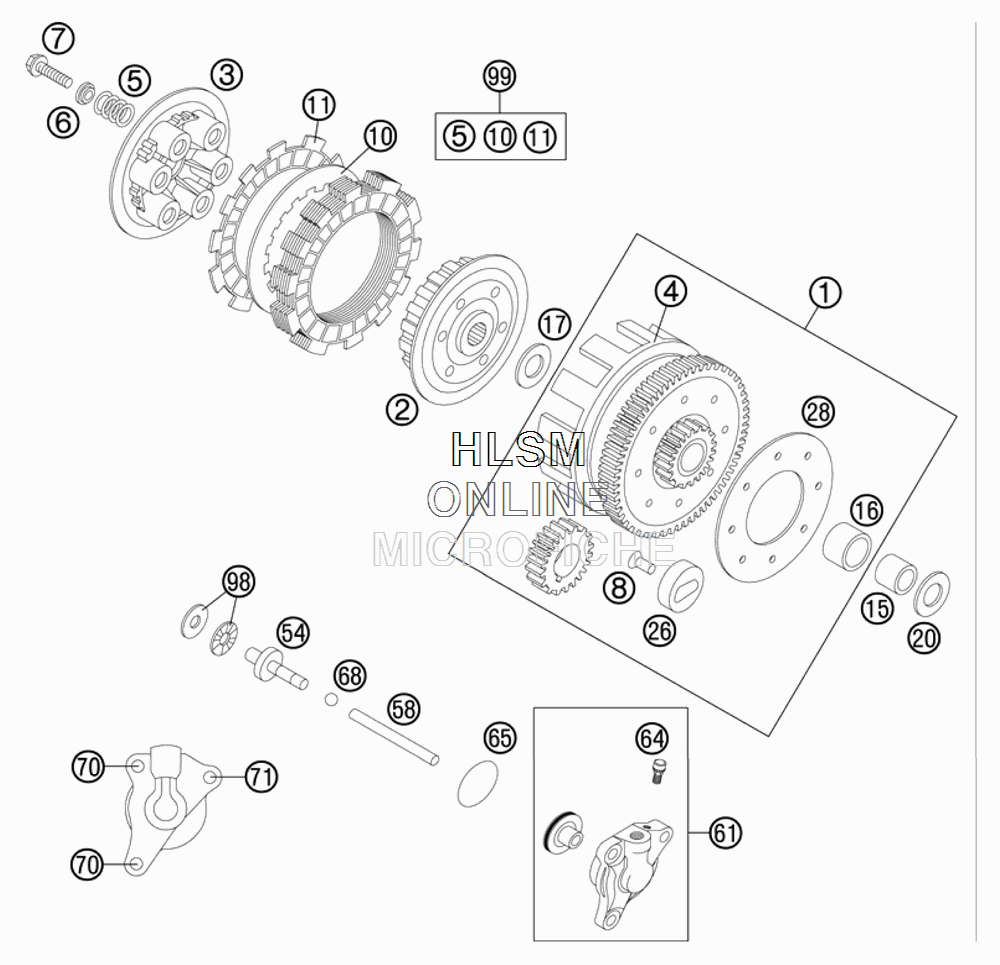

CLUTCH для Ktm 85 SX 17/14 - 2012 года выпуска`

№

Артикул

Название
1

47032001144 OUTER CLUTCH HUB CPL.

OUTER CLUTCH HUB CPL.

0 ₽
2

47032002000 INNER CLUTCH HUB

INNER CLUTCH HUB

39 660 ₽
3

47032003000 PRESSURE CAP

PRESSURE CAP

20 010 ₽
4

47032001100 OUT. CLUTCH HUB LOOSE

OUT. CLUTCH HUB LOOSE

15 770 ₽
5

47032005000 CLUTCH SPRING

CLUTCH SPRING

560 ₽
6

47032006000 SPRING RETAIN. 5,1X10,2X15X2,5

SPRING RETAIN. 5,1X10,2X15X2,5

2 980 ₽
7

0015050203 HH COLLAR SCREW M 5X20 WS=8

HH COLLAR SCREW M 5X20 WS=8

350 ₽
8

47032008000 RIVET DIN0661 5X14

RIVET DIN0661 5X14

290 ₽
10

47032010000 STEEL DISC

STEEL DISC

2 220 ₽
11

47032011000 LINING DISC

LINING DISC

7 360 ₽
15

47032015000 BUSHING 20X25X20,5

BUSHING 20X25X20,5

5 930 ₽
16

47032016000 INNER RING 25X28X20

INNER RING 25X28X20

3 450 ₽
17

47032017000 SUPPORT WASHER 18,5X35X1,5

SUPPORT WASHER 18,5X35X1,5

850 ₽
20

47032020000 STOP DISC 20X32X2

STOP DISC 20X32X2

850 ₽
26

47032026000 DAMPING ELEMENT

DAMPING ELEMENT

620 ₽
28

47032028000 RETAINING PLATE

RETAINING PLATE

2 570 ₽
54

47032054000 PRESSURE PLATE

PRESSURE PLATE

9 000 ₽
58

47032058000 PUSH ROD

PUSH ROD

3 480 ₽
61

75032061044 OUTPUT CYL. WITH BLEEDER SCREW

OUTPUT CYL. WITH BLEEDER SCREW

57 100 ₽
64

54732064000 BLEEDER SCREW WITH CAP

BLEEDER SCREW WITH CAP

5 930 ₽
65

0770300015 O-RING 30,00X1,50 NBR 70

O-RING 30,00X1,50 NBR 70

410 ₽
68

47032068000 BALL D=6MM

BALL D=6MM

90 ₽
70

0015060163 HH COLLAR SCREW M 6X16 WS=8

HH COLLAR SCREW M 6X16 WS=8

290 ₽
71

0015060303 HH COLLAR SCREW M 6X30 SW=8

HH COLLAR SCREW M 6X30 SW=8

560 ₽
98

47032098000 AXIAL NEEDLE BEARING

AXIAL NEEDLE BEARING

2 720 ₽
99

47032010010 CLUTCH KIT

CLUTCH KIT

47 510 ₽
