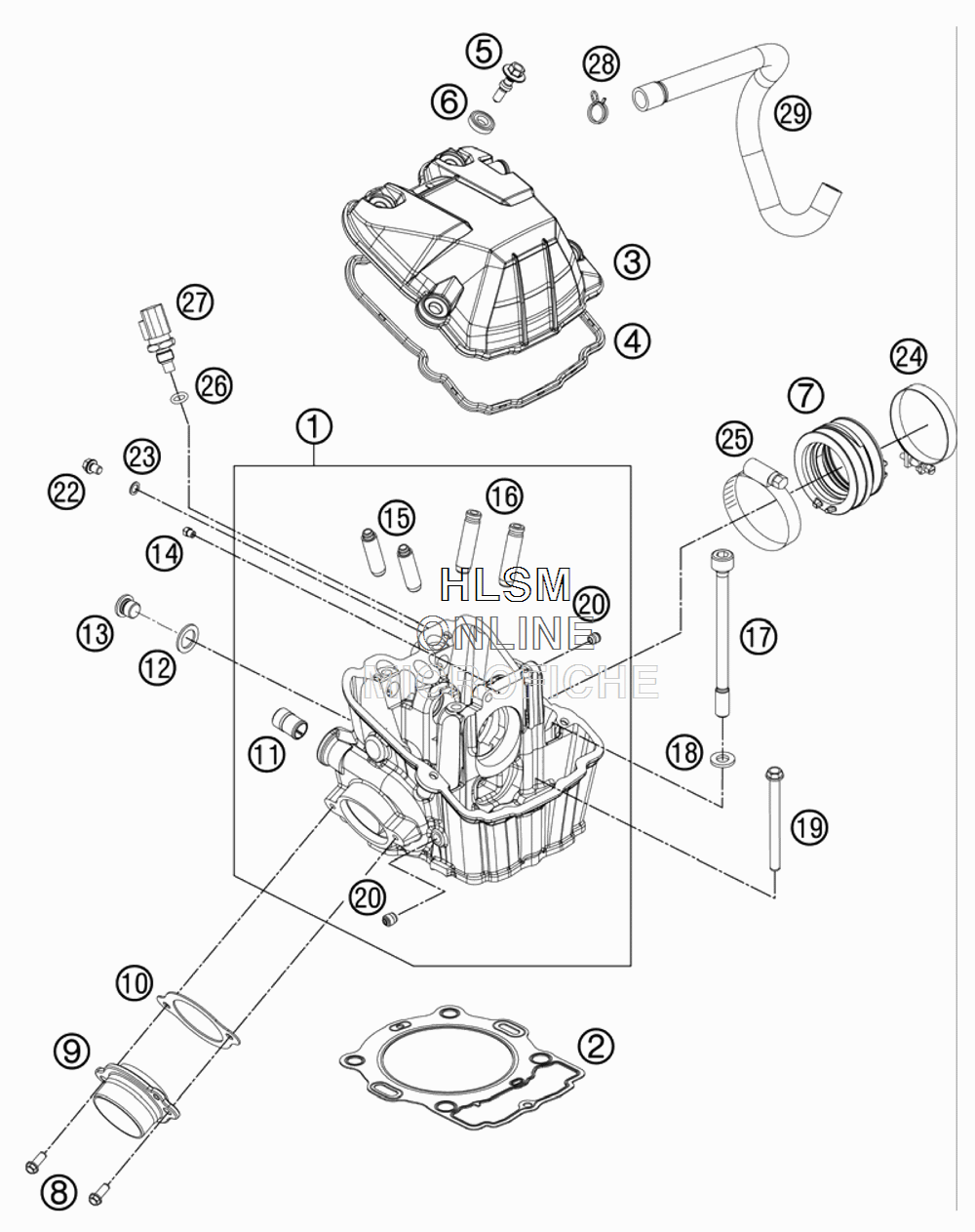

CYLINDER HEAD для Ktm 500 XC-W - 2012 года выпуска

  • №
    Артикул
    Название
  • 1
    78136020044 CYLINDER HEAD CPL.
    CYLINDER HEAD CPL.
  • 2
    78030036000 CYLINDER HEAD GASKET
    CYLINDER HEAD GASKET
  • 3
    7803605200033 VALVE COVER BLACK MATT
    VALVE COVER BLACK MATT
  • 4
    78036053000 VALVE COVER GASKET
    VALVE COVER GASKET
  • 5
    78036054100 VALVE COVER SCREW
    VALVE COVER SCREW
  • 6
    75036052010 DECOUPLING ELEMENT
    DECOUPLING ELEMENT
  • 7
    77236044000 CONNECTION RUBBER EFI
    CONNECTION RUBBER EFI
  • 8
    0025060166 HH COLLAR SCREW M6X16 TX30
    HH COLLAR SCREW M6X16 TX30
  • 9
    78136139000 EXHAUST FLANGE
    EXHAUST FLANGE
  • 10
    78036041000 EXHAUST FLANGE GASKET
    EXHAUST FLANGE GASKET
  • 11
    58030010200 SCREW IN NOZZLE M20X1,5
    SCREW IN NOZZLE M20X1,5
  • 12
    58038022000 CU-SEAL RING DIN7603-12X18X1,5
    CU-SEAL RING DIN7603-12X18X1,5
  • 13
    78036024000 PLUG SCREW SAS M12X1,5
    PLUG SCREW SAS M12X1,5
  • 14
    60030063070 OIL JET 70 M5
    OIL JET 70 M5
  • 15
    77136026001 VALVE GUIDE OUTLET
    VALVE GUIDE OUTLET
  • 16
    78136025001 VALVE GUIDE INTAKE
    VALVE GUIDE INTAKE
  • 17
    78630044000 CYL. HEAD SCREW M10X1,25 L=138
    CYL. HEAD SCREW M10X1,25 L=138
  • 18
    77336089010 WASHER 19X10,5X2,5
    WASHER 19X10,5X2,5
  • 19
    0025060856 HH COLLAR SCREW M6X85 TX30
    HH COLLAR SCREW M6X85 TX30
  • 20
    59030296000 SCREW PLUG
    SCREW PLUG
  • 22
    0025060086 HH COLLAR SCREW M6X8 TX30
    HH COLLAR SCREW M6X8 TX30
  • 23
    0603061001 CU-SEAL RING DIN7603-6X10X1
    CU-SEAL RING DIN7603-6X10X1
  • 24
    61036047000 HOSE CLAMP GEMI 63MM
    HOSE CLAMP GEMI 63MM
  • 25
    77236048000 HOSE CLAMP GEMI 58MM
    HOSE CLAMP GEMI 58MM
  • 26
    0770100020 O-RING 10,00X2,00 SILCONE
    O-RING 10,00X2,00 SILCONE
  • 27
    60011252000 TEMPERAT.-SENSOR WATER LC8
    TEMPERAT.-SENSOR WATER LC8
  • 28
    58431082100 YDNAC-CLAMP 10173 (16MM)
    YDNAC-CLAMP 10173 (16MM)
  • 29
    78130087000 ENGINE BREATHER TUBE
    ENGINE BREATHER TUBE
