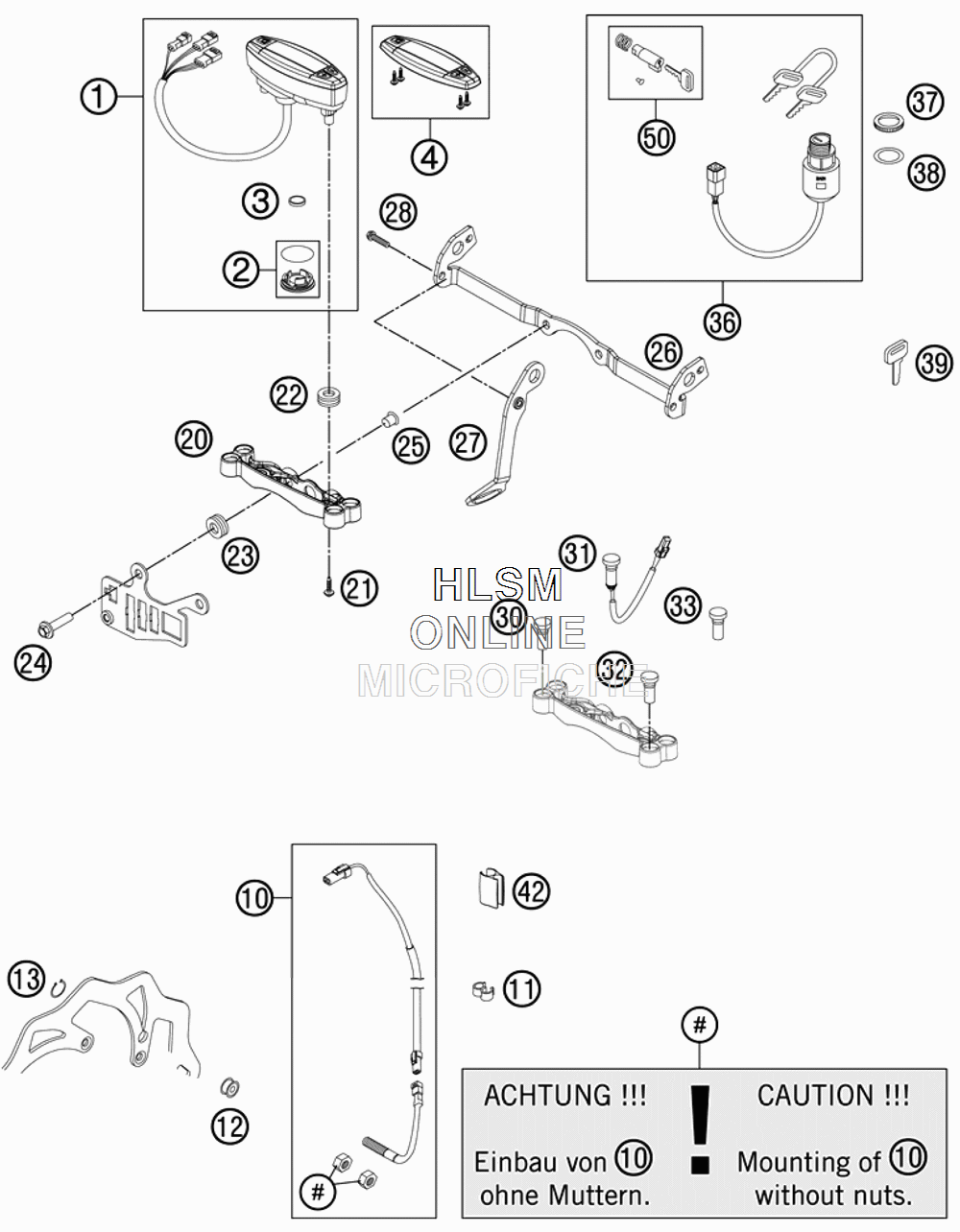

INSTRUMENTS/LOCK SYSTEM для Ktm 500 EXC - 2012 года выпуска`
-
№АртикулНазвание
-
154814069000 SPEEDOMETER KM/H F. 21"SPEEDOMETER KM/H F. 21"
-
254814069010 BATTERY COVER F. SPEEDOM.BATTERY COVER F. SPEEDOM.
-
358314068000 BATTERY F. SPEEDOM. M.A.E.BATTERY F. SPEEDOM. M.A.E.
-
454814069020 SPEEDOMETER TOP PARTSPEEDOMETER TOP PART
-
1054814068100 CABLE FOR DIGITAL SPEEDOM.CABLE FOR DIGITAL SPEEDOM.
-
1160111094000 CLAMP 5/7 MMCLAMP 5/7 MM
-
1254814069050 MAGNET FOR DIGITAL SPEEDOM.MAGNET FOR DIGITAL SPEEDOM.
-
130471009104 CIRCLIP DIN0471- 9X1 INOXCIRCLIP DIN0471- 9X1 INOX
-
2081214060000 SPEEDOMETER BRACKETSPEEDOMETER BRACKET
-
210081050121 SCREW FOR PLASTIC K50X12 T20SCREW FOR PLASTIC K50X12 T20
-
2258214069051 RUBBER GROMMET 16X10,8X3RUBBER GROMMET 16X10,8X3
-
2331008060000 RUBBER SLEEVE D=8MM OPENRUBBER SLEEVE D=8MM OPEN
-
240024060256 HH COLLAR SCREW M6X25 TX30HH COLLAR SCREW M6X25 TX30
-
2558314060050 SPACER BUSH. F. SPEEDOMET.BRA.SPACER BUSH. F. SPEEDOMET.BRA.
-
2678014033000 FLASHER BRACKETFLASHER BRACKET
-
2778011065050 RETAINING PLATE IGN. LOCKRETAINING PLATE IGN. LOCK
-
280025050126 HH COLLAR SCREW M5X12 TX30HH COLLAR SCREW M5X12 TX30
-
3058011024300 FLASHER INDICAT.LIGHT GREENFLASHER INDICAT.LIGHT GREEN
-
3181214083000 INDICATOR LIGHT LED YELLOW FIINDICATOR LIGHT LED YELLOW FI
-
3258011021300 H.BEAM INDICATOR LIGHT BLUEH.BEAM INDICATOR LIGHT BLUE
-
3381214086000 INDICATOR LIGHT RESERVEINDICATOR LIGHT RESERVE
-
3678011065100 IGNITION LOCK SET STR.LEIGNITION LOCK SET STR.LE
-
3750311066050 IGNITION LOCK NUT M24X1IGNITION LOCK NUT M24X1
-
3858411066450 WASHER F. IGNITION LOCKWASHER F. IGNITION LOCK
-
3940011166200 KEY BLANK BLACK "T" GRIPKEY BLANK BLACK "T" GRIP
-
4254813026000 CABLE SUPPORT 10/6MMCABLE SUPPORT 10/6MM
-
5078003035000 STEERING HEAD LOCKSTEERING HEAD LOCK
Все узлы модели:
- ACCESSORIES KIT
- AIR FILTER
- BALANCER SHAFT
- BRAKE CALIPER FRONT
- BRAKE CALIPER REAR
- CLUTCH
- CLUTCH COVER
- COOLING SYSTEM
- CRANKSHAFT PISTON
- CYLINDER
- CYLINDER HEAD
- DECAL
- ELECTRIC STARTER
- ENGINE CASE
- EVAPORATIVE CANISTER
- EXHAUST SYSTEM
- FRAME
- FRONT FORK DISASSEMBLED
- FRONT FORK TRIPLE CLAMP
- FRONT WHEEL
- FUEL PUMP
- HAND BRAKE CYLINDER
- IGNITION SYSTEM
- • INSTRUMENTS/LOCK SYSTEM
- KICK STARTER
- LIGHTING SYSTEM
- LUBRICATING SYSTEM
- MASK FENDERS
- MONOSHCOK DISASSEMBLED
- MONOSHOCK
- REAR BRAKE CONTROL
- REAR WHEEL
- SECONDARY AIR SYSTEM SAS
- SHIFTING MECHANISM
- SIDE/CENTER STAND
- SWINGARM
- TANK SEAT COVER
- THROTTLE BODY
- TIMING DRIVE
- TRANSMISSION - COUNTERSHAFT
- TRANSMISSION - MAIN SHAFT
- VALVE DRIVE
- WATER PUMP
- WIRING HARNESS
