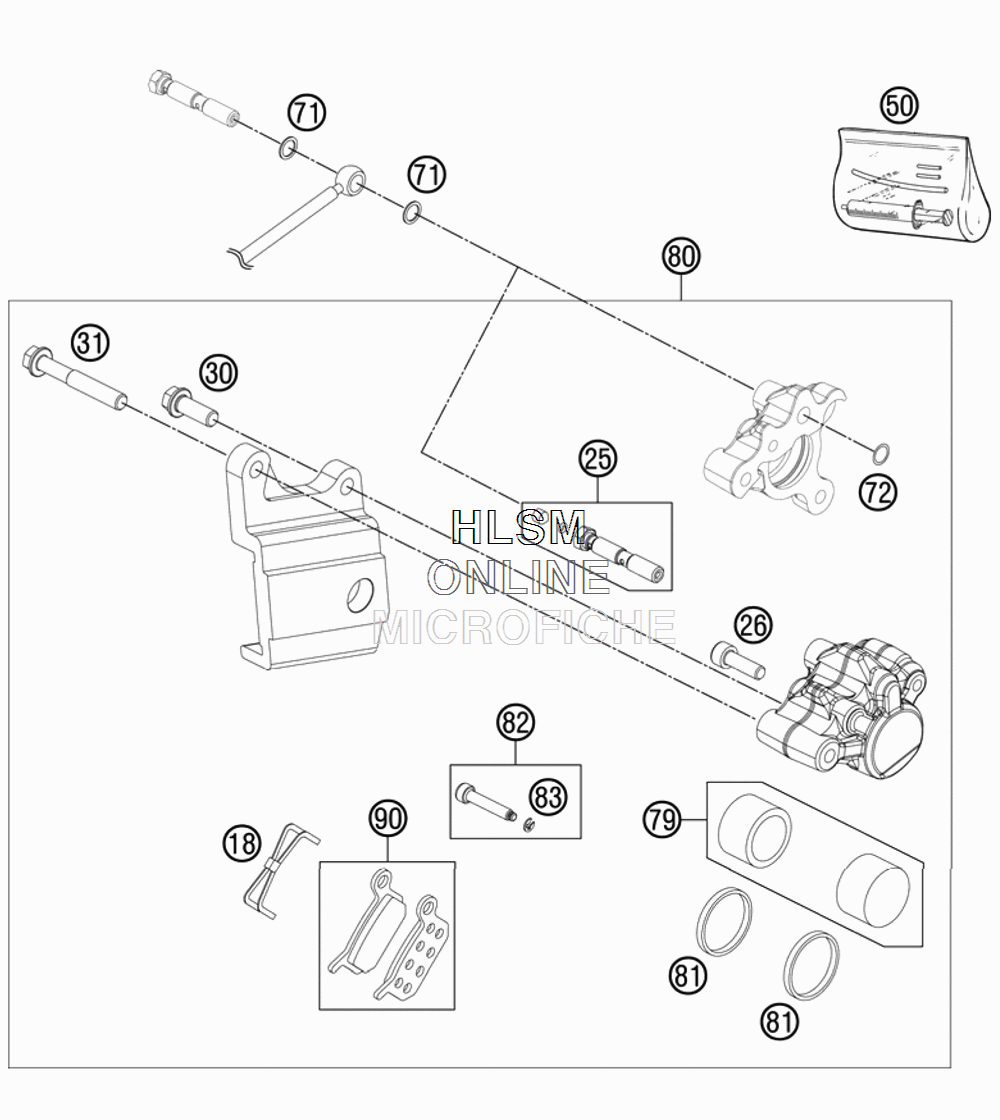

BRAKE CALIPER REAR для Ktm 50 SX - 2012 года выпуска`
-
№АртикулНазвание
-
1845113018000 RETAINING SPRINGRETAINING SPRING
-
2546113225000 HOLLOW SCREW CPL.HOLLOW SCREW CPL.
-
260912050163 AH SCREW DIN0912-M 5X16AH SCREW DIN0912-M 5X16
-
300025060206 HH COLLAR SCREW M6X20 TX30HH COLLAR SCREW M6X20 TX30
-
310025060406 HH COLLAR SCREW M6X40 TX30HH COLLAR SCREW M6X40 TX30
-
5045119050000 BLEEDER INJECTION-SETBLEEDER INJECTION-SET
-
710770060019 O-RING 6,00X1,00 FORMULAO-RING 6,00X1,00 FORMULA
-
720770080019 O-RING 8,00X1,00 FORMULAO-RING 8,00X1,00 FORMULA
-
7945113019100 REPAIR KIT BRAKEPISTONREPAIR KIT BRAKEPISTON
-
8045113080000 BRAKE CALIPER REAR CPL.BRAKE CALIPER REAR CPL.
-
810770022020 O-RING 22X2X2 EPDMO-RING 22X2X2 EPDM
-
8245113225000 AH SCREW + CIRCLIPAH SCREW + CIRCLIP
-
830799025000 TAB WASHER DIN6799 RS2,5TAB WASHER DIN6799 RS2,5
-
9045113030000 BRAKE PAD SETBRAKE PAD SET
