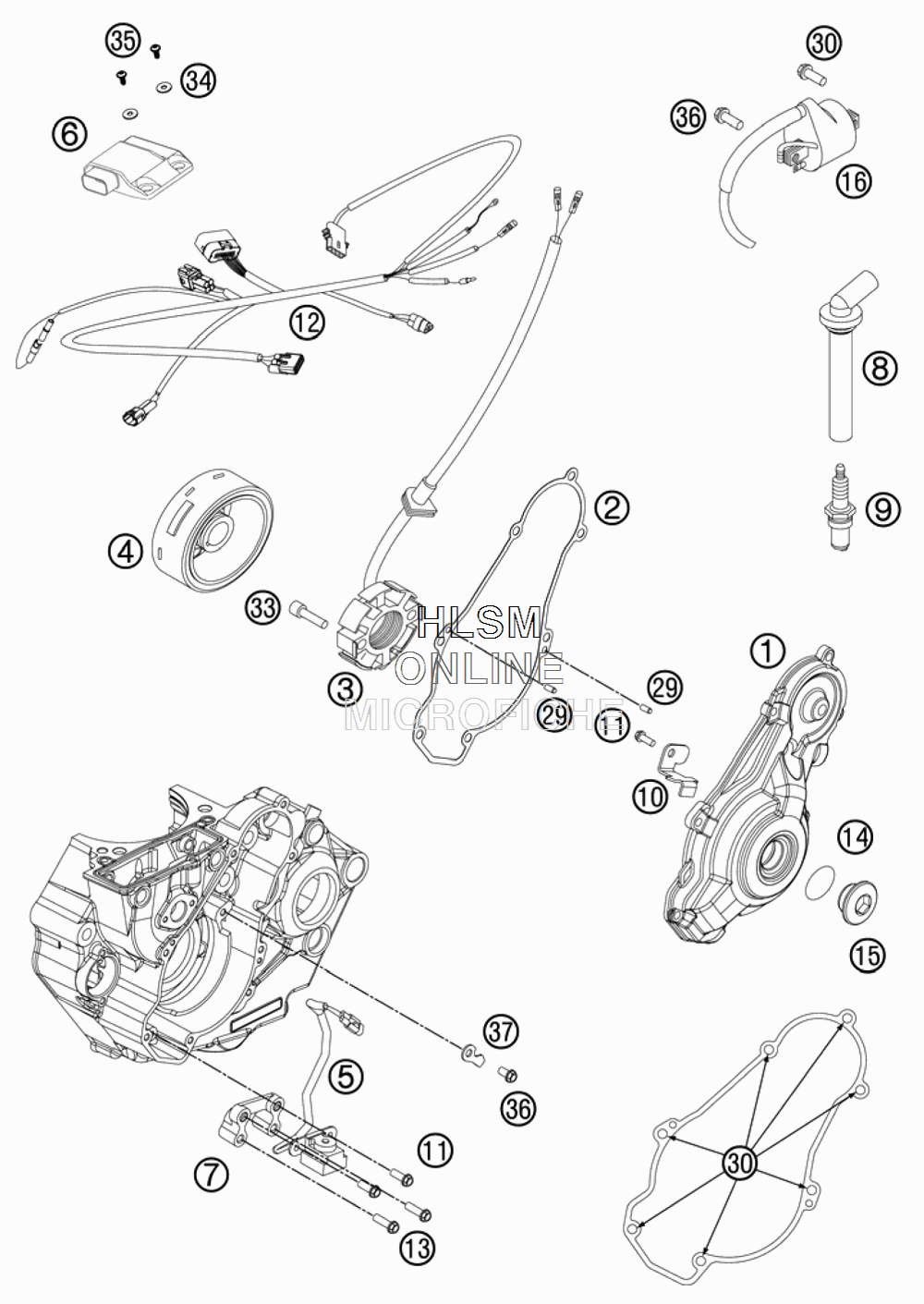

IGNITION SYSTEM для Ktm 450 SX-F - 2012 года выпуска`

№

Артикул

Название
1

7733000210015 IGNITION COVER

IGNITION COVER

24 120 ₽
2

77330040100 IGNITION COVER GASKET

IGNITION COVER GASKET

1 930 ₽
3

77339004000 STATOR SX

STATOR SX

49 150 ₽
4

77039005000 FLYWHEEL

FLYWHEEL

92 630 ₽
5

77339034000 PULSER COIL KOKUSAN "PU5165"

PULSER COIL KOKUSAN "PU5165"

17 290 ₽
6

77339031000 CDI UNIT KOKUSAN

CDI UNIT KOKUSAN

71 580 ₽
7

77339035100 ADAPTER PULSER COIL

ADAPTER PULSER COIL

8 140 ₽
8

77339090000 SPARK PLUG NGK-XD05EMGK

SPARK PLUG NGK-XD05EMGK

9 180 ₽
9

77039093000 SPARK PLUG NGK CR9EKB

SPARK PLUG NGK CR9EKB

3 520 ₽
10

77330002050 WIRE RETAINING BRACKET

WIRE RETAINING BRACKET

1 460 ₽
11

0025050106 COLLAR SCREW M5X12 ISA30

COLLAR SCREW M5X12 ISA30

240 ₽
12

77339532000 WIRING HARNESS FOR CDI-BOX

WIRING HARNESS FOR CDI-BOX

28 710 ₽
13

0025050256 HH COLLAR SCREW M5X25 ISA30

HH COLLAR SCREW M5X25 ISA30

210 ₽
14

0770220020 O-RING 22,00X2,00 B70

O-RING 22,00X2,00 B70

290 ₽
15

6003009400030 SCREW PLUG M24X1,5 PA 6.6

SCREW PLUG M24X1,5 PA 6.6

880 ₽
16

59039006000 IGNITIONCOIL "IG5128"

IGNITIONCOIL "IG5128"

15 300 ₽
29

0402040980 NEEDLE ROL.DIN5402 NRB 4X9,8

NEEDLE ROL.DIN5402 NRB 4X9,8

560 ₽
30

0025060206 HH COLLAR SCREW M6X20

HH COLLAR SCREW M6X20

500 ₽
33

0912050253 AH SCREW DIN0912-M 5X25

AH SCREW DIN0912-M 5X25

160 ₽
34

0021050003 WASHER DIN9021-A 5,3

WASHER DIN9021-A 5,3

120 ₽
35

0081050121 SCREW FOR PLASTIC K50X12

SCREW FOR PLASTIC K50X12

290 ₽
36

0025060166 HH COLLAR SCREW M6X16

HH COLLAR SCREW M6X16

500 ₽
37

77340097100 RETAINING PLATE F.PICK UP CABEL

RETAINING PLATE F.PICK UP CABEL

910 ₽
