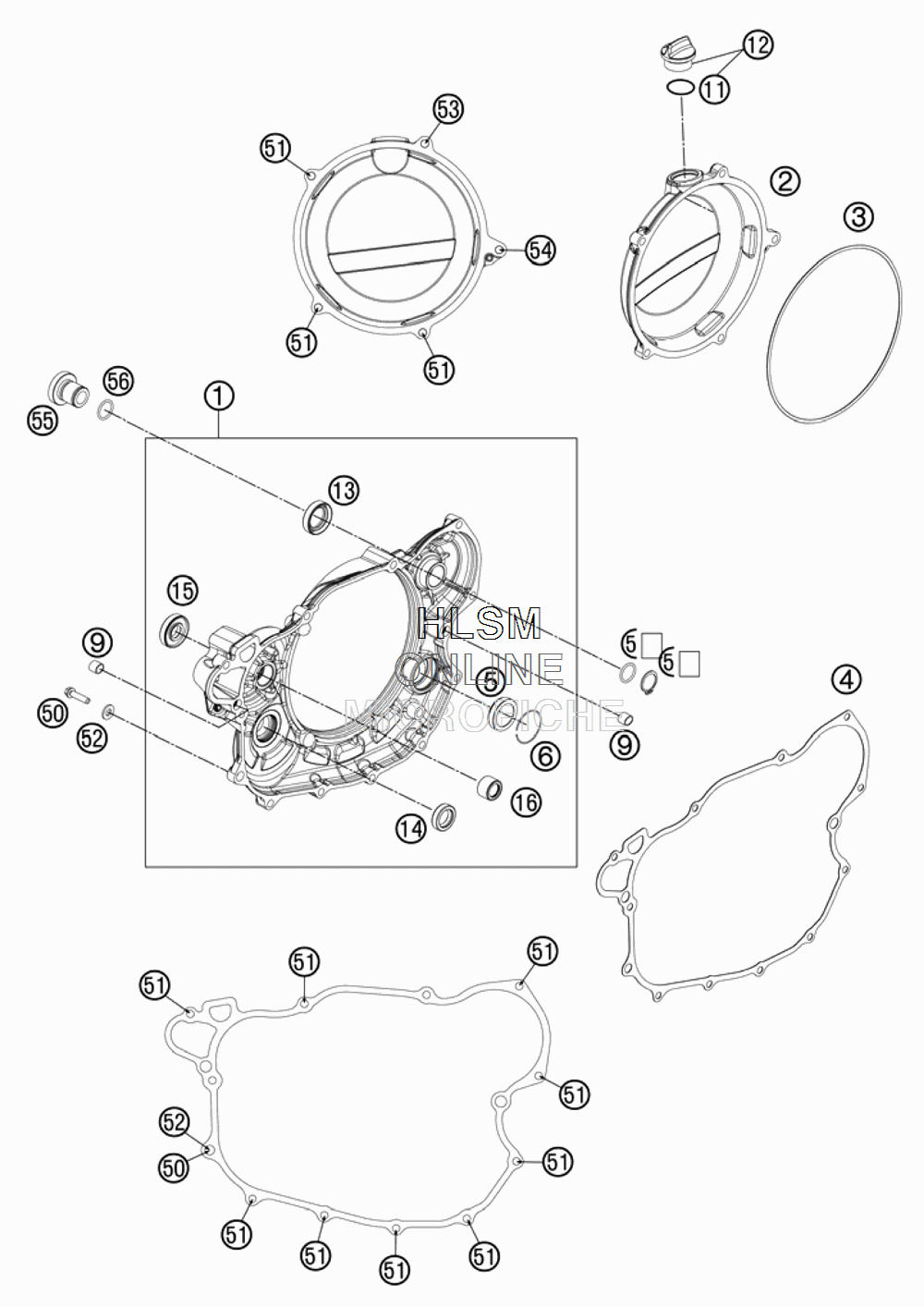

CLUTCH COVER для Ktm 450 SX-F FACTORY - 2012 года выпуска

  • №
    Артикул
    Название
  • 1
    78130001144 CLUTCH COVER CPL.
    CLUTCH COVER CPL.
  • 2
    7813002600015 CLUTCH COVER OUTSIDE
    CLUTCH COVER OUTSIDE
  • 3
    78130027000 GASKET - CLUTCH OUTER COVER
    GASKET - CLUTCH OUTER COVER
  • 4
    78130025000 CLUTCH COVER GASKET
    CLUTCH COVER GASKET
  • 5
    78030095100 OIL LEVEL GLASS VITON
    OIL LEVEL GLASS VITON
  • 6
    61030019050 CIRCLIP OIL LEVEL GLASS
    CIRCLIP OIL LEVEL GLASS
  • 9
    49030090000 DOWEL 9,8 X 7 X 10
    DOWEL 9,8 X 7 X 10
  • 11
    0770191015 O-RING 19,00X3,00 NBR
    O-RING 19,00X3,00 NBR
  • 12
    58030120000 OIL FILLER CAP M24X3 WITH O-R
    OIL FILLER CAP M24X3 WITH O-R
  • 13
    0760193070 SHAFT SEAL RING 19X30X7 B
    SHAFT SEAL RING 19X30X7 B
  • 14
    0760142472 SHAFT SEAL RING 14X24X7 VITON
    SHAFT SEAL RING 14X24X7 VITON
  • 15
    0760123073 SHAFT SEAL RING 12X30X7 PTFE
    SHAFT SEAL RING 12X30X7 PTFE
  • 16
    0618121912 NEEDLE BUSH NK1212
    NEEDLE BUSH NK1212
  • 50
    78030080000 LOCATING SCREW
    LOCATING SCREW
  • 51
    0025060256 HH COLLAR SCREW M6X25 TX30
    HH COLLAR SCREW M6X25 TX30
  • 52
    58030081000 CU-SEAL RING 8 X 14 X 3
    CU-SEAL RING 8 X 14 X 3
  • 53
    0025060556 HH COLLAR SCREW M6X55 TX30
    HH COLLAR SCREW M6X55 TX30
  • 54
    0025060606 HH COLLAR SCREW M6X60 TX30
    HH COLLAR SCREW M6X60 TX30
  • 55
    83033056000 KICK-STARTER PLUG
    KICK-STARTER PLUG
  • 56
    0770160021 O-RING 16,00X2,00 VITON
    O-RING 16,00X2,00 VITON
  • 57
    0770180020 O-RING 18,00X2,00 NBR 70
    O-RING 18,00X2,00 NBR 70
  • 58
    0471190120 CIRCLIP DIN0471--19X1 ,2
    CIRCLIP DIN0471--19X1 ,2
