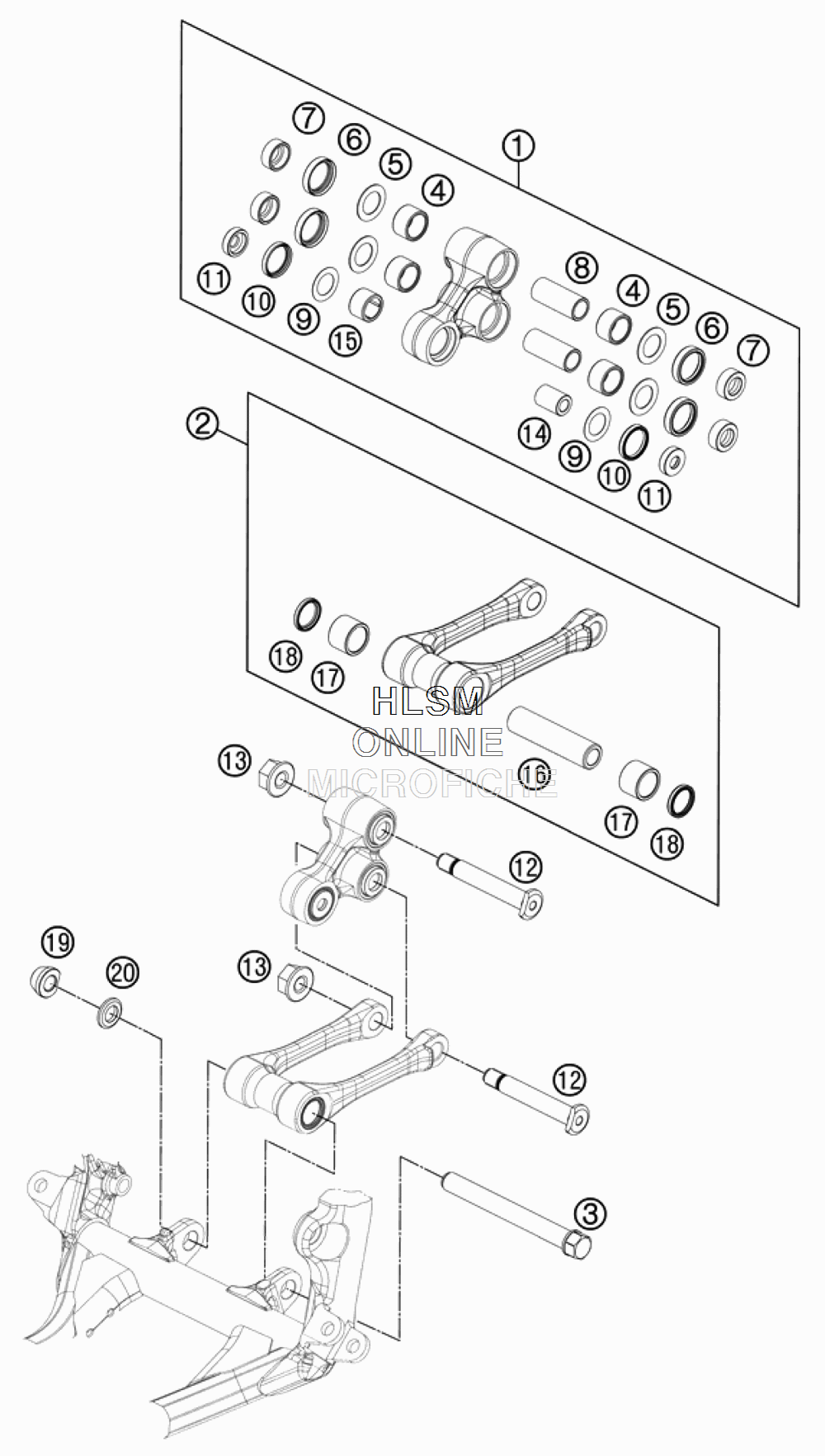

PRO LEVER LINKING для Ktm 350 XC-F - 2012 года выпуска`

№

Артикул

Название
1

7720408004401 TRIANGLE LEVER CPL.

TRIANGLE LEVER CPL.

65 830 ₽
2

7720408304401 PULL ROD CPL.

PULL ROD CPL.

48 650 ₽
3

77404084000 BOLT TIE-ROD BEARING M14

BOLT TIE-ROD BEARING M14

11 900 ₽
4

54603097000 NEEDLE BUSH HK 2016

NEEDLE BUSH HK 2016

4 060 ₽
5

59033080000 SHIM 20X32X1

SHIM 20X32X1

440 ₽
6

0760253270 SHAFT SEAL RING 25X32X7

SHAFT SEAL RING 25X32X7

1 610 ₽
7

77204080030 BUCKET FOR SHAFT SEAL RING

BUCKET FOR SHAFT SEAL RING

2 410 ₽
8

54603081000 BUSHING SLEEVE 15 X 20 X 48

BUSHING SLEEVE 15 X 20 X 48

6 690 ₽
9

50180604 SHIM D29,75 X D19 X T0,4

SHIM D29,75 X D19 X T0,4

370 ₽
10

0760243050 SHAFT SEAL RING 24X30X5

SHAFT SEAL RING 24X30X5

1 000 ₽
11

77204080020 BUCKET FOR SHAFT SEAL RING

BUCKET FOR SHAFT SEAL RING

2 270 ₽
12

77204085100 BOLT FOR CANTILEVER M14

BOLT FOR CANTILEVER M14

12 790 ₽
13

54603015000 SELF LOCKING NUT M14X1,5 WS=19

SELF LOCKING NUT M14X1,5 WS=19

1 340 ₽
14

77204080010 BEARING SLEEVE 10X18X25,5

BEARING SLEEVE 10X18X25,5

1 920 ₽
15

0618182416 NEEDLE BUSH HN1816 RS 18/24/16

NEEDLE BUSH HN1816 RS 18/24/16

3 480 ₽
16

77204084010 BEARING SLEEVE

BEARING SLEEVE

5 980 ₽
17

0618222820 NEEDLE BEARING HK2220 22X28X20

NEEDLE BEARING HK2220 22X28X20

3 040 ₽
18

0760222841 SHAFT SEAL RING G22X28X4

SHAFT SEAL RING G22X28X4

930 ₽
19

77404084020 NUT TIE-ROD BEARING

NUT TIE-ROD BEARING

680 ₽
20

77404084010 WASHER TIE-ROD BEARING G M14

WASHER TIE-ROD BEARING G M14

1 840 ₽
