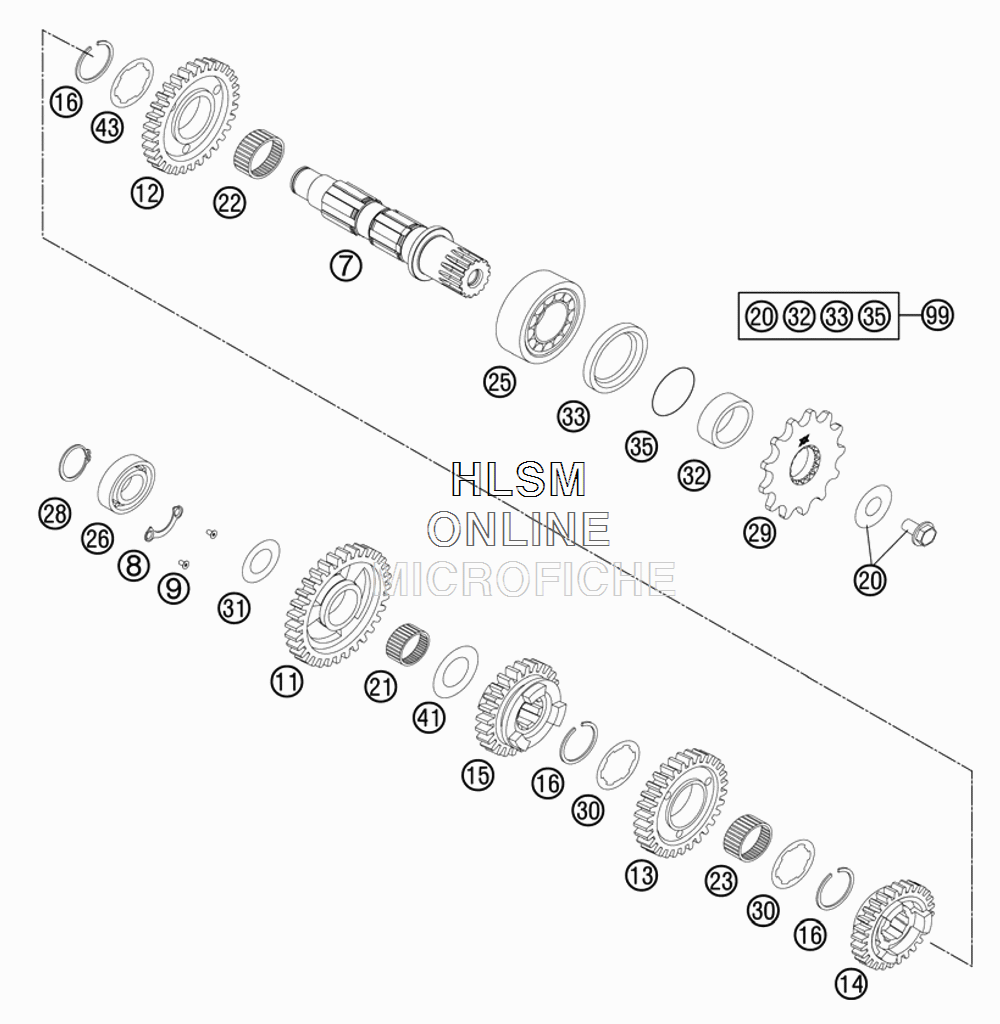

TRANSMISSION - COUNTERSHAFT для Ktm 350 SX-F - 2012 года выпуска`

№

Артикул

Название
7

77233010000 COUNTERSHAFT

COUNTERSHAFT

27 690 ₽
8

78033132000 TAB WASHER BEARING COUNT.SHAFT

TAB WASHER BEARING COUNT.SHAFT

1 140 ₽
9

0019050103 INT. TORX FLAT HEAD M 5X10 8.8

INT. TORX FLAT HEAD M 5X10 8.8

290 ₽
11

54833011000 IDLER GEAR 1ST G. 28-T "1S28"

IDLER GEAR 1ST G. 28-T "1S28"

19 980 ₽
12

54833012100 IDLER GEAR 2ND G. 26-T "2S26"

IDLER GEAR 2ND G. 26-T "2S26"

19 120 ₽
13

54833013000 IDLER GEAR 3RD G. 24-T "3S24"

IDLER GEAR 3RD G. 24-T "3S24"

0 ₽
14

54833014000 SLIDING GEAR 4TH G.24-T "4S24"

SLIDING GEAR 4TH G.24-T "4S24"

49 680 ₽
15

54833015000 SLIDING GEAR 5TH G.21-T "5S21"

SLIDING GEAR 5TH G.21-T "5S21"

41 240 ₽
16

77033022000 AXIAL-CIRCLIP 25X1,65

AXIAL-CIRCLIP 25X1,65

970 ₽
20

59033034044 SCREW 10.9+SPRING WASHER

SCREW 10.9+SPRING WASHER

2 050 ₽
21

0405202413 NEEDLE BEAR. K20X24X13

NEEDLE BEAR. K20X24X13

2 920 ₽
22

0405242812 NEDDLE BEAR. K24X28X11,9 DIV.

NEDDLE BEAR. K24X28X11,9 DIV.

1 670 ₽
23

0405222613 NEEDLE BEAR. K 22X26X13 TN

NEEDLE BEAR. K 22X26X13 TN

2 340 ₽
25

49030023000 CYL.ROLL BEARING NJ205

CYL.ROLL BEARING NJ205

20 130 ₽
26

0625062035 BALL BEARING 6203 JR2 C3

BALL BEARING 6203 JR2 C3

3 890 ₽
28

0471170015 CIRCLIP DIN 0471-17X1, 5

CIRCLIP DIN 0471-17X1, 5

210 ₽
29

50033029013 FRONT SPROCKET 13-T

FRONT SPROCKET 13-T

8 110 ₽
29

50033029014 FRONT SPROCKET 14-T

FRONT SPROCKET 14-T

8 110 ₽
30

59033030000 STOP DISC 25,2X32X1,5

STOP DISC 25,2X32X1,5

500 ₽
31

56033030000 STOP DISC 17,2X30X1

STOP DISC 17,2X30X1

970 ₽
32

54633014100 SPACER BUSHING 12MM

SPACER BUSHING 12MM

5 140 ₽
33

0760324571 SHAFT SEAL RING 32X45X7 BSLNBR

SHAFT SEAL RING 32X45X7 BSLNBR

1 140 ₽
35

0770020220 O-RING 25,12X1,78 NBR70

O-RING 25,12X1,78 NBR70

590 ₽
41

59033080000 SHIM 20X32X1

SHIM 20X32X1

440 ₽
43

50333043000 STOP DISC 25,2X32X1

STOP DISC 25,2X32X1

1 230 ₽
99

00050000941 COUNTER SHAFT REP.KIT

COUNTER SHAFT REP.KIT

8 040 ₽
