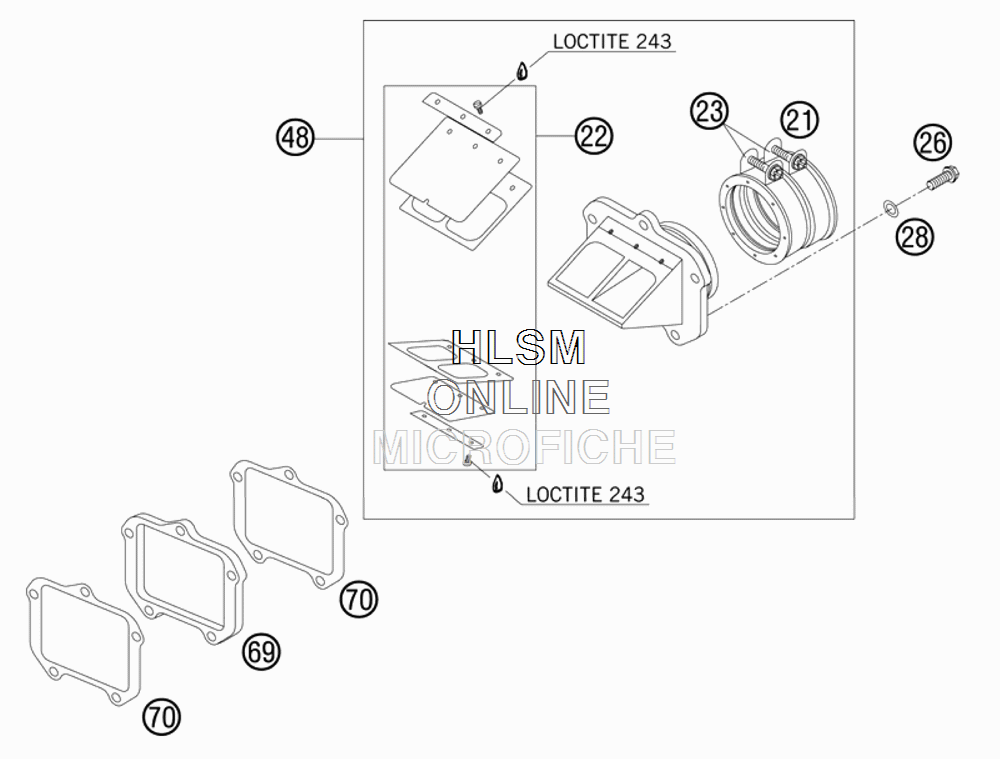

REED VALVE CASE для Ktm 200 XC-W - 2012 года выпуска
-
№АртикулНазвание
-
2154736044000 RUBBER BOOT CPL. BOYESENRUBBER BOOT CPL. BOYESEN
-
2254730052000 REED VALVE CPL. BOYESENREED VALVE CPL. BOYESEN
-
2354830061000 CLAMP 54/09 MIXEDCLAMP 54/09 MIXED
-
260025060256 HH COLLAR SCREW M6X25 TX30HH COLLAR SCREW M6X25 TX30
-
280137060003 SPRING WASHER DIN0137-B 6SPRING WASHER DIN0137-B 6
-
4854730051044 REED VALVE ASSY CPL.REED VALVE ASSY CPL.
-
6954630098000 REED VALVE PLATE 6MMREED VALVE PLATE 6MM
-
7050330098050 GASKET REED V.PLATE V -FORCEGASKET REED V.PLATE V -FORCE
