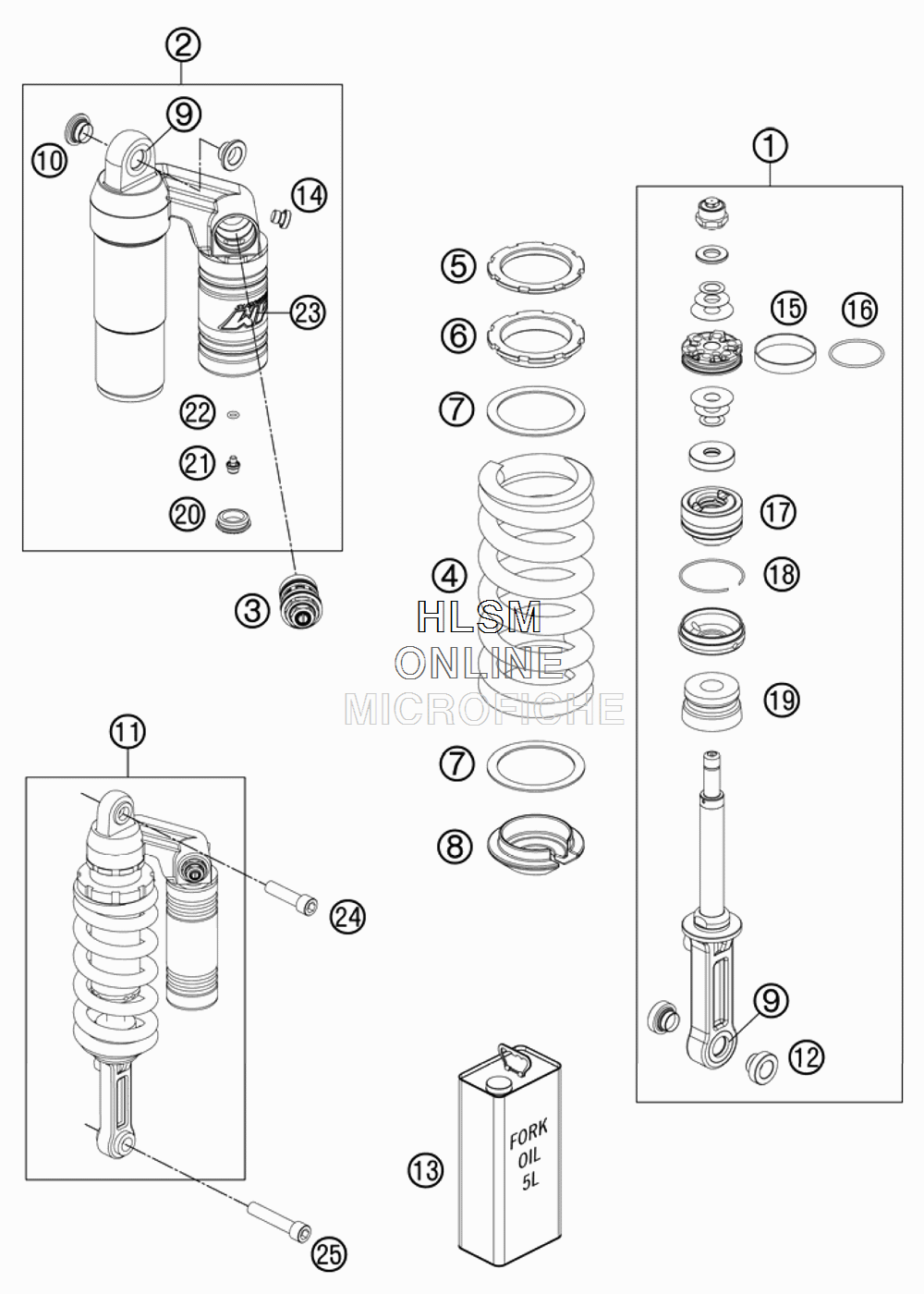

MONOSHOCK для Ktm 990 RC8R SUPER DUKE BLACK - 2011 года выпуска

  • №
    Артикул
    Название
  • 1
    46180794S1 MONOSHOCK LOWER PART
    MONOSHOCK LOWER PART
  • 2
    46180854SA MONOSHOCK CASE TOP
    MONOSHOCK CASE TOP
  • 3
    50180213S10 DCC-COMPR.DAMP.CONTROL CPL.
    DCC-COMPR.DAMP.CONTROL CPL.
  • 4
    91010077S SPRING (59) 160-185 D=13,5
    SPRING (59) 160-185 D=13,5
  • 4
    91010078S SPRING (59) 170-185 D 14
    SPRING (59) 170-185 D 14
  • 4
    91010079S SPRING (59) 180-185 D=14,0
    SPRING (59) 180-185 D=14,0
  • 5
    46180766 COUNTERNUT
    COUNTERNUT
  • 6
    46180765 ADJUSTING NUT M54X1,5
    ADJUSTING NUT M54X1,5
  • 7
    50180410 INTERM.RING D=58
    INTERM.RING D=58
  • 8
    46180396 SPRING RETAINER H=15 D=28
    SPRING RETAINER H=15 D=28
  • 9
    R15009 BEARING KIT KGW 1525
    BEARING KIT KGW 1525
  • 10
    50180366 ADAPTOR BUSH KGW 14X24
    ADAPTOR BUSH KGW 14X24
  • 11
    15187E01 MONOSHOCK 990 SUPERDUKE
    MONOSHOCK 990 SUPERDUKE
  • 12
    46180362 ADAPTOR BUSH KGW 14X32
    ADAPTOR BUSH KGW 14X32
  • 13
    50180751S1 SHOCK ABSORBER FLUID 5 LT
    SHOCK ABSORBER FLUID 5 LT
  • 14
    50180095 BLEED PLUG R 1/8
    BLEED PLUG R 1/8
  • 15
    46810361 PISTON RING
    PISTON RING
  • 16
    46810035 O-RING VITON 37,82X1,78
    O-RING VITON 37,82X1,78
  • 17
    46180669S ADAPTOR CPL. D=46 H=28
    ADAPTOR CPL. D=46 H=28
  • 18
    46810010 CIRCLIP 49X1,5
    CIRCLIP 49X1,5
  • 19
    46180365 BUMP RUBBER WP60 H=30 D=18-26
    BUMP RUBBER WP60 H=30 D=18-26
  • 20
    46811208 RUBBER CAP "DO NOT OPEN"
    RUBBER CAP "DO NOT OPEN"
  • 21
    36120151 SCREW PLUG M5X6
    SCREW PLUG M5X6
  • 22
    46810893 O-RING NBR 5,28X1,78
    O-RING NBR 5,28X1,78
  • 23
    52000086 STICKER WP TRANSPARENT 35X55
    STICKER WP TRANSPARENT 35X55
  • 24
    60004016000 SCREW M14X1,5 L=55MM
    SCREW M14X1,5 L=55MM
  • 25
    60004017000 SCREW M14X1,5 L=73MM
    SCREW M14X1,5 L=73MM
