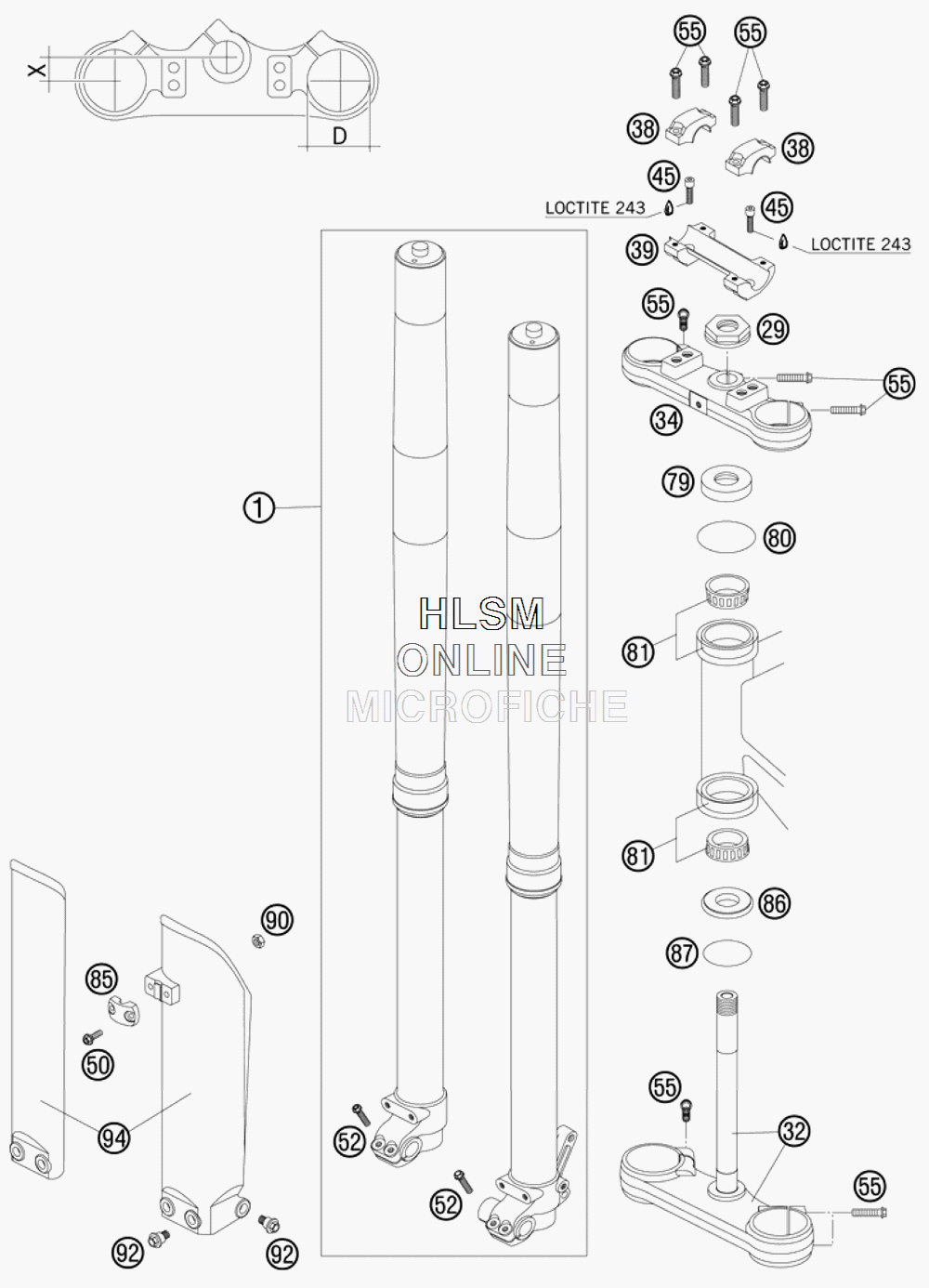

FRONT FORK для Ktm 85 SX 19/16 - 2011 года выпуска

  • №
    Артикул
    Название
  • 1*
    05187K0501 FORK KTM 85/105 SX
    FORK KTM 85/105 SX
  • 29
    59030029000 HH NUT M20X1,5 WS=27 RIGHT
    HH NUT M20X1,5 WS=27 RIGHT
  • 32
    47001032014 BOT.TRIPLE CLAMP CPL. 85 SX
    BOT.TRIPLE CLAMP CPL. 85 SX
  • 34
    47001034014 TOP TRIPLE CLAMP 85 SX
    TOP TRIPLE CLAMP 85 SX
  • 38
    50301038000 HANDLEBAR CLAMP D=22MM
    HANDLEBAR CLAMP D=22MM
  • 39
    59001039000 HANDLEBAR SUPPORT 22MM 2T
    HANDLEBAR SUPPORT 22MM 2T
  • 45*
    0032100256S AH-COLLAR SCREW M10X25 ISA45
    AH-COLLAR SCREW M10X25 ISA45
  • 50
    0025050166 HH COLLAR SCREW M5X16 TX30
    HH COLLAR SCREW M5X16 TX30
  • 52
    0025060206 HH COLLAR SCREW M6X20 TX30
    HH COLLAR SCREW M6X20 TX30
  • 55
    0025080306 HH COLLAR SCREW M8X30 TX40
    HH COLLAR SCREW M8X30 TX40
  • 79
    49001086000 COVERING CAP
    COVERING CAP
  • 80
    0770021300 O-RING 40,94X2,62 NBR70
    O-RING 40,94X2,62 NBR70
  • 81
    49001081000 TAPERED ROLLER BEARING 32004X
    TAPERED ROLLER BEARING 32004X
  • 85*
    5460108500028 BRAKE HOSE CLIP
    BRAKE HOSE CLIP
  • 86
    46001086000 PROTECTION RING 20,1X39X5
    PROTECTION RING 20,1X39X5
  • 87
    0770360030 O-RING 36,00X3,00 NBR
    O-RING 36,00X3,00 NBR
  • 90
    0985050003 SELF LOCKING NUT DIN0985-M 5
    SELF LOCKING NUT DIN0985-M 5
  • 92
    59001092050 SPECIAL SCREW M6X12,5 WS=8
    SPECIAL SCREW M6X12,5 WS=8
  • 94*
    4700109400028 FORK PROTECTOR SET 85/105 WHI
    FORK PROTECTOR SET 85/105 WHI
