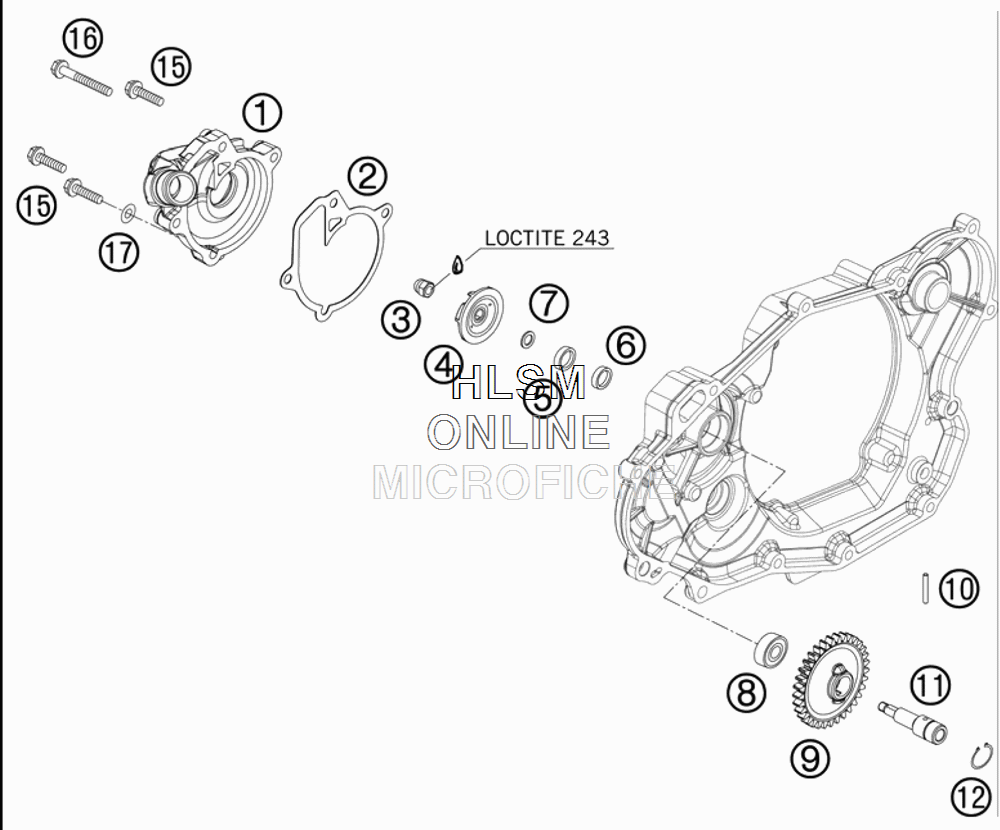

WATER PUMP для Ktm 530 XC-W SIX DAY - 2011 года выпуска

  • №
    Артикул
    Название
  • 1
    7803505200015 WATER PUMP COVER GREY
    WATER PUMP COVER GREY
  • 2
    78035053000 GASKET WAPU-COVER
    GASKET WAPU-COVER
  • 3
    0587060002 HH CAP NUT DIN1587-M 6 SS.
    HH CAP NUT DIN1587-M 6 SS.
  • 4
    77335055100 WATER-PUMP WHEEL
    WATER-PUMP WHEEL
  • 5
    0760102455 SHAFT SEAL RINGX24X5,5
    SHAFT SEAL RINGX24X5,5
  • 6
    0760102440 SHAFT SEAL RINGX24X4
    SHAFT SEAL RINGX24X4
  • 7
    78035054110 SPACER SHIM
    SPACER SHIM
  • 8
    0625060001 BALL BEARING 6000/C3
    BALL BEARING 6000/C3
  • 9
    78035054001 DRIVE WHEEL WAPU PLASTIC MAT.
    DRIVE WHEEL WAPU PLASTIC MAT.
  • 10
    0402032180 NEEDLE ROLLER DIN5402 3X21,8
    NEEDLE ROLLER DIN5402 3X21,8
  • 11
    78035054100 WATER PUMP SHAFT
    WATER PUMP SHAFT
  • 12
    0471140100 LOCK WASHER DIN0471-14X1
    LOCK WASHER DIN0471-14X1
  • 15
    0025060256 HH COLLAR SCREW M6X25
    HH COLLAR SCREW M6X25
  • 16
    0025060556 HH COLLAR SCREW M6X55
    HH COLLAR SCREW M6X55
  • 17
    0603061001 CU-SEAL RING DIN7603-6X10X1
    CU-SEAL RING DIN7603-6X10X1
