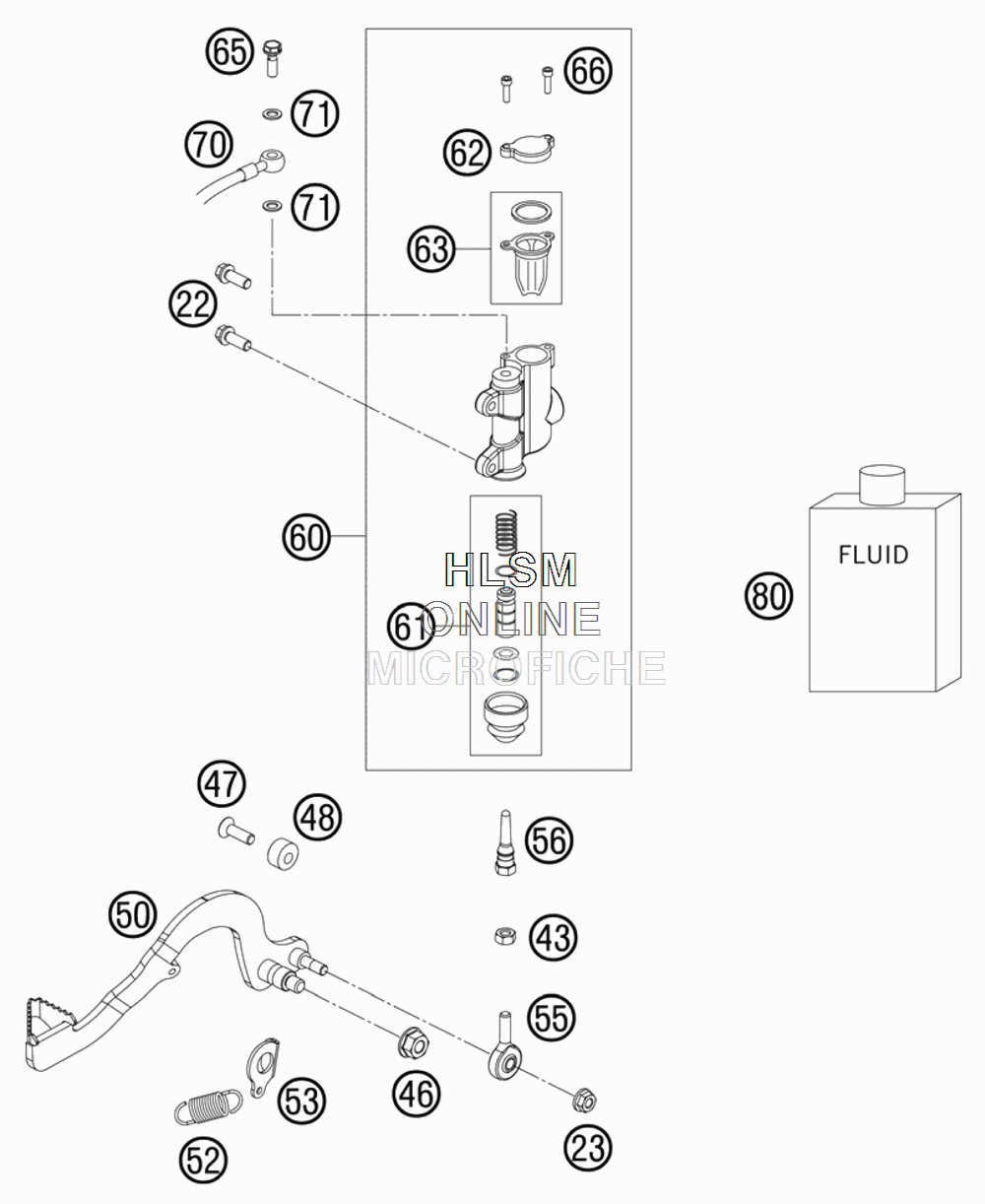

REAR BREAK CONTROL для Ktm 50 SX MINI - 2011 года выпуска`
-
№АртикулНазвание
-
220025060166 HH COLLAR SCREW M6X16 TX30HH COLLAR SCREW M6X16 TX30
-
2356509064100 SELF LOCKING NUT M6 10.9SELF LOCKING NUT M6 10.9
-
430934060003 HEXAGON NUT DIN0934-M 6HEXAGON NUT DIN0934-M 6
-
4654310086200 SELF LOCKING NUT M8 10.9SELF LOCKING NUT M8 10.9
-
470991060202 FLAT HEAD DIN7991-M 6X20FLAT HEAD DIN7991-M 6X20
-
4845203063000 BRAKE LEVER STOPBRAKE LEVER STOP
-
5045213050000 FOOT BRAKE LEVERFOOT BRAKE LEVER
-
5254603062000 RETURN SPRING FOR BRAKE LEVERRETURN SPRING FOR BRAKE LEVER
-
5345213053000 LOCK WASHERLOCK WASHER
-
5554813055000 SWIVEL HEAD KA6SWIVEL HEAD KA6
-
5647013056100 PRESSURE RODPRESSURE ROD
-
6046113060000 REAR BRAKE CYL.REAR BRAKE CYL.
-
6147013061000 REP. SET PISTON REAR D=11REP. SET PISTON REAR D=11
-
6247013062000 CYLINDER COVER REARCYLINDER COVER REAR
-
6347013063000 GASKET CYLINDER COVER REARGASKET CYLINDER COVER REAR
-
6546113325000 HOLLOW SCREW M6HOLLOW SCREW M6
-
660912040103 AH.SCREW DIN0912-M 4X10AH.SCREW DIN0912-M 4X10
-
7045213170100 BRAKE TUBE REARBRAKE TUBE REAR
-
710770060019 O-RING 6,00X1,00 FORMULAO-RING 6,00X1,00 FORMULA
-
8000062030000 BRAKE FLUID DOT5.1 0,25LBRAKE FLUID DOT5.1 0,25L
