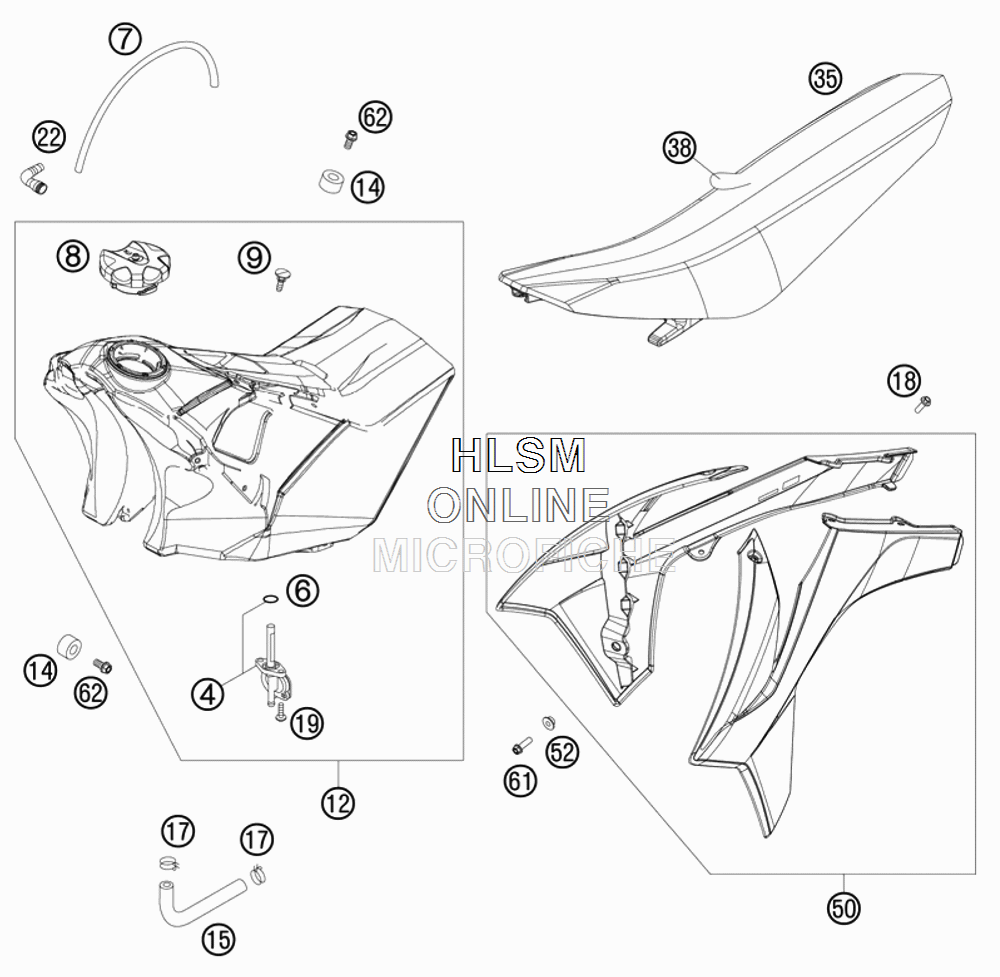

TANK SEAT COVER для Ktm 450 SXF - 2011 года выпуска

  • №
    Артикул
    Название
  • 4
    50307005000 GAS COCK MIKUNI ON/OFF
    GAS COCK MIKUNI ON/OFF
  • 6
    0770130023 O-RING 13,00X2,30
    O-RING 13,00X2,30
  • 7
    78007000270 PVC-HOSE 5,6X10X270MM
    PVC-HOSE 5,6X10X270MM
  • 8
    78007008044X4 TANK PLUG ORANGE/BLACK
    TANK PLUG ORANGE/BLACK
  • 9
    50307011000 SCREW SEAT FASTENING D=6X23/18
    SCREW SEAT FASTENING D=6X23/18
  • 12
    7730751303330 FUEL TANK CPL. 7,5L SX CAB
    FUEL TANK CPL. 7,5L SX CAB
  • 14
    50307014000 TANK ROLLER 12X26X12
    TANK ROLLER 12X26X12
  • 15
    77307016000 FUEL PREFORMED HOSE 450 SX-F
    FUEL PREFORMED HOSE 450 SX-F
  • 17
    58031005000 CLAMP YDNAC128 12MM
    CLAMP YDNAC128 12MM
  • 18
    0017060204 EJOT PT SCREW K60X20 ALU WS=6
    EJOT PT SCREW K60X20 ALU WS=6
  • 19
    0017060203 EJOT PT SCREW K60X20 WS=6
    EJOT PT SCREW K60X20 WS=6
  • 22
    51030022000 ANGLE PIECE 90 DEGREE M10X1
    ANGLE PIECE 90 DEGREE M10X1
  • 35
    77207040000 SEAT CPL.
    SEAT CPL.
  • 38
    77207040050 SEAT COVER
    SEAT COVER
  • 50
    7720805400004A SPOILER KIT ORANGE SX/XC WITH DECAL
    SPOILER KIT ORANGE SX/XC WITH DECAL
  • 52
    50308052000 BUSH FOR SPOILER 6X11X16X5 MM
    BUSH FOR SPOILER 6X11X16X5 MM
  • 61
    0025060206 HH COLLAR SCREW M6X20
    HH COLLAR SCREW M6X20
  • 62
    0025060126 HH COLLAR SCREW M6X12
    HH COLLAR SCREW M6X12
