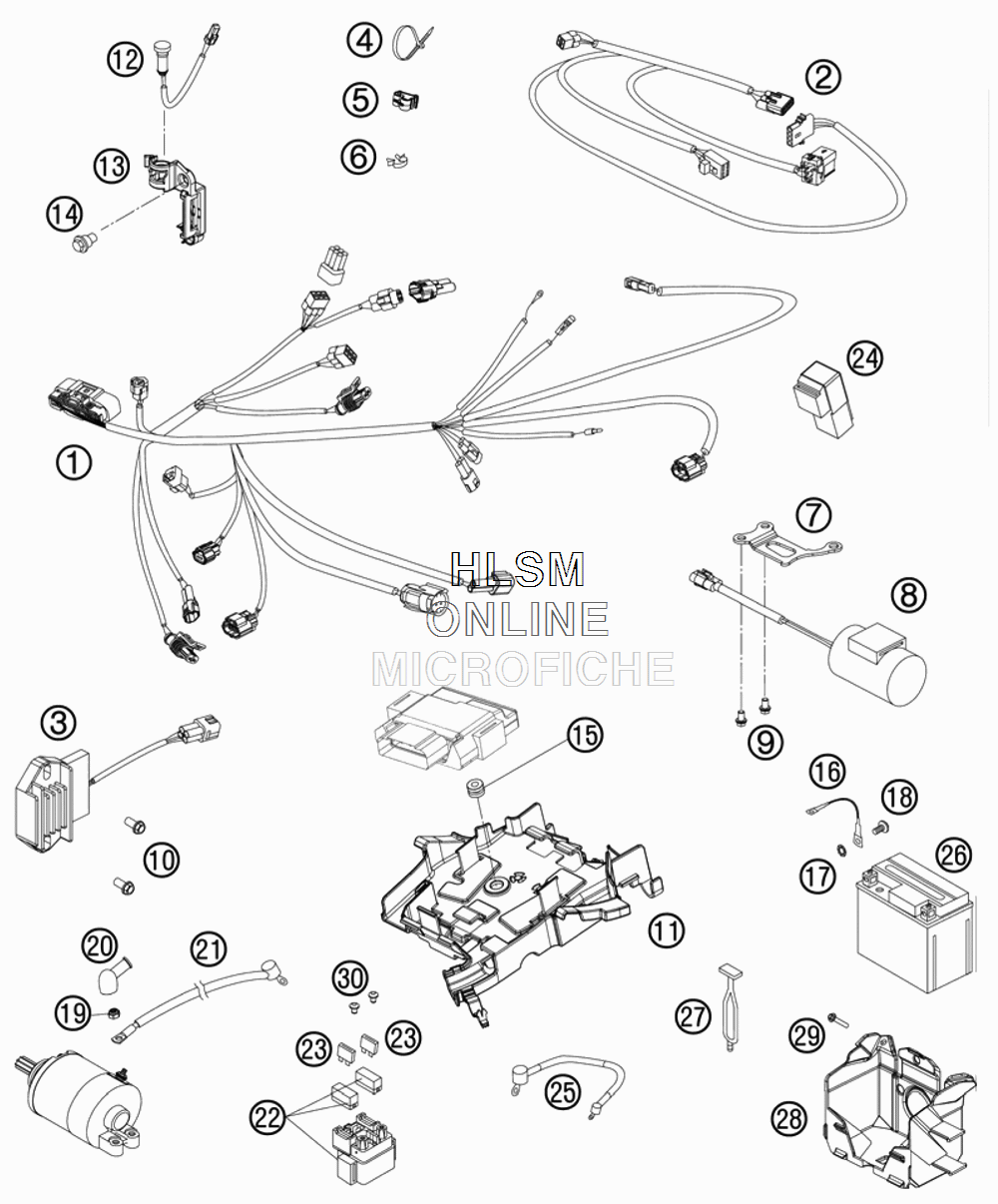

WIRING HARNESS для Ktm 350 SX-F - 2011 года выпуска`
-
№АртикулНазвание
-
177111075000 WIRING HARNESS EFIWIRING HARNESS EFI
-
277111085000 WIRING HARNESS E-STARTWIRING HARNESS E-START
-
377211034000 VOLTAGE REGULATORVOLTAGE REGULATOR
-
444011076140 CABLE TIE 140/2,5MM BLACKCABLE TIE 140/2,5MM BLACK
-
444011076200 CABLE TIE 200/3,6MM BLACKCABLE TIE 200/3,6MM BLACK
-
444011076305 CABLE TIE 300/4,8MM BLACKCABLE TIE 300/4,8MM BLACK
-
583013026000 CABLE GUIDECABLE GUIDE
-
657013072100 WIRING HOLDER 16MMWIRING HOLDER 16MM
-
777211036000 RETAINING PLATE CONDENSATORRETAINING PLATE CONDENSATOR
-
877111035000 CONDENSATORCONDENSATOR
-
90025060106 HH COLLAR SCREW M6X10HH COLLAR SCREW M6X10
-
100025060206 HH COLLAR SCREW M6X20HH COLLAR SCREW M6X20
-
1177211094000 ELECTRIC BOXELECTRIC BOX
-
1281214083000 INDICATOR LIGHT LED YELLOW FIINDICATOR LIGHT LED YELLOW FI
-
1377214098000 HOLDER INDICATOR LIGHTHOLDER INDICATOR LIGHT
-
1459001092050 SPECIAL SCREW M6X12,5SPECIAL SCREW M6X12,5
-
1555009086000 PLUG SFL13PLUG SFL13
-
1658411098100 CONTACT WASHER M6 VSV-K6CONTACT WASHER M6 VSV-K6
-
1758411098100 CONTACT WASHER M6 VSV-K6CONTACT WASHER M6 VSV-K6
-
180009050106 EJOT SPIRAL SCREW SF M5X10-KEJOT SPIRAL SCREW SF M5X10-K
-
190985060003 SELF LOCK. NUT DIN0985-M 6SELF LOCK. NUT DIN0985-M 6
-
2058440099000 PROTECTION CAP F. STARTER ENG.PROTECTION CAP F. STARTER ENG.
-
2158411059100 STARTERCABLE 700 MMSTARTERCABLE 700 MM
-
2258211058000 STARTER RELAY 12VSTARTER RELAY 12V
-
2358011109110 FUSE AFUSE A
-
2461111057000 RELAY CM1A-R-12V-H80RELAY CM1A-R-12V-H80
-
2558711086000 WIRING HARNESS BATTERY DUKEWIRING HARNESS BATTERY DUKE
-
2677311053000 BATTERY 12V 3AH YTX4L-BSBATTERY 12V 3AH YTX4L-BS
-
2750303018000 RUBBER L=145MMRUBBER L=145MM
-
2877211055000 BATTERY BOXBATTERY BOX
-
290017060203 EJOT PT SCREW K60X20EJOT PT SCREW K60X20
-
300902060083 AH OVAL SCREW ISO 7380 M 6X8AH OVAL SCREW ISO 7380 M 6X8
