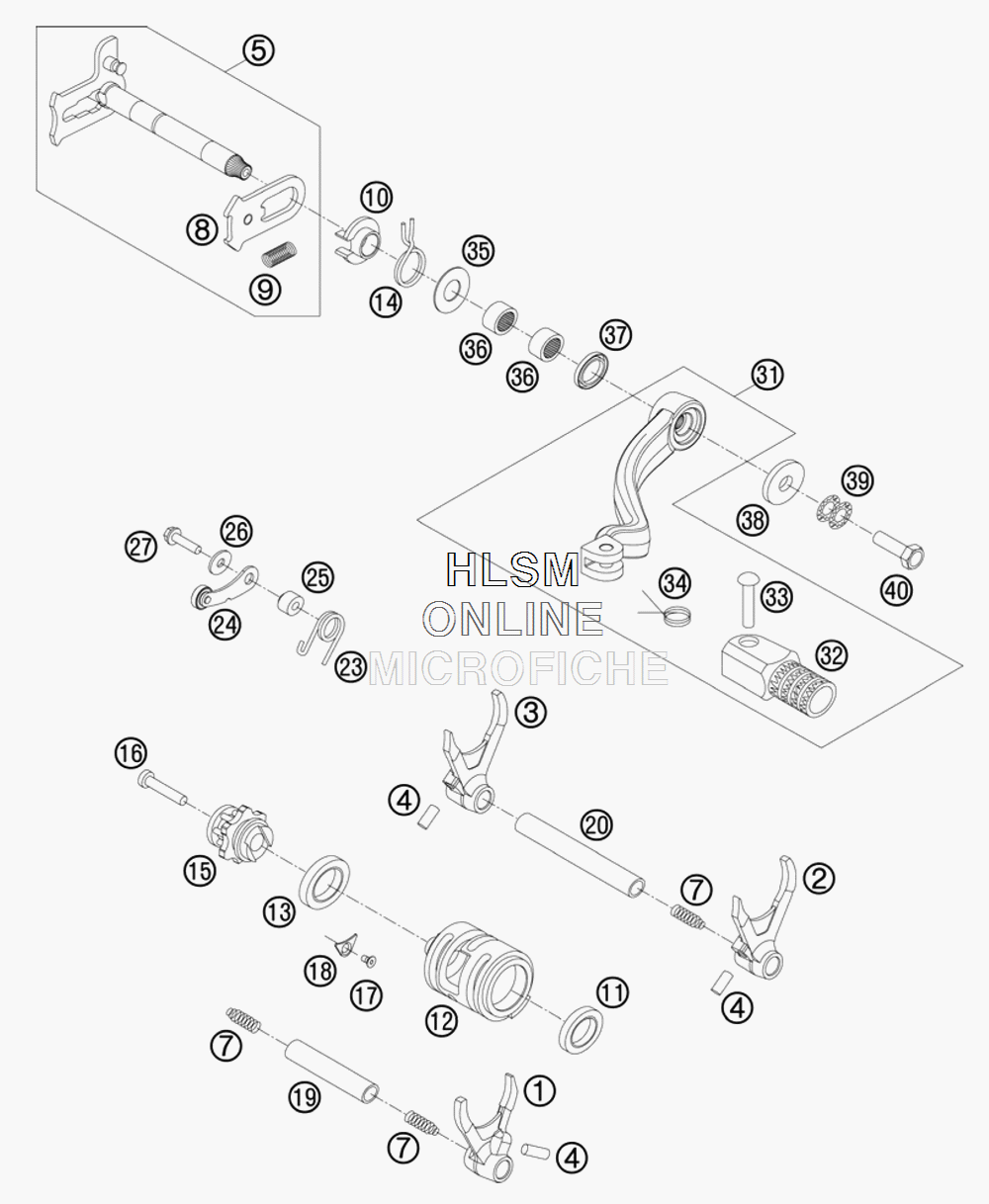

SHIFTING MECHANISM для Ktm 350 SX-F - 2011 года выпуска`
-
№АртикулНазвание
-
154834001000 SHIFTING FORK 4TH/5TH GEARSHIFTING FORK 4TH/5TH GEAR
-
254834002000 SHIFTING FORK 2ND GEARSHIFTING FORK 2ND GEAR
-
354834003000 SHIFTING FORK 1ST/3RD GEARSHIFTING FORK 1ST/3RD GEAR
-
40402061480 NEEDLE ROLLER DIN5402 6X14,8NEEDLE ROLLER DIN5402 6X14,8
-
554834005044 SHIFTING SHAFT CPL.SHIFTING SHAFT CPL.
-
758038023200 PRESSURE SPRING 0,9MMPRESSURE SPRING 0,9MM
-
854634008044 SLIDING PLATE CPL.SLIDING PLATE CPL.
-
956534013100 TENSIONING SPRING 0,8MMTENSIONING SPRING 0,8MM
-
1054634020000 SPRING GUIDESPRING GUIDE
-
110625069034 BALL BEARING 6903 C4BALL BEARING 6903 C4
-
1254834012000 SHIFT ROLLERSHIFT ROLLER
-
130625618050 BALL BEARING 61805 C3BALL BEARING 61805 C3
-
1454834014000 RETURN SPRINGRETURN SPRING
-
1577234015000 SHIFT LOCATING DRUM CPL.SHIFT LOCATING DRUM CPL.
-
160912060353 AH SCREW DIN0912-M 6X35AH SCREW DIN0912-M 6X35
-
170019050103 INT. TORX FLAT HEAD M 5X10 8.8INT. TORX FLAT HEAD M 5X10 8.8
-
1875030085000 RETAINING PLATE F. CS BEARINGRETAINING PLATE F. CS BEARING
-
1954834019000 SHIFT. RAIL MAIN SHAFTSHIFT. RAIL MAIN SHAFT
-
2054834020000 SHIFT. RAIL C. SHAFTSHIFT. RAIL C. SHAFT
-
2360034023000 ARRESTING LEVER SPRINGARRESTING LEVER SPRING
-
2450334024144 LOCATING LEVER CPL.LOCATING LEVER CPL.
-
2554634052300 SLEEVE FOR LOCKING LEVERSLEEVE FOR LOCKING LEVER
-
260021050003 WASHER DIN9021-A 5,3WASHER DIN9021-A 5,3
-
270025050206 HH COLLAR SCREW M5X20 TX30HH COLLAR SCREW M5X20 TX30
-
3154734031000 SHIFT LEVER CPL. 2-STROKESHIFT LEVER CPL. 2-STROKE
-
3254634131000 STEP PLATE FOR SHIFT LEVER 250STEP PLATE FOR SHIFT LEVER 250
-
3354634031050 BOLT 6X25 FOR SHIFT LEVERBOLT 6X25 FOR SHIFT LEVER
-
3454634032100 SHIFTING LEVER SPRINGSHIFTING LEVER SPRING
-
3554634050000 STOP DISK 14X30X1STOP DISK 14X30X1
-
3654632095000 NEEDLE BEAR.HK 1412 14X20X12NEEDLE BEAR.HK 1412 14X20X12
-
370760142460 SHAFT SEAL RING 14X24X6 BSHAFT SEAL RING 14X24X6 B
-
3850232050001 STEEL WASHER 6,4X17X3STEEL WASHER 6,4X17X3
-
3950233041000 PAIR OF WASHERS M 6 NORDLOCKPAIR OF WASHERS M 6 NORDLOCK
-
4059009062016 SPECIAL SCREW M6X16 WS=8.9SPECIAL SCREW M6X16 WS=8.9
