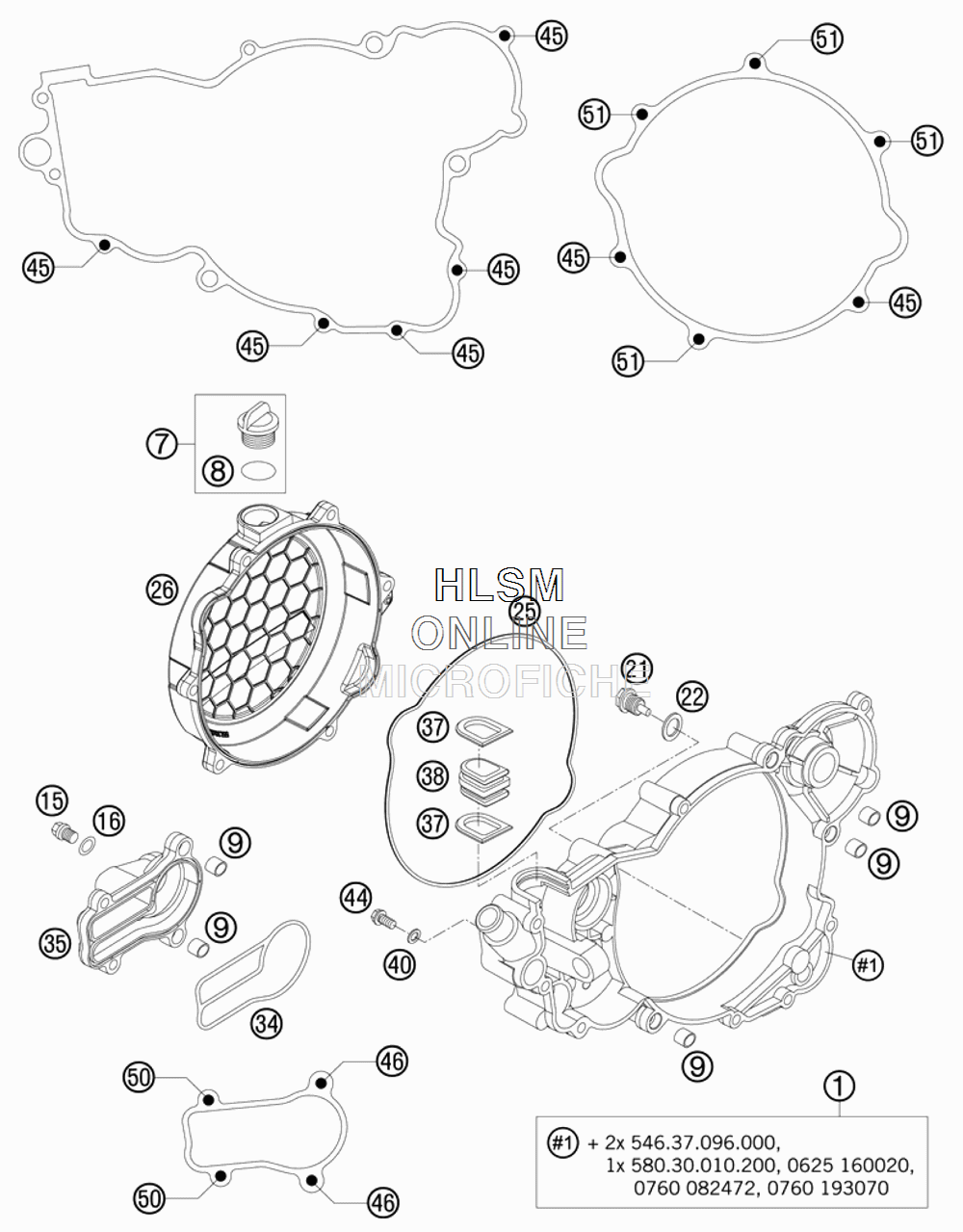

CLUTCH COVER для Ktm 250 XC - 2011 года выпуска

  • №
    Артикул
    Название
  • 1
    54830001044 INTERM. CLUTCH COVER CPL.
    INTERM. CLUTCH COVER CPL.
  • 7
    58030120000 OIL FILLER CAP M24X3 WITH O-R
    OIL FILLER CAP M24X3 WITH O-R
  • 8
    0770191015 O-RING 19,00X3,00 NBR
    O-RING 19,00X3,00 NBR
  • 9
    49030090000 DOWEL 9,8 X 7 X
    DOWEL 9,8 X 7 X
  • 15
    0910100003 PLUG DIN0910-MX1
    PLUG DIN0910-MX1
  • 16
    0603100141 COPPER GASKET DIN7603-10X14X1
    COPPER GASKET DIN7603-10X14X1
  • 21
    58030021000 OILDRAIN PLUG W.MAG. M 12X1,5
    OILDRAIN PLUG W.MAG. M 12X1,5
  • 22
    58038022000 CU-SEAL RING DIN7603-12X18X1,5
    CU-SEAL RING DIN7603-12X18X1,5
  • 25
    54830025000 GASKET F. CLU.COVER
    GASKET F. CLU.COVER
  • 26
    5513002600015 CLUTCH COVER OUTSIDE
    CLUTCH COVER OUTSIDE
  • 34
    54835003000 GASKET WAPU-COVER
    GASKET WAPU-COVER
  • 35
    54835001000 WATERPUMP COVER
    WATERPUMP COVER
  • 37
    54637107000 SEALING ELEMENT BOTTOM
    SEALING ELEMENT BOTTOM
  • 38
    54837091100 SEALING CARRIER
    SEALING CARRIER
  • 40
    0603061001 CU-SEAL RING DIN7603-6X10X1
    CU-SEAL RING DIN7603-6X10X1
  • 44
    0025060126 HH COLLAR SCREW M6X12 TX30
    HH COLLAR SCREW M6X12 TX30
  • 45
    0025060206 HH COLLAR SCREW M6X20 TX30
    HH COLLAR SCREW M6X20 TX30
  • 46
    0025060256 HH COLLAR SCREW M6X25 TX30
    HH COLLAR SCREW M6X25 TX30
  • 50
    0025060556 HH COLLAR SCREW M6X55 TX30
    HH COLLAR SCREW M6X55 TX30
  • 51
    0025060606 HH COLLAR SCREW M6X60 TX30
    HH COLLAR SCREW M6X60 TX30
