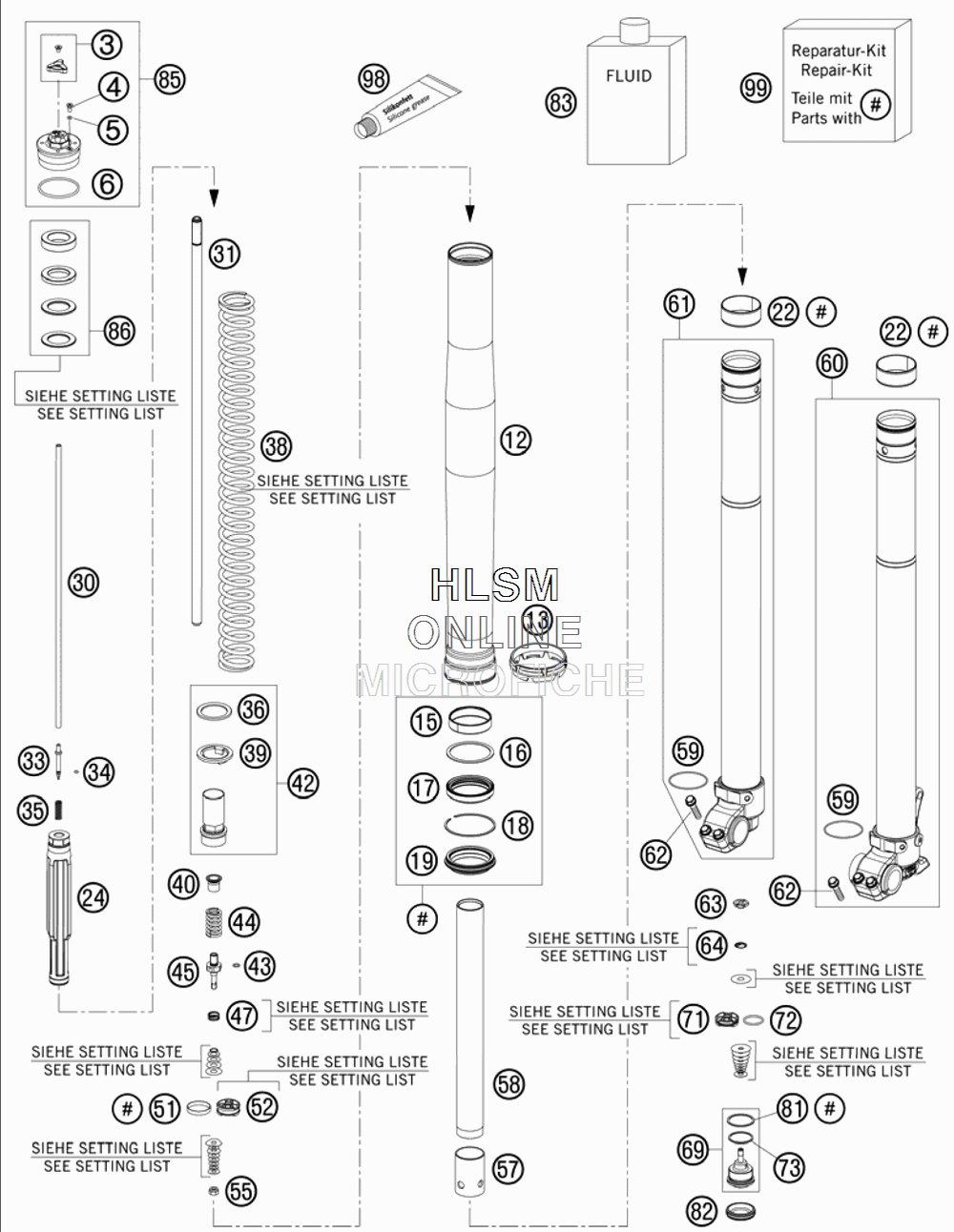

FRONT FORK DISASSEMBLED для Ktm 250 XC-W - 2011 года выпуска

  • №
    Артикул
    Название
  • 3
    48600812S ADJUSTING KNOB + SCREW
    ADJUSTING KNOB + SCREW
  • 4
    48600481 VENT SCREW M4X8
    VENT SCREW M4X8
  • 5
    48600046 O-RING NBR 3X1,5
    O-RING NBR 3X1,5
  • 6
    46810340 O-RING NBR 45X2
    O-RING NBR 45X2
  • 12
    48600736 OUTER TUBE L577 D54/60MM 2L
    OUTER TUBE L577 D54/60MM 2L
  • 13
    48600698 FORK PROTECTION RING
    FORK PROTECTION RING
  • 15
    48600429 DU-BUSH D48XD52X12DDL02
    DU-BUSH D48XD52X12DDL02
  • 16
    48600013 SUPPORT RING 50 X 57,6 X 1,5
    SUPPORT RING 50 X 57,6 X 1,5
  • 17
    48600347 OIL SEAL RING 48X57,8X9,5
    OIL SEAL RING 48X57,8X9,5
  • 18
    48600070 LOCK WASHER SB58
    LOCK WASHER SB58
