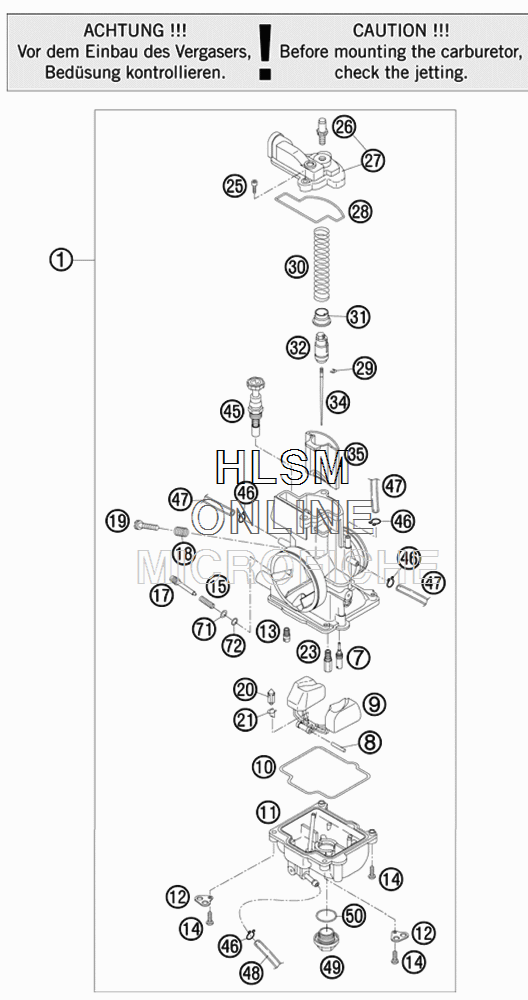

CARBURETOR для Ktm 125 SX - 2011 года выпуска`
-
№АртикулНазвание
-
150331101544 CARBUR. KEIHIN PWK 38S AGCARBUR. KEIHIN PWK 38S AG
-
754531607038 IDLE JET 38 KEIHINIDLE JET 38 KEIHIN
-
754531607040 IDLE JET 40 KEIHINIDLE JET 40 KEIHIN
-
754531607042 IDLE JET 42 KEIHINIDLE JET 42 KEIHIN
-
754531607045 IDLE JET 45 KEIHINIDLE JET 45 KEIHIN
-
754531607048 IDLE JET 48 KEIHINIDLE JET 48 KEIHIN
-
754531607050 IDLE JET 50 KEIHINIDLE JET 50 KEIHIN
-
754531607052 IDLE JET 52 KEIHINIDLE JET 52 KEIHIN
-
754531607055 IDLE JET 55 KEIHINIDLE JET 55 KEIHIN
-
857331008000 ARM PIN FLOATARM PIN FLOAT
-
957331009000 FLOAT CPL.FLOAT CPL.
-
1054831010000 GASKET FLOAT CHAMBERGASKET FLOAT CHAMBER
-
1154831011000 FLOAT CHAMBER PWK38-S AGFLOAT CHAMBER PWK38-S AG
-
1254531612100 RETAINING PLATE FOR BLEEDERRETAINING PLATE FOR BLEEDER
-
1354831051085 STARTER JET 85 KEIHINSTARTER JET 85 KEIHIN
-
140016040163 HH COLLAR SCREW M 4X16 WS=6HH COLLAR SCREW M 4X16 WS=6
-
1554531615000 SPRING FOR ADJUSTMENT SCREWSPRING FOR ADJUSTMENT SCREW
-
1754531617000 ADJUSTMENT SCREWADJUSTMENT SCREW
-
1854631118000 SPRINGSPRING
-
1954631219100 ADJUSTMENT SCREW M 5ADJUSTMENT SCREW M 5
-
2054631220000 FLOAT NEEDLEFLOAT NEEDLE
-
2154531621000 CLAMPCLAMP
-
2354531623170 MAIN JET 170 KEIHINMAIN JET 170 KEIHIN
-
2354531623172 MAIN JET 172 KEIHINMAIN JET 172 KEIHIN
-
2354531623175 MAIN JET 175 KEIHINMAIN JET 175 KEIHIN
-
2354531623178 MAIN JET 178 KEIHINMAIN JET 178 KEIHIN
-
2354531623180 MAIN JET 180 KEIHINMAIN JET 180 KEIHIN
-
2354531623182 MAIN JET 182 KEIHINMAIN JET 182 KEIHIN
-
2354531623185 MAIN JET 185 KEIHINMAIN JET 185 KEIHIN
-
2354531623188 MAIN JET 188 KEIHINMAIN JET 188 KEIHIN
-
2354531623190 MAIN JET 190 KEIHINMAIN JET 190 KEIHIN
-
2354531623192 MAIN JET 192 KEIHINMAIN JET 192 KEIHIN
-
2354531623195 MAIN JET 195 KEIHINMAIN JET 195 KEIHIN
-
2354531623198 MAIN JET 198 KEIHINMAIN JET 198 KEIHIN
-
2354531623200 MAIN JET 200 KEIHINMAIN JET 200 KEIHIN
-
2354531623202 MAIN JET GR. 202 KEIHINMAIN JET GR. 202 KEIHIN
-
2354531623205 MAIN JET 205 KEIHINMAIN JET 205 KEIHIN
-
2354531623208 MAIN JET 208 KEIHINMAIN JET 208 KEIHIN
-
2354531623210 MAIN JET 210 KEIHINMAIN JET 210 KEIHIN
-
2354531623212 MAIN JET 212 KEIHINMAIN JET 212 KEIHIN
-
2354531623215 MAIN JET 215 KEIHINMAIN JET 215 KEIHIN
-
2554831025000 SPECIAL-AH-SCREW M 4X12SPECIAL-AH-SCREW M 4X12
-
2654831029000 THROTTLE CALBE HOLDER M6X0,75THROTTLE CALBE HOLDER M6X0,75
-
2750331027000 CARBURETOR COVER PWK 38S AGCARBURETOR COVER PWK 38S AG
-
2854831028000 GASKET FOR CARBURETOR COVERGASKET FOR CARBURETOR COVER
-
2954531629000 CLIP FOR JET NEEDLECLIP FOR JET NEEDLE
-
3054831030000 SLIDING SPRINGSLIDING SPRING
-
3154631231000 SPRING CAPSPRING CAP
-
3254631232000 NIPPLENIPPLE
-
3454531636006 JET NEEDLE NOZ F KEIHINJET NEEDLE NOZ F KEIHIN
-
3454531636007 JET NEEDLE NOZ G KEIHINJET NEEDLE NOZ G KEIHIN
-
3454531636008 JET NEEDLE NOZ H KEIHINJET NEEDLE NOZ H KEIHIN
-
3454531636009 JET NEEDLE NOZ I KEIHINJET NEEDLE NOZ I KEIHIN
-
3454531636010 JET NEEDLE NOZ J KEIHINJET NEEDLE NOZ J KEIHIN
-
3454531636011 JET NEEDLE NOZ K KEIHINJET NEEDLE NOZ K KEIHIN
-
3554631035000 THROTTLE VALVE 7 FOR 38 PJTHROTTLE VALVE 7 FOR 38 PJ
-
4554631245000 STARTER PISTON CPL.STARTER PISTON CPL.
-
4654531696000 CLAMP 6 MMCLAMP 6 MM
-
4731007007101 PVC-HOSE 4X6MMPVC-HOSE 4X6MM
-
4852031137001 PVC-HOSE 3X5MMPVC-HOSE 3X5MM
-
4954531699000 PLUG M 18X1PLUG M 18X1
-
500770180230 O-RING 18,00X2,30 NBR 70O-RING 18,00X2,30 NBR 70
-
7154831071000 WASHER ADJUSTING SCREWWASHER ADJUSTING SCREW
-
7254831072000 O-RING ADJUSTING SCREWO-RING ADJUSTING SCREW
Все узлы модели:
- • CARBURETOR
