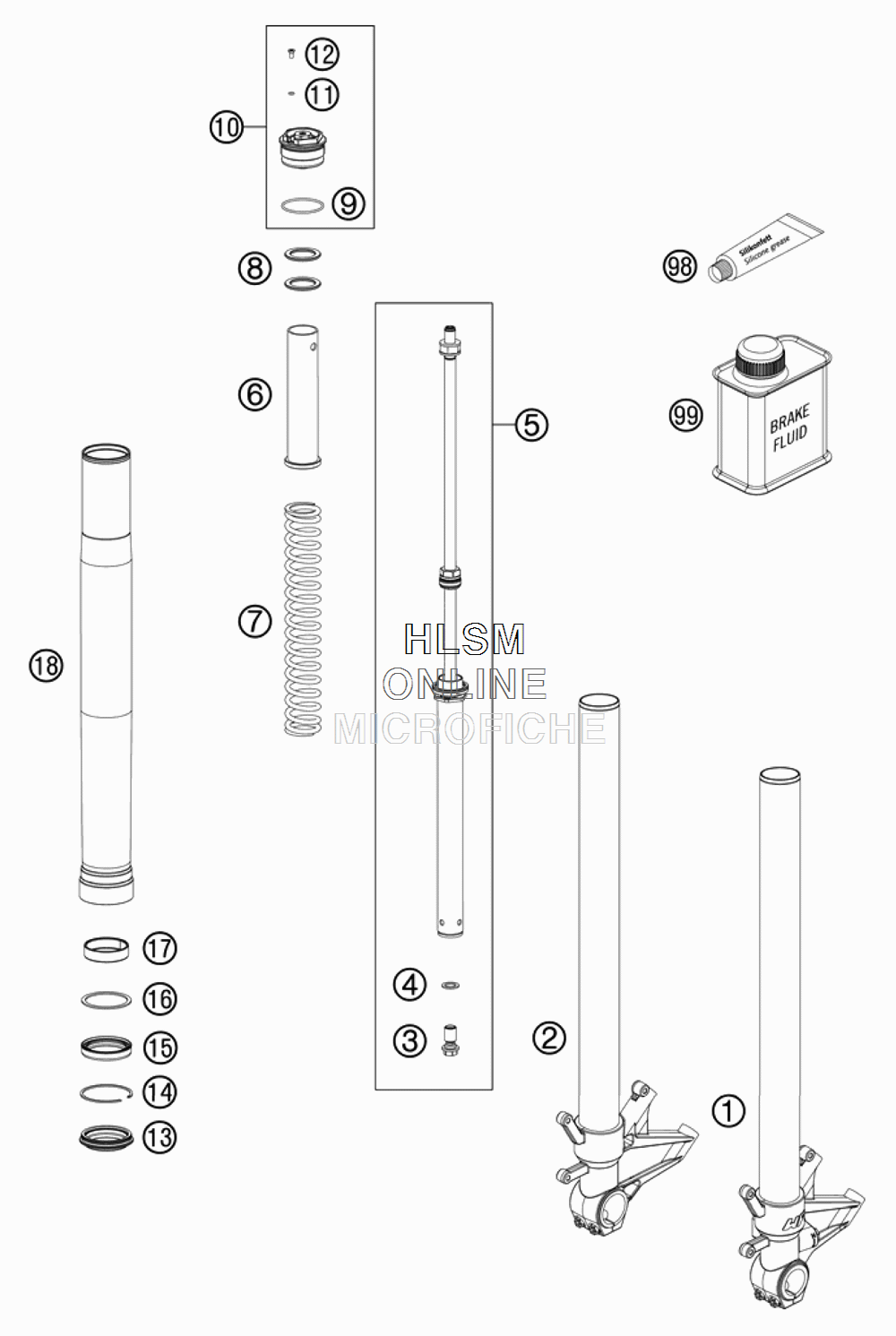

FRONT FORK DISASSEMBLED для Ktm 1190 RC8R WHITE - 2011 года выпуска

  • №
    Артикул
    Название
  • 1
    43570523S1 AXLE-CLAMP L/S CPL. W. TUBE
    AXLE-CLAMP L/S CPL. W. TUBE
  • 2
    43570522S1 AXLE-CLAMP R/S CPL. W. TUBE
    AXLE-CLAMP R/S CPL. W. TUBE
  • 3
    48600176 BOLT M12X1 D=3
    BOLT M12X1 D=3
  • 4
    48600704 SEALING RING COPPER 12X18X1,5
    SEALING RING COPPER 12X18X1,5
  • 5
    43570453S3 CARTRIDGE KPL. RC8 R
    CARTRIDGE KPL. RC8 R
  • 6
    43570445S ALU SPACER D32XD28X145 CPL.
    ALU SPACER D32XD28X145 CPL.
  • 7
    95010034S SPRING LINEAR SET D=4,9
    SPRING LINEAR SET D=4,9
  • 7
    95010035S SPRING LINEAR SET D=5,0
    SPRING LINEAR SET D=5,0
  • 8
    43570133 SPACER 26X38X2,5
    SPACER 26X38X2,5
  • 8
    43570134 SPACER 26X38X5
    SPACER 26X38X5
  • 8
    43570135 SPACER 26X38X10
    SPACER 26X38X10
  • 8
    43570136 SPACER 26X38X1,5
    SPACER 26X38X1,5
  • 9
    43570023 O-RING NBR 41X2
    O-RING NBR 41X2
  • 10
    43570447SA SCREW CAP M46X1 PA CPL.
    SCREW CAP M46X1 PA CPL.
  • 11
    48600046 O-RING NBR 3X1,5
    O-RING NBR 3X1,5
  • 12
    48600481 VENT SCREW M4X8
    VENT SCREW M4X8
  • 13
    43570624 DUST CAP 43X53,4X5,8
    DUST CAP 43X53,4X5,8
  • 14
    43570008 LOCK WASHER SB53
    LOCK WASHER SB53
  • 15
    43570623 OIL SEAL RING 43X52,9X11,4
    OIL SEAL RING 43X52,9X11,4
  • 16
    43570092 SUPPORT RING 45 X 52,5 X 1,5
    SUPPORT RING 45 X 52,5 X 1,5
  • 17
    43570618 GUIDE BUSHING 43X47X12
    GUIDE BUSHING 43X47X12
  • 18
    43570608S OUTER TUBE RC8 R
    OUTER TUBE RC8 R
  • 98
    T511 SILICONE GREASE F. DUST STRIPE
    SILICONE GREASE F. DUST STRIPE
  • 99
    48600765S1 FORK OIL SAE5 5L
    FORK OIL SAE5 5L
