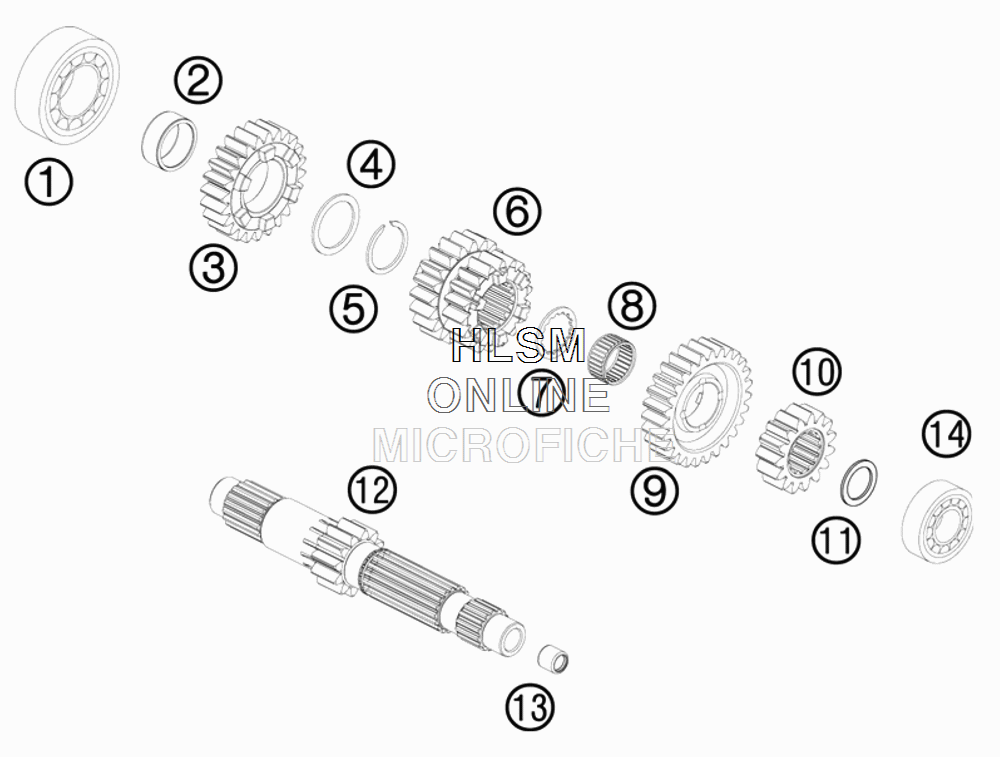

TRANSMISSION I - MAIN SHAFT для Ktm 990 SUPERMOTO T ORANGE - 2010 года выпуска`
-
№АртикулНазвание
-
1*0625062062 BALL BEARING 6206 C3 J1 NSKBALL BEARING 6206 C3 J1 NSK
-
2*0405263113 NEEDLE BEAR. K 26-31-13NEEDLE BEAR. K 26-31-13
-
3*60233005000 IDLER GEAR 5.GIDLER GEAR 5.G
-
4*61233042000 STOP DISK 27,9/35,75/1,5STOP DISK 27,9/35,75/1,5
-
5*60233050000 COPPER WASHER 25,5COPPER WASHER 25,5
-
6*60233003000 SLIDING GEAR 3/4 TH G .SLIDING GEAR 3/4 TH G .
-
7*61233041000 STOP DISK 22,2/30,2/1,5STOP DISK 22,2/30,2/1,5
-
8*0405222613 NEEDLE BEAR. K 22X26X13 TNNEEDLE BEAR. K 22X26X13 TN
-
9*60233006000 IDLER GEAR 6.GIDLER GEAR 6.G
-
10*60233002000 SOLID GEAR 2.GSOLID GEAR 2.G
-
11*60033040010 STOP DISK 20,2X28X1,0STOP DISK 20,2X28X1,0
-
11*60033040011 STOP DISK 20,2X28X1,1STOP DISK 20,2X28X1,1
-
11*60033040012 STOP DISK 20,2X28X1,2STOP DISK 20,2X28X1,2
-
11*60033040013 STOP DISK 20,2X28X1,3STOP DISK 20,2X28X1,3
-
11*60033040014 STOP DISK 20,2X28X1,4STOP DISK 20,2X28X1,4
-
11*60033040015 STOP DISK 20,2X28X1,5STOP DISK 20,2X28X1,5
-
11*60033040016 STOP DISK 20,2/28/1,6STOP DISK 20,2/28/1,6
-
11*60033040017 STOP DISK 20,2/28/1,7STOP DISK 20,2/28/1,7
-
11*60033040018 STOP DISK 20,2/28/1,8STOP DISK 20,2/28/1,8
-
11*60033040019 STOP DISK 20,2/28/1,9STOP DISK 20,2/28/1,9
-
11*60033040020 STOP DISK 20,2/28/2,0STOP DISK 20,2/28/2,0
-
11*60033040021 STOP DISK 20,2/28/2,1STOP DISK 20,2/28/2,1
-
11*60033040022 STOP DISK 20,2/28/2,2STOP DISK 20,2/28/2,2
-
12*60233001000 MAIN SHAFT 12-T.MAIN SHAFT 12-T.
-
13*0618091312 NEEDLE BUSH HK0912 9/13/12NEEDLE BUSH HK0912 9/13/12
-
14*0625062040 BALL BEARING 6204 DU J1 C3BALL BEARING 6204 DU J1 C3
