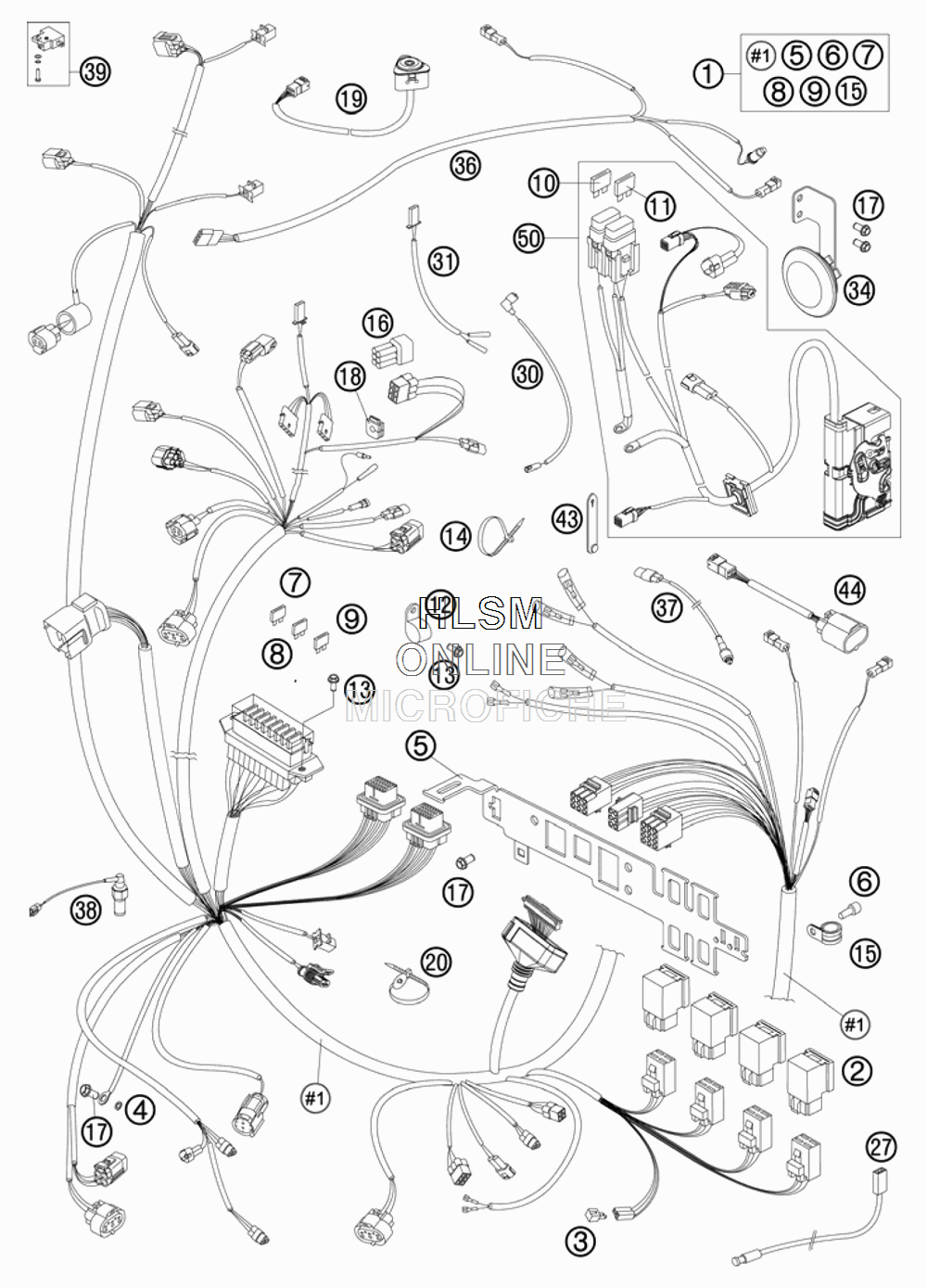

WIRING HARNESS для Ktm 990 ADVENTURE R - 2010 года выпуска`
-
№АртикулНазвание
-
160111075333 WIRING HARNESSWIRING HARNESS
-
261111057000 RELAY CM1A-R-12V-H80RELAY CM1A-R-12V-H80
-
358411096100 DIODE S3H-15DIODE S3H-15
-
458411098100 CONTACT WASHER M6 VSV-K6CONTACT WASHER M6 VSV-K6
-
560111083000 BRACKET FOR PLUGSBRACKET FOR PLUGS
-
60912050123 AH SCREW DIN0912-M 5X12AH SCREW DIN0912-M 5X12
-
758011109105 FUSE 5 AFUSE 5 A
-
858011109110 FUSE 10 AFUSE 10 A
-
958011109115 FUSE 15 AFUSE 15 A
-
1058011109125 FUSE 25 AFUSE 25 A
-
1158011109140 FUSE 40 AFUSE 40 A
-
1257013070400 PVC CLAMP 17,4MM HEYCO 3381PVC CLAMP 17,4MM HEYCO 3381
-
130025050126 HH COLLAR SCREW M5X12HH COLLAR SCREW M5X12
-
1444011076140 CABLE TIE 14072,5MM BLACKCABLE TIE 14072,5MM BLACK
-
1444011076200 CABLE TIE 200/3,6MM BLACKCABLE TIE 200/3,6MM BLACK
-
1444011076305 CABLE TIE 300/4,8MM BLACKCABLE TIE 300/4,8MM BLACK
-
1549007439000 CLAMP RSGU 15/12CLAMP RSGU 15/12
-
16000700000BH SPARE CONNECTOR BH 6-PINS DIAGNOSTIC PORTSPARE CONNECTOR BH 6-PINS DIAGNOSTIC PORT
-
170025060106 HH COLLAR SCREW M6X10HH COLLAR SCREW M6X10
-
1860108017015 RUBBER SLEEVE 22X18 MMRUBBER SLEEVE 22X18 MM
-
1960211022000 HAZARD WARNING BUTTONHAZARD WARNING BUTTON
-
2060011193000 CABLE TIE WITH PLUGCABLE TIE WITH PLUG
-
2761111018000 TEMPERATURE SENSORTEMPERATURE SENSOR
-
3060011092000 OIL-PRESSURE SWITCH CABLEOIL-PRESSURE SWITCH CABLE
-
3160011025000 FLASHER CABLE FRONTFLASHER CABLE FRONT
-
3460011060100 DC HORN 12VDC HORN 12V
-
3660111076000 WIRING HARNESS REARWIRING HARNESS REAR
-
3758411049100 CLUTCH SWITCHCLUTCH SWITCH
-
3850311051100 BRAKE LIGHT SWITCH REARBRAKE LIGHT SWITCH REAR
-
3960011050000 BRAKE LIGHT SW. FRONT CPL.BRAKE LIGHT SW. FRONT CPL.
-
4360011093045 RUBBER CABLE TIE 45MMRUBBER CABLE TIE 45MM
-
4360011093060 RUBBER CABLE TIE 60MMRUBBER CABLE TIE 60MM
-
4360011093075 RUBBER CABLE TIE 75MMRUBBER CABLE TIE 75MM
-
4461111020000 STARTER INTERLOCKSTARTER INTERLOCK
-
5060111079000 WIRING HARNESS ABSWIRING HARNESS ABS
