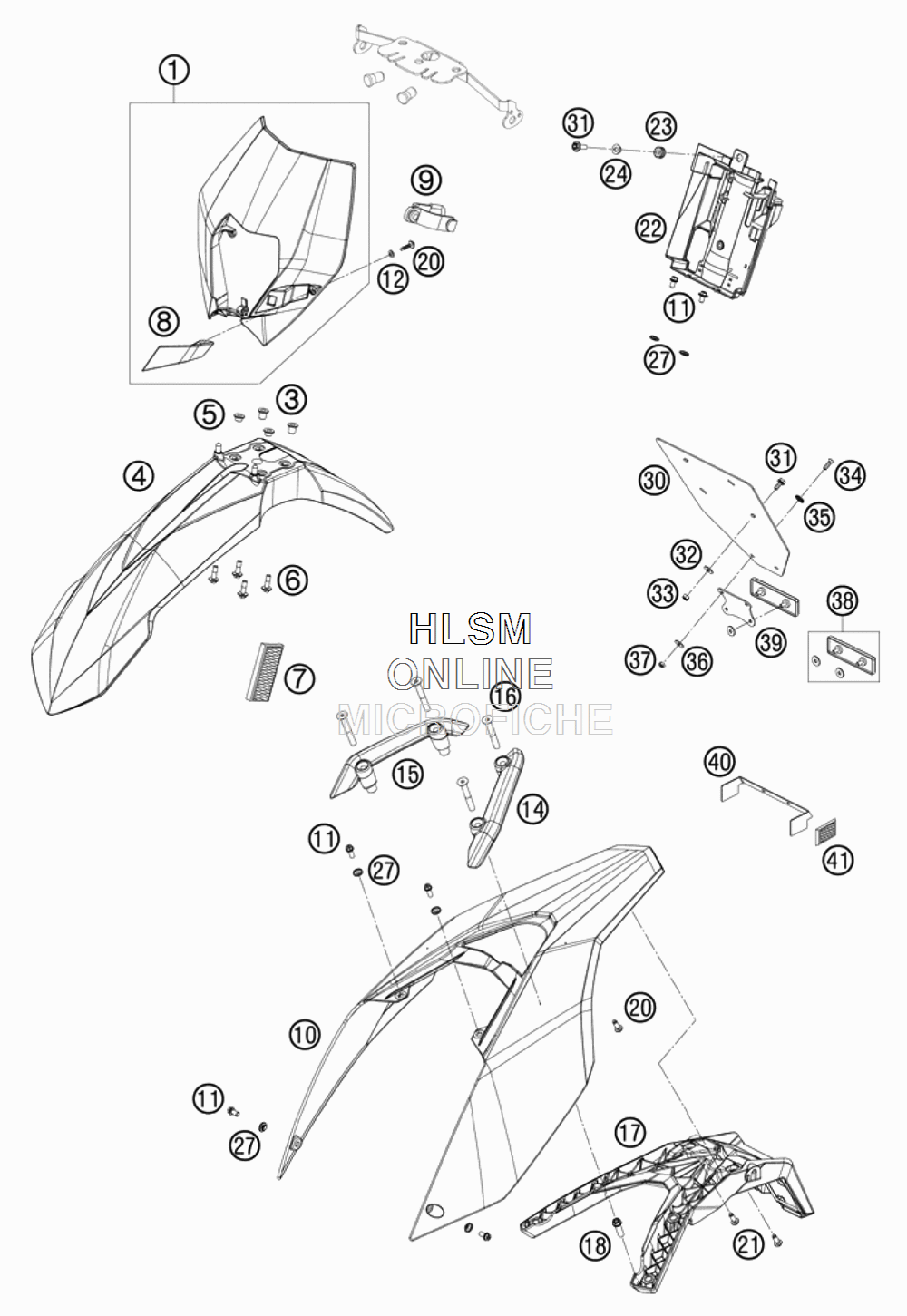

MASK FENDERS для Ktm 690 ENDURO R - 2010 года выпуска

  • №
    Артикул
    Название
  • 1
    7800800100004 HEAD LIGHT MASK ORANGE
    HEAD LIGHT MASK ORANGE
  • 3
    62508009000 COLLAR BUSHING 7,2X10X15X8,5
    COLLAR BUSHING 7,2X10X15X8,5
  • 4
    7650801010004 FRONT FENDER
    FRONT FENDER
  • 5
    54808020000 SPACER BUSHING
    SPACER BUSHING
  • 6
    0024060206 HH COLLAR SCREW M6X20 TX30
    HH COLLAR SCREW M6X20 TX30
  • 7
    58412080100 REFLECTOR YELLOW
    REFLECTOR YELLOW
  • 8
    7800802200004 BRAKE HOSE GUIDE ORANGE
    BRAKE HOSE GUIDE ORANGE
  • 9
    50211086000 MASK RUBBER UFO WP
    MASK RUBBER UFO WP
  • 10
    7650801300004 REAR FENDER
    REAR FENDER
  • 11
    0025060126 HH COLLAR SCREW M6X12 TX30
    HH COLLAR SCREW M6X12 TX30
  • 12
    0125060003 WASHER DIN0125-A 6,4
    WASHER DIN0125-A 6,4
  • 14
    76512008000 HAND GRIP L/S
    HAND GRIP L/S
  • 15
    76512009000 HAND GRIP R/S
    HAND GRIP R/S
  • 16
    0019080756 COUNTERSUNK SCREW ISA45 M8X75
    COUNTERSUNK SCREW ISA45 M8X75
  • 17
    76508116100 NUMBER PLATE CARRIER TOP
    NUMBER PLATE CARRIER TOP
  • 18
    0025080256 HH COLLAR SCREW M8X25 TX40
    HH COLLAR SCREW M8X25 TX40
  • 20
    0017060203 EJOT PT SCREW K60X20 WS=6
    EJOT PT SCREW K60X20 WS=6
  • 21
    0017060303 SPECIAL SCREW T60 6X30 WS=6
    SPECIAL SCREW T60 6X30 WS=6
  • 22
    76514064000 COVER
    COVER
  • 23
    58214069051 RUBBER GROMMET 16X10,8X3
    RUBBER GROMMET 16X10,8X3
  • 24
    75014010050 COLLAR BUSHING 6,1X8,1X14X8
    COLLAR BUSHING 6,1X8,1X14X8
  • 27
    76508043050 COLLAR BUSHING
    COLLAR BUSHING
  • 30
    60012081200 LICENCE FITTING
    LICENCE FITTING
  • 31
    0024060156 HH COLLAR SCREW M6X15 TX30
    HH COLLAR SCREW M6X15 TX30
  • 32
    0021060003 WASHER DIN9021-A 6,4
    WASHER DIN9021-A 6,4
  • 33
    00985060003 SELF LOCK. NUT DIN0985-M6
    SELF LOCK. NUT DIN0985-M6
  • 34
    00966050163 OVAL HEAD SCREW DIN0966-M 5X16
    OVAL HEAD SCREW DIN0966-M 5X16
  • 35
    40006006000 WASHER 6MM
    WASHER 6MM
  • 36
    0125050003 WASHER DIN0125-A 5,3
    WASHER DIN0125-A 5,3
  • 37
    0985050003 SELF LOCKING NUT DIN0985-M 5
    SELF LOCKING NUT DIN0985-M 5
  • 38
    58412080000 REFLECTOR RED LC4
    REFLECTOR RED LC4
  • 39
    58412080050 BRACKET FOR REFLECTOR
    BRACKET FOR REFLECTOR
  • 40
    62512081000 BRACKET SIDE REFLECTOR
    BRACKET SIDE REFLECTOR
  • 41
    16512180100 SIDE REFLECTOR RED REAR ONLY FOR USA
    SIDE REFLECTOR RED REAR ONLY FOR USA
