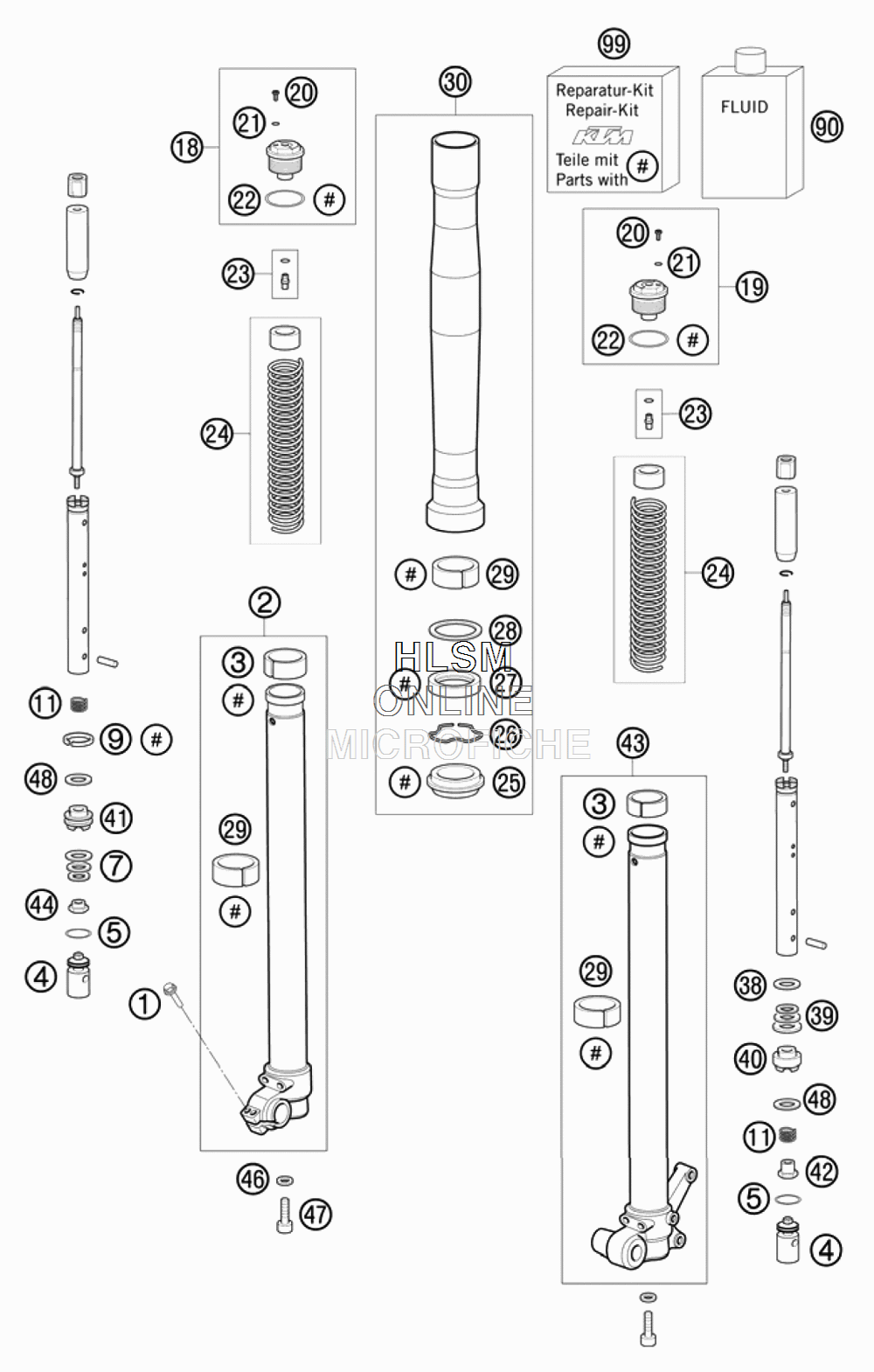

FRONT FORK DISASSEMBLED для Ktm 65 SX - 2010 года выпуска

  • №
    Артикул
    Название
  • 1
    0025060306 HH COLLAR SCREW M6X30 TX30
    HH COLLAR SCREW M6X30 TX30
  • 2
    7819139/C SLIDER + AXLE CLAMP CPL. R/S
    SLIDER + AXLE CLAMP CPL. R/S
  • 3
    7538029 GUIDE RING D=35
    GUIDE RING D=35
  • 4
    7717065/R FOOT VALVE
    FOOT VALVE
  • 5
    7528005 O-RING D=20,3
    O-RING D=20,3
  • 7
    7517082 SHIM 8,1X23X0,1
    SHIM 8,1X23X0,1
  • 9
    7524163 PISTON RING D=26
    PISTON RING D=26
  • 11
    75141087 LOWER REBOUND SPRING
    LOWER REBOUND SPRING
  • 18
    7701204AC PLUG R/S CPL.
    PLUG R/S CPL.
  • 19
    7701205AC PLUG L/S CPL.
    PLUG L/S CPL.
  • 20
    7850208AR LENTIL HEAD SCREW M4X6
    LENTIL HEAD SCREW M4X6
  • 21
    7528180 O-RING D=3,69, S=1,78
    O-RING D=3,69, S=1,78
  • 22
    7528008 O-RING D=34,6, S=1,78
    O-RING D=34,6, S=1,78
  • 23
    7850652 PIN + O-RING
    PIN + O-RING
  • 24
    7850728 SPRINGS + PRELOAD SLEEVES KIT
    SPRINGS + PRELOAD SLEEVES KIT
  • 25
    7533167 DUST CAP
    DUST CAP
  • 26
    7523236 LOCK WASHER D=51,5
    LOCK WASHER D=51,5
  • 27
    7528034 OIL SEAL 35X47X10
    OIL SEAL 35X47X10
  • 28
    7539032AA WASHER 36X47X3
    WASHER 36X47X3
  • 29
    7538038/A GUIDE RING 35X15
    GUIDE RING 35X15
  • 30
    7760069FN/C OUTER TUBE CPL.
    OUTER TUBE CPL.
  • 38
    7535099 COMPRESSION DAMPING SHIM
    COMPRESSION DAMPING SHIM
  • 39
    7517028 SHIM 8,1X23X0,2
    SHIM 8,1X23X0,2
  • 39
    7517057 SHIM 8,1X21X0,2
    SHIM 8,1X21X0,2
  • 39
    7517074 SHIM 8,1X18X0,2
    SHIM 8,1X18X0,2
  • 40
    7530090/B PISTON COMPRESSION D=26
    PISTON COMPRESSION D=26
  • 41
    7530088/B PISTON COMPRESSION D=26
    PISTON COMPRESSION D=26
  • 42
    7521147/A SPECIAL NUT M6X1 WITH STEP
    SPECIAL NUT M6X1 WITH STEP
  • 43
    7819140/C SLIDER + AXLE CLAMP CPL. L/S
    SLIDER + AXLE CLAMP CPL. L/S
  • 44
    7521092/E SPECIAL NUT M6X1 WITH STEP
    SPECIAL NUT M6X1 WITH STEP
  • 46
    7522061 SHIM 8X12X1,5
    SHIM 8X12X1,5
  • 47
    0912080253 AH SCREW DIN0912-M 8X25
    AH SCREW DIN0912-M 8X25
  • 48
    7517044 SHIM 8,1X23X0,3
    SHIM 8,1X23X0,3
  • 90
    7550013 FORKOIL EBH16 SAE 7.5
    FORKOIL EBH16 SAE 7.5
  • 99
    7850731/C REPAIR-KIT USD 35
    REPAIR-KIT USD 35
