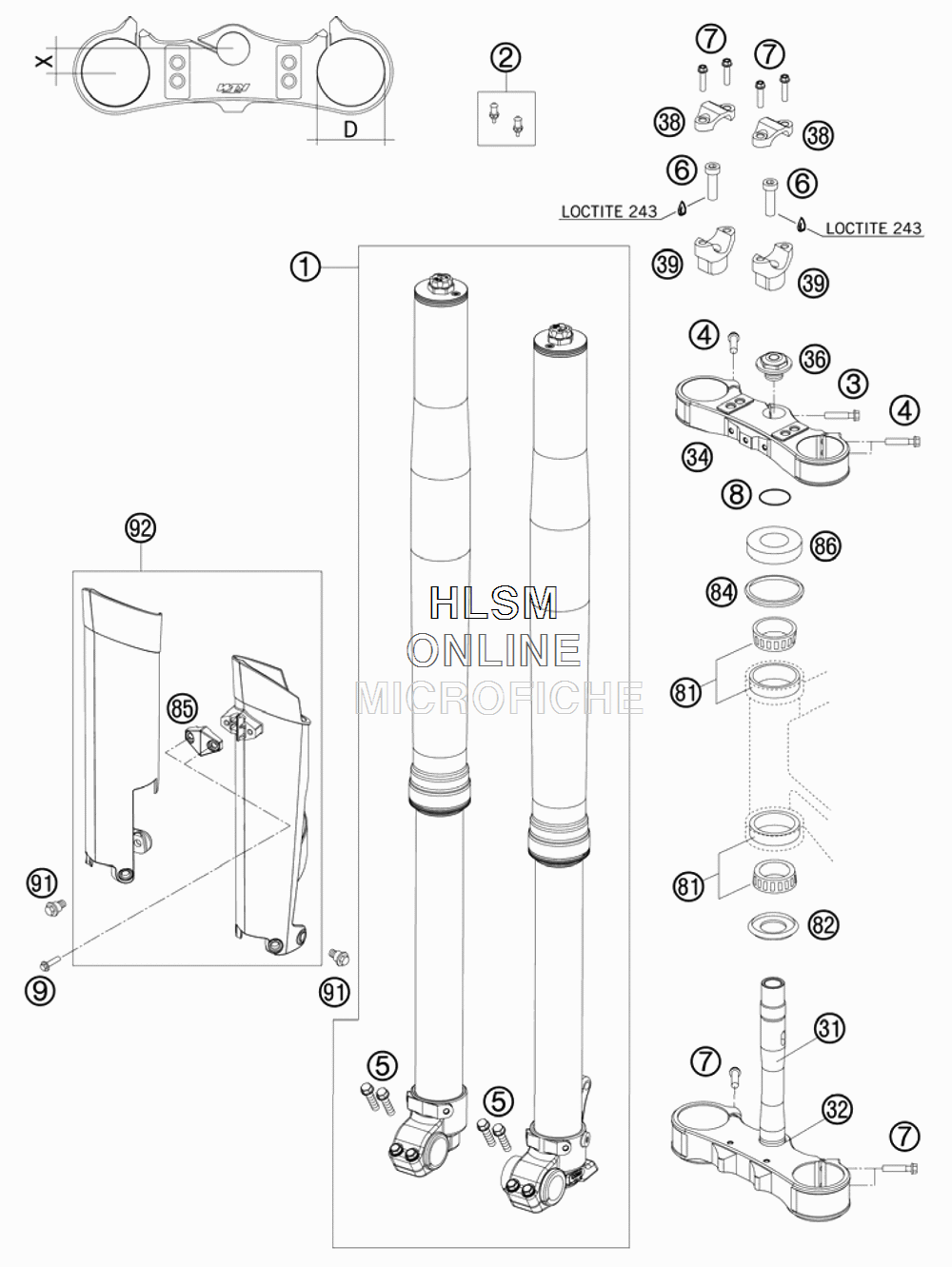

FRONT FORK TRIPLE CLAMP для Ktm 450 XC-W Six Days - 2010 года выпуска`
-
№АртикулНазвание
-
1*14187J0601 FORK KTM450/530EXC/XC-WFORK KTM450/530EXC/XC-W
-
2SXS08125610 BLEEDER VALVE SETBLEEDER VALVE SET
-
30025080256S HH COLLAR SCREW M8X25 TX40HH COLLAR SCREW M8X25 TX40
-
40025080356 HH COLLAR SCREW M8X35 TX40HH COLLAR SCREW M8X35 TX40
-
50025080256 HH COLLAR SCREW M8X25 TX40HH COLLAR SCREW M8X25 TX40
-
60912100356 AH SCREW DIN6912-M10X35 10.9AH SCREW DIN6912-M10X35 10.9
-
70025080306 HH COLLAR SCREW M8X30 TX40HH COLLAR SCREW M8X30 TX40
-
80770025035 O-RING 25X3,55 NBR70O-RING 25X3,55 NBR70
-
90017060204 EJOT PT SCREW K60X20 ALU WS=6EJOT PT SCREW K60X20 ALU WS=6
-
3159401033100 FORK TUBE EXC L=237MMFORK TUBE EXC L=237MM
-
325940103202030 BOT. TRI. CLAMP CPL. XL=20MMBOT. TRI. CLAMP CPL. XL=20MM
-
345940103401930 TOP TRIPLE CLAMP D=54MMTOP TRIPLE CLAMP D=54MM
-
3654801036000 STEER.HEAD SCREW M20X1,5 WS=27STEER.HEAD SCREW M20X1,5 WS=27
-
38*59401038000 HANDLEBAR CLAMP 28MMHANDLEBAR CLAMP 28MM
-
39*59401039032 HANDLEB.SUPP. D=28MM H=32MMHANDLEB.SUPP. D=28MM H=32MM
-
39*59401039037 HANDLEB.SUPP. D=28MM H=37MMHANDLEB.SUPP. D=28MM H=37MM
-
39*59401039042 HANDLEB.SUPP. D=28MM H=42MMHANDLEB.SUPP. D=28MM H=42MM
-
4059501039004 SPACER 9 MMSPACER 9 MM
-
8154201081100 TAPERED ROLLER BEARING CPL.TAPERED ROLLER BEARING CPL.
-
8254601084100 O-RING SUPPORT W. SEALING LIPO-RING SUPPORT W. SEALING LIP
-
8454601184000 STEARING HEAD GASKET TOPSTEARING HEAD GASKET TOP
-
857800108500004 CLAMP FOR SPEED CABLE D=6MMCLAMP FOR SPEED CABLE D=6MM
-
8654201086000 STEERING HEAD COVERSTEERING HEAD COVER
-
9159001092050 SPECIAL SCREW M6X12,5 WS=8SPECIAL SCREW M6X12,5 WS=8
-
927800109410030 FORK PROTECTION LE+RI BLACKFORK PROTECTION LE+RI BLACK
