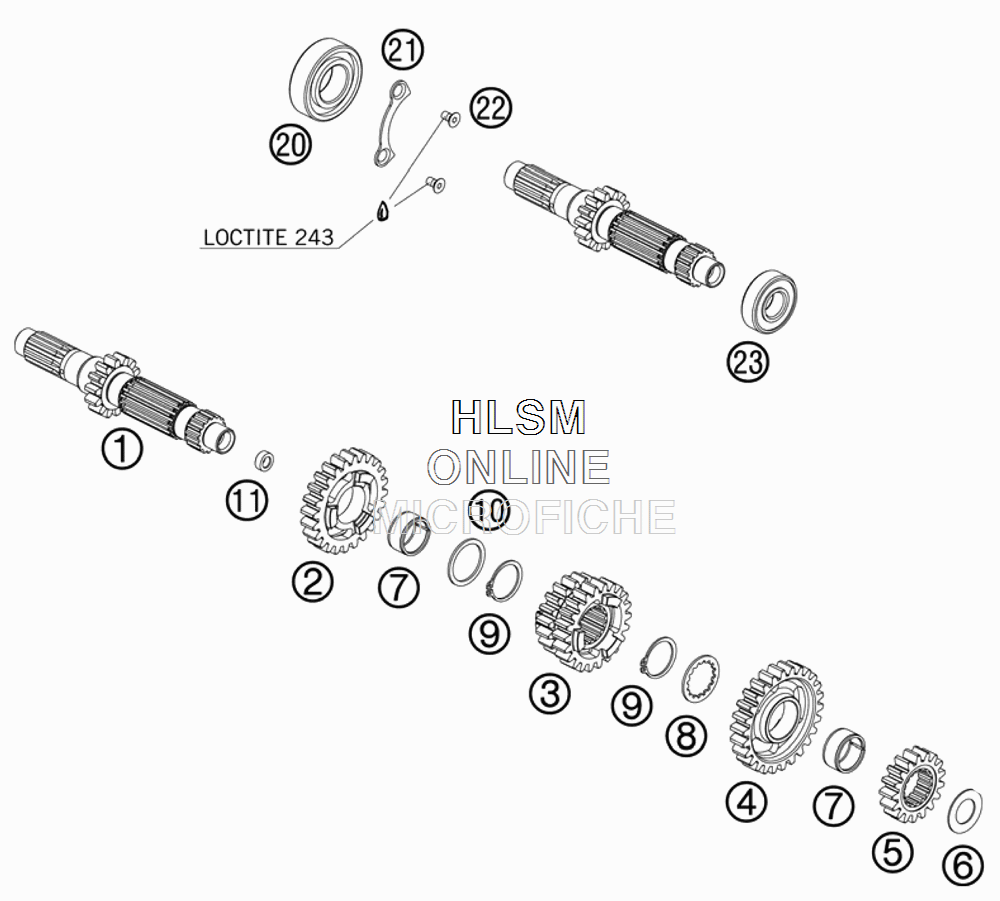

TRANSMISSION II - COUNTERSHAFT для Ktm 450 EXC - 2010 года выпуска`

№

Артикул

Название
1

78033010000 COUNTERSHAFT

COUNTERSHAFT

23 100 ₽
2*

78033011100 IDLER GEAR 1. GEAR

IDLER GEAR 1. GEAR

25 970 ₽
3

78033015000 SLIDING GEAR 5.G.

SLIDING GEAR 5.G.

25 000 ₽
4

78033013000 IDLER GEAR 3.G.

IDLER GEAR 3.G.

19 100 ₽
5

78033014000 IDLER GEAR 4.G.

IDLER GEAR 4.G.

18 490 ₽
6

78033016000 SLIDING GEAR 6.G.

SLIDING GEAR 6.G.

24 970 ₽
7*

78033012100 IDLER GEAR 2. GEAR

IDLER GEAR 2. GEAR

22 170 ₽
8

0405222610 NEEDLE BEARING K 22X26X10 A

NEEDLE BEARING K 22X26X10 A

3 130 ₽
9

0471250120 CIRCLIP DIN0471-25X1,2

CIRCLIP DIN0471-25X1,2

290 ₽
10

78033031000 STOP DISK 26 X 32 X 1,5

STOP DISK 26 X 32 X 1,5

640 ₽
11

78033033000 STOP DISK 23 X 32 X 1,5

STOP DISK 23 X 32 X 1,5

640 ₽
12

59033080000 SHIM 20X32X1

SHIM 20X32X1

440 ₽
13

0405202612 NEEDLE BEARING K 20X26X12

NEEDLE BEARING K 20X26X12

2 950 ₽
14

56033030000 STOP DISC 17,2X30X1

STOP DISC 17,2X30X1

970 ₽
15

0471170015 CIRCLIP DIN 0471-17X1, 5

CIRCLIP DIN 0471-17X1, 5

210 ₽
20

0625062035 BALL BEARING 6203 JR2 C3

BALL BEARING 6203 JR2 C3

3 890 ₽
21

78033132000 TAB WASHER BEARING COUNT.SHAFT

TAB WASHER BEARING COUNT.SHAFT

1 140 ₽
22

0019050103 INT. TORX FLAT HEAD M 5X10 8.8

INT. TORX FLAT HEAD M 5X10 8.8

290 ₽
23

49030023000 CYL.ROLL BEARING NJ205

CYL.ROLL BEARING NJ205

20 130 ₽
24

0760324571 SHAFT SEAL RING 32X45X7 BSLNBR

SHAFT SEAL RING 32X45X7 BSLNBR

1 140 ₽
25

0770020220 O-RING 25,12X1,78 NBR70

O-RING 25,12X1,78 NBR70

590 ₽
26

54633014100 SPACER BUSHING 12MM

SPACER BUSHING 12MM

5 140 ₽
27

50033029013 FRONT SPROCKET 13-T

FRONT SPROCKET 13-T

8 110 ₽
27

50033029014 FRONT SPROCKET 14-T

FRONT SPROCKET 14-T

8 110 ₽
27

50033029015 FRONT SPROCKET 15-T

FRONT SPROCKET 15-T

7 100 ₽
28

59033034044 SCREW 10.9+SPRING WASHER

SCREW 10.9+SPRING WASHER

2 050 ₽
