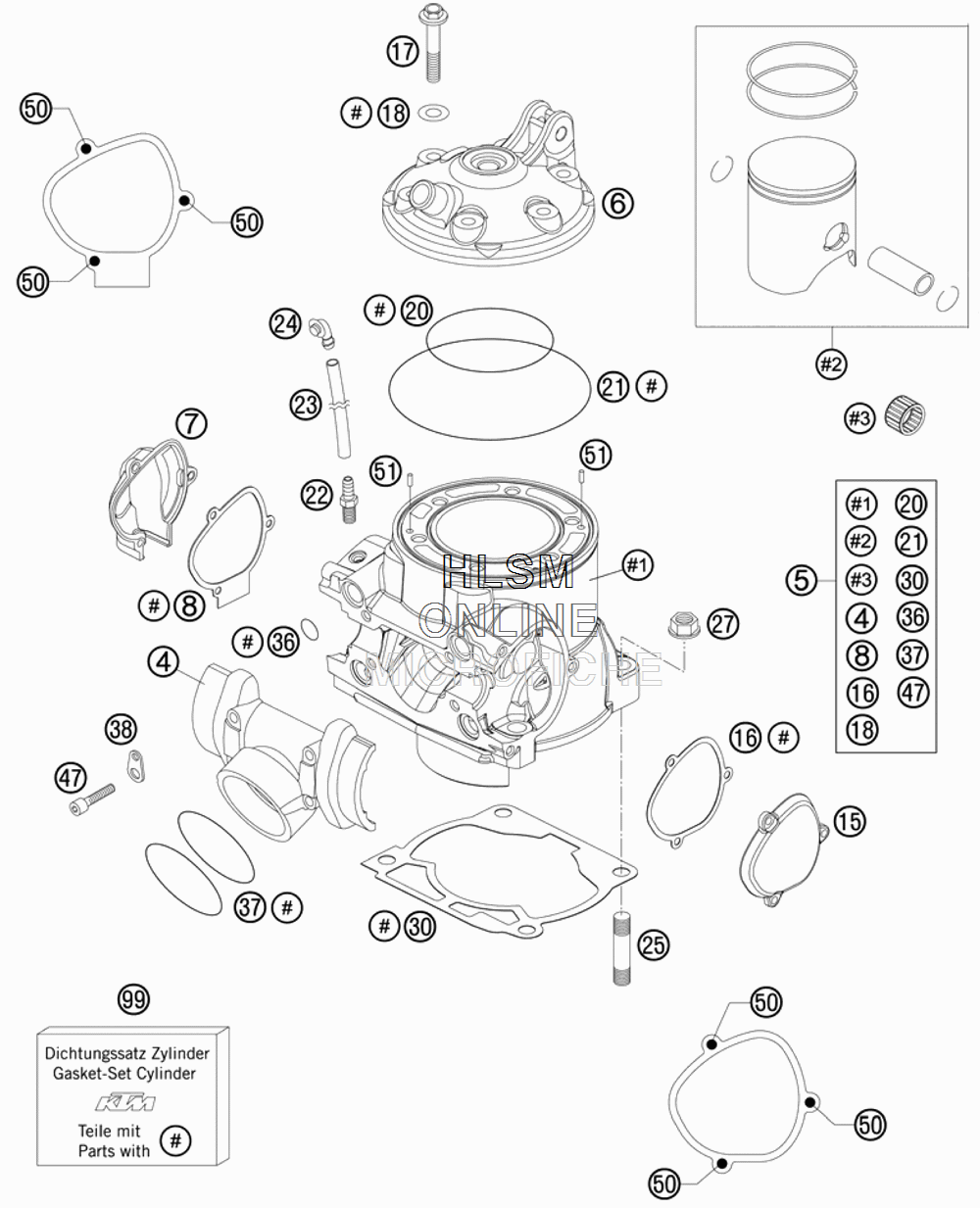

CYLINDER CYLINDER HEAD для Ktm 250 XC-W - 2010 года выпуска

  • №
    Артикул
    Название
  • 4
    54837001200 INTERMEDIATE FLANGE
    INTERMEDIATE FLANGE
  • 5*
    00050001250 CYL.+PISTON KIT 250
    CYL.+PISTON KIT 250
  • 6*
    54830106200 CYLINDER HEAD 250 EXC
    CYLINDER HEAD 250 EXC
  • 7
    5483700700015 CONTROL COVER R/S
    CONTROL COVER R/S
  • 8
    54837008000 GASKET FOR CONTROL COVER R/S
    GASKET FOR CONTROL COVER R/S
  • 15
    5483700500015 CONTROL COVER L/S
    CONTROL COVER L/S
  • 16
    54837006000 GASKET FOR CONTROL COVER L/S
    GASKET FOR CONTROL COVER L/S
  • 17
    54830079000 COLLAR SCREW M 8X35 WS=13
    COLLAR SCREW M 8X35 WS=13
  • 18
    56530080000 CU-SEAL RING 8 X 16 X 1
    CU-SEAL RING 8 X 16 X 1
  • 20
    0770730020 O-RING 73,00X2,00 VITON
    O-RING 73,00X2,00 VITON
  • 21
    0770105020 O-RING 105,00X2,00
    O-RING 105,00X2,00
  • 22
    58336020090 VACUUM CONNECTION M 6X1
    VACUUM CONNECTION M 6X1
  • 23
    31007107001 PVC-HOSE 6X9 MM PER METER
    PVC-HOSE 6X9 MM PER METER
  • 24
    50303089000 ANGEL PIECE
    ANGEL PIECE
  • 25
    0835100351 STUD DIN0835-M10X35
    STUD DIN0835-M10X35
  • 27
    54630044000 COLLAR NUT M10 WS=13
    COLLAR NUT M10 WS=13
  • 30
    54830030002 GASKET CYLINDER BASE 0,2MM
    GASKET CYLINDER BASE 0,2MM
