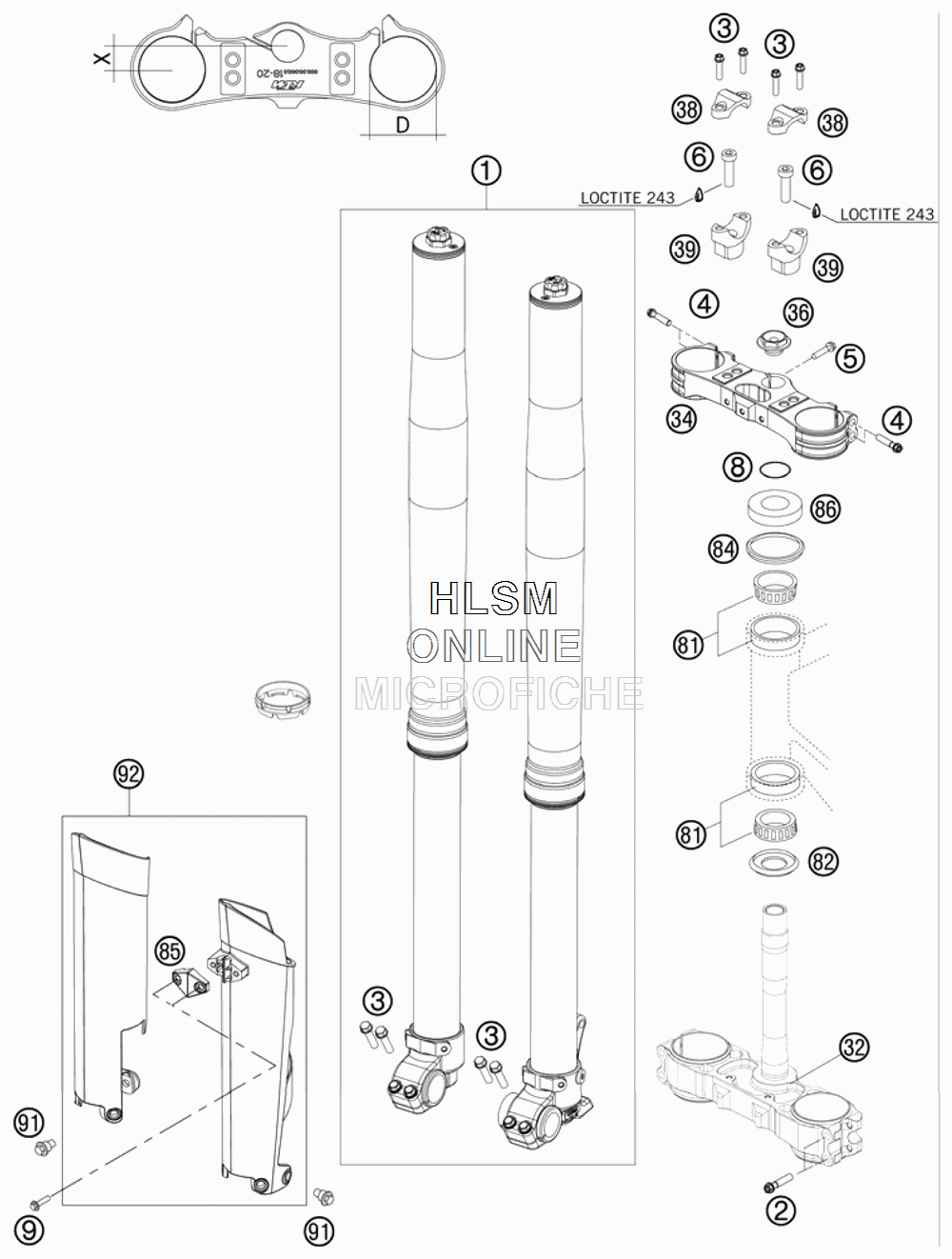

FRONT FORK TRIPLE CLAMP для Ktm 250 SX-F - 2010 года выпуска

  • №
    Артикул
    Название
  • 1*
    14187J2201 FORK KTM CC 250 SX/SX-F USA
    FORK KTM CC 250 SX/SX-F USA
  • 2*
    0025080506 HH COLLAR SCREW M8X50 TX40
    HH COLLAR SCREW M8X50 TX40
  • 3
    0025080256 HH COLLAR SCREW M8X25 TX40
    HH COLLAR SCREW M8X25 TX40
  • 4*
    0025080406 HH COLLAR SCREW M8X40 TX40
    HH COLLAR SCREW M8X40 TX40
  • 5
    0025080256S HH COLLAR SCREW M8X25 TX40
    HH COLLAR SCREW M8X25 TX40
  • 6
    0912100356 AH SCREW DIN6912-M10X35 10.9
    AH SCREW DIN6912-M10X35 10.9
  • 8
    0770025035 O-RING 25X3,55 NBR70
    O-RING 25X3,55 NBR70
  • 9
    0017060204 EJOT PT SCREW K60X20 ALU WS=6
    EJOT PT SCREW K60X20 ALU WS=6
  • 32*
    7720103202230 BOTT.FORK PLATE VMT. X=22MM BL
    BOTT.FORK PLATE VMT. X=22MM BL
  • 34*
    7720103402230 TOP TRIPLE CLAMP X=22MM BLACK
    TOP TRIPLE CLAMP X=22MM BLACK
  • 36
    54801036000 STEER.HEAD SCREW M20X1,5 WS=27
    STEER.HEAD SCREW M20X1,5 WS=27
  • 38
    59401038000 HANDLEBAR CLAMP 28MM 05
    HANDLEBAR CLAMP 28MM 05
  • 39
    59401039032 HANDLEB.SUPP. D=28MM H=32MM
    HANDLEB.SUPP. D=28MM H=32MM
  • 39
    59401039037 HANDLEB.SUPP. D=28MM H=37MM
    HANDLEB.SUPP. D=28MM H=37MM
  • 39
    59401039042 HANDLEB.SUPP. D=28MM H=42MM
    HANDLEB.SUPP. D=28MM H=42MM
  • 81
    54201081100 TAPERED ROLLER BEARING CPL.
    TAPERED ROLLER BEARING CPL.
  • 82
    54601084100 O-RING SUPPORT W. SEALING LIP
    O-RING SUPPORT W. SEALING LIP
  • 84
    54601184000 STEARING HEAD GASKET TOP
    STEARING HEAD GASKET TOP
  • 85
    7800108500030 CLAMP F.SPEED.CABLE D=6MM
    CLAMP F.SPEED.CABLE D=6MM
  • 86
    54201086000 STEERING HEAD COVER
    STEERING HEAD COVER
  • 91
    59001092050 SPECIAL SCREW M6X12,5 WS=8
    SPECIAL SCREW M6X12,5 WS=8
  • 92*
    7800109410030 FORK PROTECTION LE+RI BLACK
    FORK PROTECTION LE+RI BLACK
