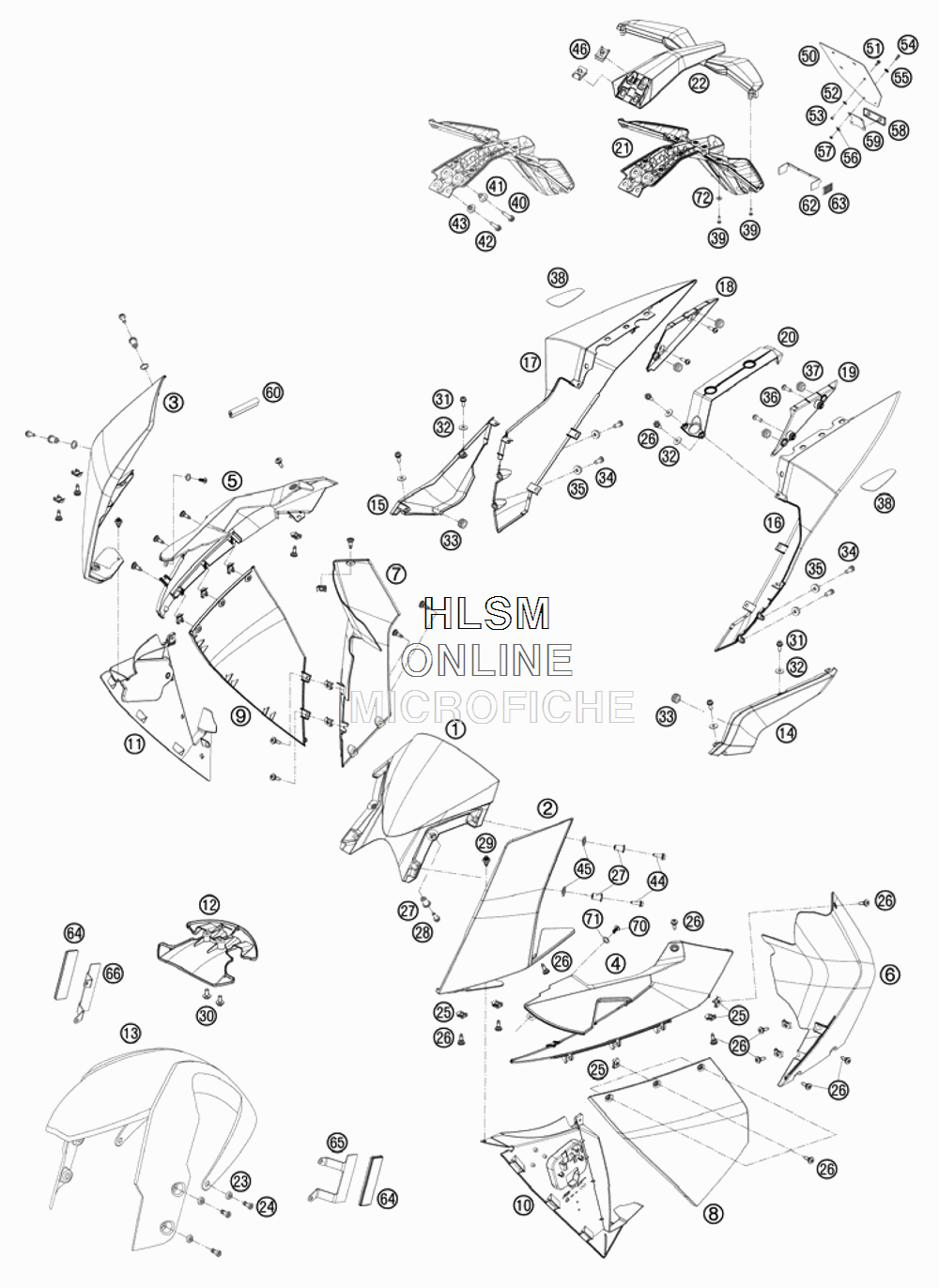

MASK FENDERS для Ktm 1190 RC8-R - 2010 года выпуска`
-
№АртикулНазвание
-
169108008000 FAIRING SCREEN HIGHFAIRING SCREEN HIGH
-
26900800100030A FR.FAIR.UP.PART L/S BLACKFR.FAIR.UP.PART L/S BLACK
-
36900800200030A FR.FAIR.UP.PART R/S BLACKFR.FAIR.UP.PART R/S BLACK
-
46900800300033A FR.FAIR.LO.PART L/S BLACKFR.FAIR.LO.PART L/S BLACK
-
56900800400033A FR.FAIR.LO.PART R/S BLACKFR.FAIR.LO.PART R/S BLACK
-
66900805200033B EXHAUST SHAFT L/S BL.MATTEXHAUST SHAFT L/S BL.MATT
-
76900805300033B EXHAUST SHAFT R/S BL.MATTEXHAUST SHAFT R/S BL.MATT
-
86900805000033A COOLER FAIRING L/S BLACK MATTCOOLER FAIRING L/S BLACK MATT
-
96900805100033A COOLER FAIRING R/S BLACK MATTCOOLER FAIRING R/S BLACK MATT
-
106900802210033 FRESH-AIR SHAFT L/S BL. MA.FRESH-AIR SHAFT L/S BL. MA.
-
116900802300033 FRESH-AIR SHAFT R/S BL. MA.FRESH-AIR SHAFT R/S BL. MA.
-
126900802110033 UP. FRESH-AIR SHAFT BLACK MA.UP. FRESH-AIR SHAFT BLACK MA.
-
136930801000049 FRONT FENDER CARBONFRONT FENDER CARBON
-
146900804300033A SIDE COVER L/S BLACK MATTSIDE COVER L/S BLACK MATT
-
156900804400033A SIDE COVER R/S BLACK MATTSIDE COVER R/S BLACK MATT
-
166900804100020A REAR FAIRING L/S WHITE BR.REAR FAIRING L/S WHITE BR.
-
176900804200020A REAR FAIRING R/S WHITE BR.REAR FAIRING R/S WHITE BR.
-
1869008039000 REAR LIGHT ADAPTER R/SREAR LIGHT ADAPTER R/S
-
1969008038000 REAR LIGHT ADAPTER L/SREAR LIGHT ADAPTER L/S
-
206900803100033 UPPER REAR END PANELUPPER REAR END PANEL
-
2169008016100 NUMBER PLATE LO. PART USANUMBER PLATE LO. PART USA
-
2269008015100 LICENSE PLATE BRACKET UP. PARTLICENSE PLATE BRACKET UP. PART
-
2361108045000 SPECIAL WASHERSPECIAL WASHER
-
24014580060166 CYL. SCREW DIN14580 M 6X16CYL. SCREW DIN14580 M 6X16
-
2569008021080 RANGE CHANGE METAL NUT M5RANGE CHANGE METAL NUT M5
-
2669008021060 SPECIAL SCREW M5X17SPECIAL SCREW M5X17
-
2760008008050 BLIND PLUG-IN NUT M5 WN 16ABLIND PLUG-IN NUT M5 WN 16A
-
280025050166 HH COLLAR SCREW M5X16 TX30HH COLLAR SCREW M5X16 TX30
-
2976503075000 SPREAD RIVET CPL. 6,2MMSPREAD RIVET CPL. 6,2MM
-
300024060136 HH COLLAR SCREW M6X13 TX30HH COLLAR SCREW M6X13 TX30
-
3158605083010 SCREW TORX M5X10 05SCREW TORX M5X10 05
-
3275008023000 WASHER REAR-UT D=14MMWASHER REAR-UT D=14MM
-
3331008060000 RUBBER SLEEVE D=8MM OPENRUBBER SLEEVE D=8MM OPEN
-
340025080206 HH COLLAR SCREW M8X20 TX40HH COLLAR SCREW M8X20 TX40
-
356900300405001 WASHER MOUNT. REAR FAIRINGWASHER MOUNT. REAR FAIRING
-
360081050161 EJOT PT SCREW K50X16 1451EJOT PT SCREW K50X16 1451
-
3769014078000 RUBBER SLEEVE 10X14X20RUBBER SLEEVE 10X14X20
-
3869007047050 PASSENGERґS SEAT PLATE KITPASSENGERґS SEAT PLATE KIT
-
390081040161 SCREW FOR PLASTIC K40X16 T20SCREW FOR PLASTIC K40X16 T20
-
400025060256 HH COLLAR SCREW M6X25 TX30HH COLLAR SCREW M6X25 TX30
-
4169007028000 COLLAR BUSH. 6,2X10X21X14MMCOLLAR BUSH. 6,2X10X21X14MM
-
420025060206 HH COLLAR SCREW M6X20 TX30HH COLLAR SCREW M6X20 TX30
-
4369008020000 BUSHING LICENSE PLATE BRACKETBUSHING LICENSE PLATE BRACKET
-
440025050206 HH COLLAR SCREW M5X20 TX30HH COLLAR SCREW M5X20 TX30
-
4569008008050 PLAIN WASHER PA 9,5X14X2PLAIN WASHER PA 9,5X14X2
-
4654603048100 RANGE CHANGE METAL NUT M6RANGE CHANGE METAL NUT M6
-
5060012081200 LICENCE FITTINGLICENCE FITTING
-
510024060156 HH COLLAR SCREW M6X15 TX30HH COLLAR SCREW M6X15 TX30
-
520021060003 WASHER DIN9021-A 6,4WASHER DIN9021-A 6,4
-
530985060003 SELF LOCK. NUT DIN0985-M 6SELF LOCK. NUT DIN0985-M 6
-
54966050163 OVAL HEAD SCREW DIN0966-M 5X16OVAL HEAD SCREW DIN0966-M 5X16
-
5540006006000 WASHER 6MMWASHER 6MM
-
5600125050003 WASHER DIN0125-A 5,3WASHER DIN0125-A 5,3
-
570985050003 SELF LOCKING NUT DIN0985-M 5SELF LOCKING NUT DIN0985-M 5
-
5858412080000 REFLECTOR REDREFLECTOR RED
-
5958412080050 BRACKET FOR REFLECTORBRACKET FOR REFLECTOR
-
6060114010070 EDGE PROTECTOR 14X9,5X66 MMEDGE PROTECTOR 14X9,5X66 MM
-
6262512081000 BRACKET SIDE REFLECTORBRACKET SIDE REFLECTOR
-
6316512180100 SIDE REFLECTOR RED REARSIDE REFLECTOR RED REAR
-
6460012080000 SIDE REFLECTOR YELLOWSIDE REFLECTOR YELLOW
-
6569012080050 BRACKET F. SIDE REFLECTOR L/SBRACKET F. SIDE REFLECTOR L/S
-
6669012080060 BRACKET F. SIDE REFLECTOR R/SBRACKET F. SIDE REFLECTOR R/S
-
700081060121 EJOT PT SCREW K60X12 1451EJOT PT SCREW K60X12 1451
-
7169008003050 WASHER PA 8,3X12X5WASHER PA 8,3X12X5
-
720021040003 WASHER DIN9021-A 4,3WASHER DIN9021-A 4,3
