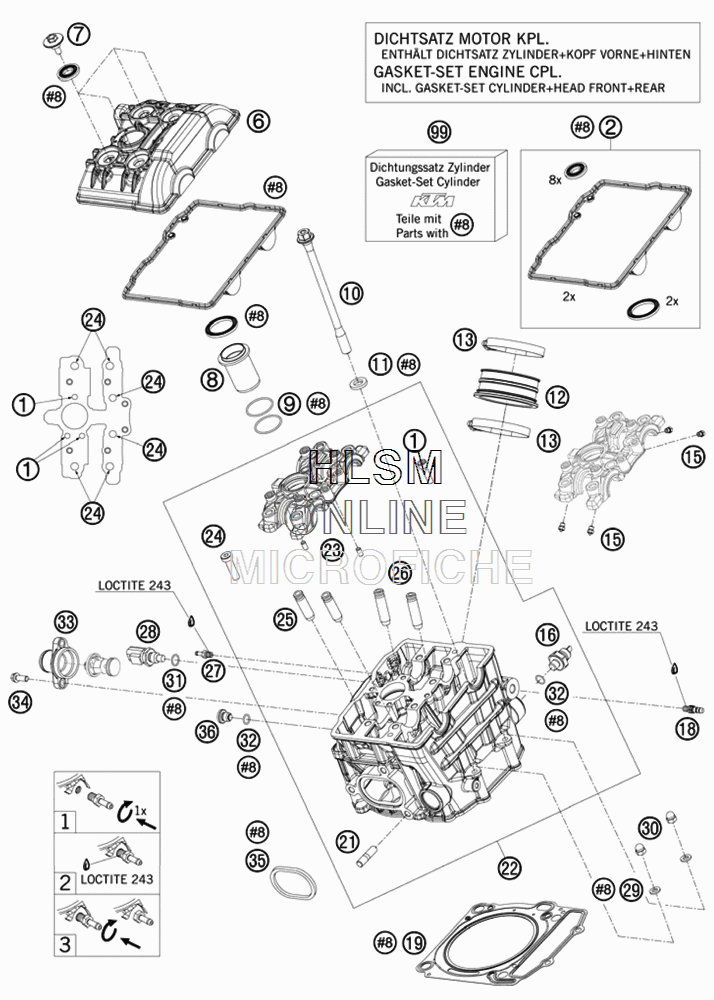

CYLINDER HEAD FRONT для Ktm 1190 RC8-R RED BULL - 2010 года выпуска

  • №
    Артикул
    Название
  • 1
    0912060255 AH SCREW DIN0912-M 6X25.9
    AH SCREW DIN0912-M 6X25.9
  • 2
    61236099100 VALVE COVER GASKET SET
    VALVE COVER GASKET SET
  • 6
    61236052000 VALVE COVER FRONT
    VALVE COVER FRONT
  • 7
    60036052020 COLLAR SCREW M 6 WS=10
    COLLAR SCREW M 6 WS=10
  • 8
    61236075000 INSERT SPARK-PLUG SHAFT
    INSERT SPARK-PLUG SHAFT
  • 9
    0770298178 O-RING 29,87X1,78 VITON
    O-RING 29,87X1,78 VITON
  • 10
    61236079000 CYLINDER HEAD SCREW
    CYLINDER HEAD SCREW
  • 11
    61236079050 WASHER,1X20X3
    WASHER,1X20X3
  • 12
    61236044000 RUBBERSLEEVE INTAKE FLANGE
    RUBBERSLEEVE INTAKE FLANGE
  • 13
    61236048000 HOSE CLAMP GEMI 66 / 1
    HOSE CLAMP GEMI 66 / 1
  • 15
    60030063050 OIL JET 50
    OIL JET 50
  • 16
    60038091100 OIL-PRESSURE SWITCH LC8
    OIL-PRESSURE SWITCH LC8
  • 18
    60036023100 VACUUM CONECTION M6/0,5MM
    VACUUM CONECTION M6/0,5MM
  • 19
    69130036000 CYLINDER HEAD GASKET MLS
    CYLINDER HEAD GASKET MLS
  • 21
    0835080165 STUD M 8X16 .9
    STUD M 8X16 .9
  • 22
    6123602010024 CYLINDER HEAD FRONT
    CYLINDER HEAD FRONT
  • 23
    0402050980 NEEDLE ROLLER DIN5402 5X9,8
    NEEDLE ROLLER DIN5402 5X9,8
  • 24
    0984080305 AH SCREW DIN7984-M 8X30.9
    AH SCREW DIN7984-M 8X30.9
  • 25
    61236026001 VALVE GUIDE EXHAUST
    VALVE GUIDE EXHAUST
  • 26
    61236025001 VALVE GIUDE INTAKE 6MM
    VALVE GIUDE INTAKE 6MM
  • 27
    61036023100 VACUUM CONECTION
    VACUUM CONECTION
  • 28
    60011252000 TEMPERAT.-SENSOR WATER LC8
    TEMPERAT.-SENSOR WATER LC8
  • 29
    0125060003 WASHER DIN0125-A 6,4
    WASHER DIN0125-A 6,4
  • 30
    61230045000 CAP NUT M6 STAINLESS STEEL
    CAP NUT M6 STAINLESS STEEL
  • 31
    0770100020 O-RING,00X2,00 SILCONE
    O-RING,00X2,00 SILCONE
  • 32
    0770090015 O-RING 9X1,5 NBR
    O-RING 9X1,5 NBR
  • 33
    61235019100 WATER CONNECTION CPL.
    WATER CONNECTION CPL.
  • 34
    0015060203 HH COLLAR SCREW M 6X20 WS=8
    HH COLLAR SCREW M 6X20 WS=8
  • 35
    69005005000 EXHAUST PIPE FLANGE GASKET
    EXHAUST PIPE FLANGE GASKET
  • 36
    77336056095 SCREW PLUG
    SCREW PLUG
  • 99
    61230097000 GASKET SET CYLINDER+HEAD F+R
    GASKET SET CYLINDER+HEAD F+R
