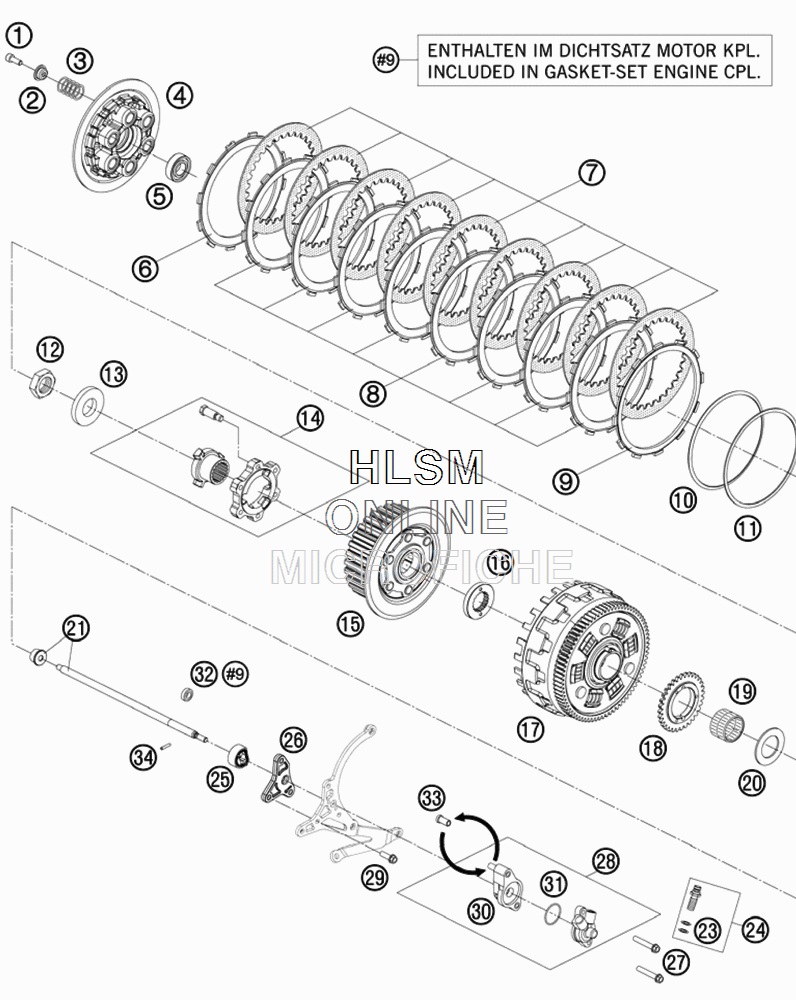

CLUTCH для Ktm 1190 RC8-R LTD AKRAPOV - 2010 года выпуска

  • №
    Артикул
    Название
  • 1
    0984060162 AH SCREW DIN7984-M 6X16
    AH SCREW DIN7984-M 6X16
  • 2
    61232006000 SPRING RETAINER STEPPED
    SPRING RETAINER STEPPED
  • 3
    69132005000 CLUTCH SPRING D2,7/35MM PINK
    CLUTCH SPRING D2,7/35MM PINK
  • 4
    61232003000 PRESSURE CAP
    PRESSURE CAP
  • 5
    0625060032 BALL BEARING 6003 JR2 C4
    BALL BEARING 6003 JR2 C4
  • 6
    61232111000 LINING DISK OUTSIDE 3MM
    LINING DISK OUTSIDE 3MM
  • 7
    69132010000 INTERMEDIATE DISK
    INTERMEDIATE DISK
  • 8
    61232011000 LINING DISK 3MM
    LINING DISK 3MM
  • 9
    61232012000 LINING DISK INSIDE 3,8MM
    LINING DISK INSIDE 3,8MM
  • 10
    61232034000 BELLEVILLE SPRING
    BELLEVILLE SPRING
  • 11
    61232035000 BEARING RING
    BEARING RING
  • 12
    0936220155 HEXAGON NUT DIN0936-M22X1,5 R.
    HEXAGON NUT DIN0936-M22X1,5 R.
  • 13
    0125220393 PULLEY 22X39X3MM
    PULLEY 22X39X3MM
  • 14
    60032080000 CLUTCH BOOSTER UNIT CPL.
    CLUTCH BOOSTER UNIT CPL.
  • 15
    61232002000 CLUTCH TAPPET CPL.
    CLUTCH TAPPET CPL.
  • 16
    60032021000 SECTION WASHER
    SECTION WASHER
  • 17
    69132001044 CLUTCH CAGE CPL.
    CLUTCH CAGE CPL.
  • 18
    60038001132 OIL PUMP GEAR WHEEL 32-T
    OIL PUMP GEAR WHEEL 32-T
  • 19
    0618303526 NEEDLE BUSH HK 30X35X26
    NEEDLE BUSH HK 30X35X26
  • 20
    60032020000 STOP DISK 30,2/50/2
    STOP DISK 30,2/50/2
  • 21
    61232054000 PUSH ROD CPL. 2-PARTS
    PUSH ROD CPL. 2-PARTS
  • 23
    0603100141 COPPER GASKET DIN7603-10X14X1
    COPPER GASKET DIN7603-10X14X1
  • 24
    50332062000 HOLLOW SCREW CPL. M 10X1
    HOLLOW SCREW CPL. M 10X1
  • 25
    61232069000 PUSH ROD GUIDE
    PUSH ROD GUIDE
  • 26
    61232068100 DISTANCE PLATE 7MM
    DISTANCE PLATE 7MM
  • 27
    0025060506 HH COLLAR SCREW M6X50 TX30
    HH COLLAR SCREW M6X50 TX30
  • 28
    60032061244 CYLINDER CPL. LC8
    CYLINDER CPL. LC8
  • 29
    0025060256 HH COLLAR SCREW M6X25 TX30
    HH COLLAR SCREW M6X25 TX30
  • 30
    60032061050 DISTANCE CLUTCH CONTR. CPL.
    DISTANCE CLUTCH CONTR. CPL.
  • 31
    60032065000 O-RING GASKET
    O-RING GASKET
  • 32
    0760091862 SHAFT SEAL RING 9X18X06 B-NBR
    SHAFT SEAL RING 9X18X06 B-NBR
  • 33
    61232061051 SLEEVE CLUTCH CONTR.
    SLEEVE CLUTCH CONTR.
  • 34
    0402031780 NEEDLE ROL.DIN5402 NRB 3X17,8
    NEEDLE ROL.DIN5402 NRB 3X17,8
